Engine Rear Cover Removal

ENGINE REAR COVER REMOVAL

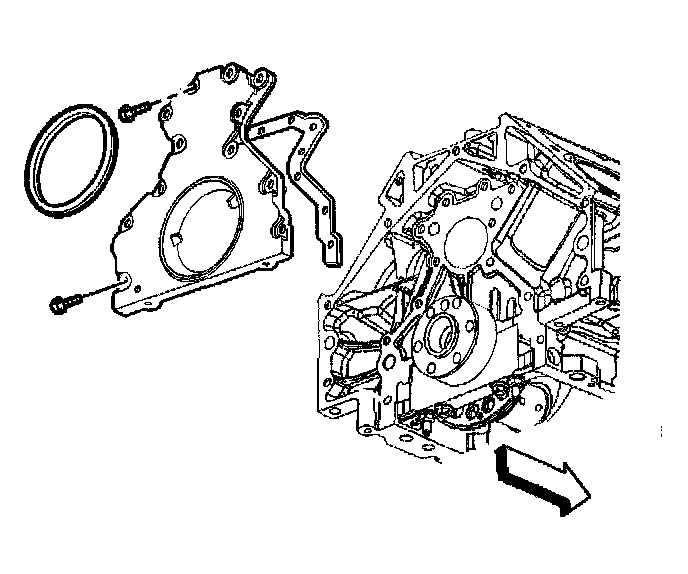

1. Remove the rear cover bolts.
2. Remove the rear cover and gasket.
3. Discard the rear cover gasket.

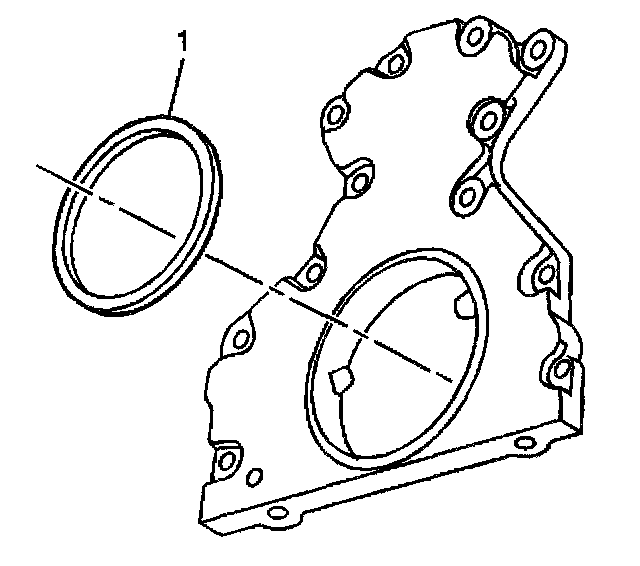

4. Remove the crankshaft rear oil seal (1) from the cover.
