Engine Rear Cover Clean and Inspect

ENGINE REAR COVER CLEAN AND INSPECT

Important: Do not reuse the crankshaft oil seal. Install a NEW crankshaft oil seal during assembly. Do not reuse the rear cover-to-engine block gasket. Install a NEW gasket during assembly.

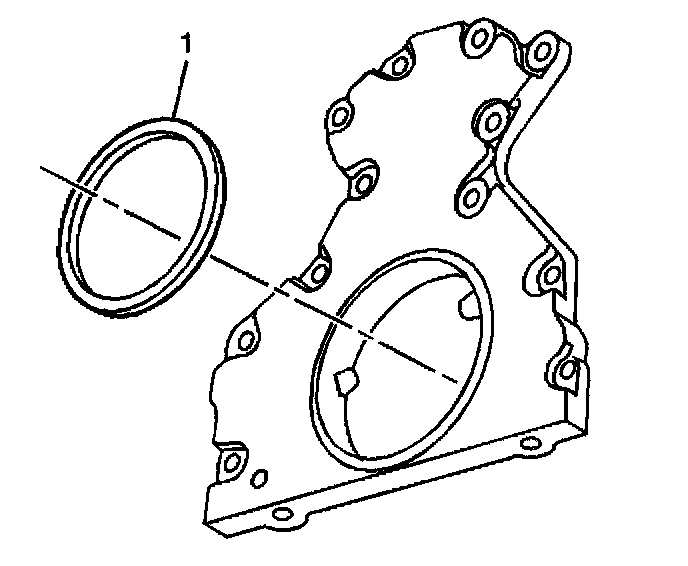

1. Remove the crankshaft oil seal (1) from the rear cover.
2. Clean the cover in solvent. Remove the sealant from the cover oil pan surface.
Refer to Replacing Engine Gaskets.

CAUTION: Wear safety glasses in order to avoid eye damage.

3. Dry the cover with compressed air.
4. Inspect the gasket sealing surfaces for excessive scratches or gouging.
5. Inspect the cover-to-oil pan threaded bolt holes for damaged threads or debris.
6. Inspect the crankshaft oil seal mounting bore for damage.
