Engine Front Cover Removal

ENGINE FRONT COVER REMOVAL

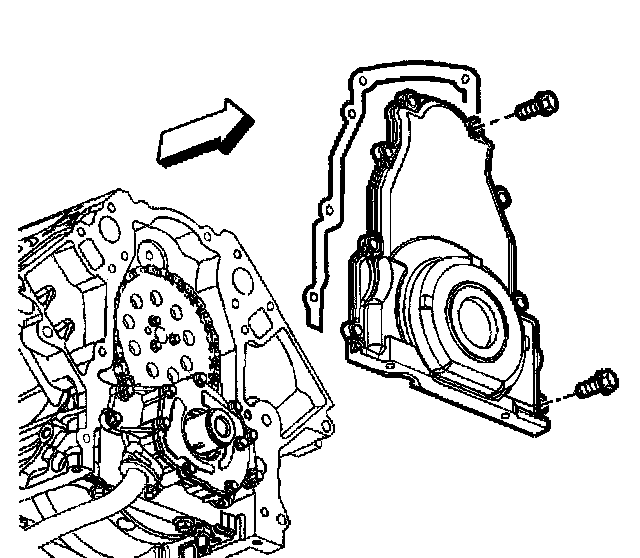

1. Remove the front cover bolts.
2. Remove the front cover and gasket.
3. Discard the front cover gasket.

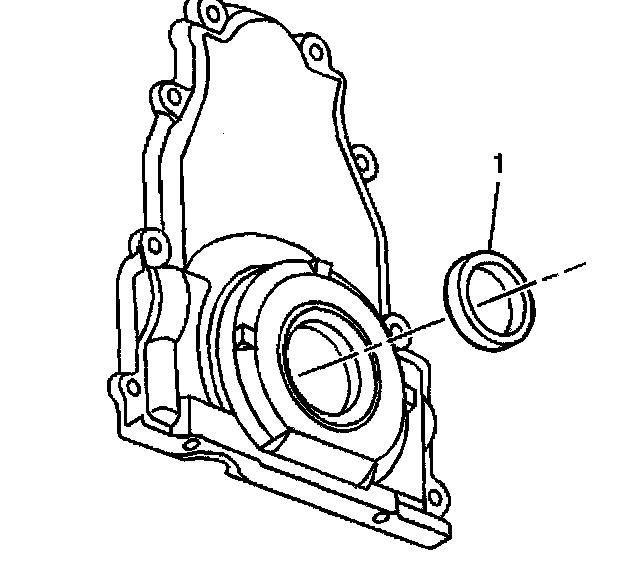

4. Remove the crankshaft front oil seal (1) from the cover.
