ENGINE FLYWHEEL CLEAN AND INSPECT





1. Clean the flywheel in solvent.
2. Dry the flywheel with compressed air.

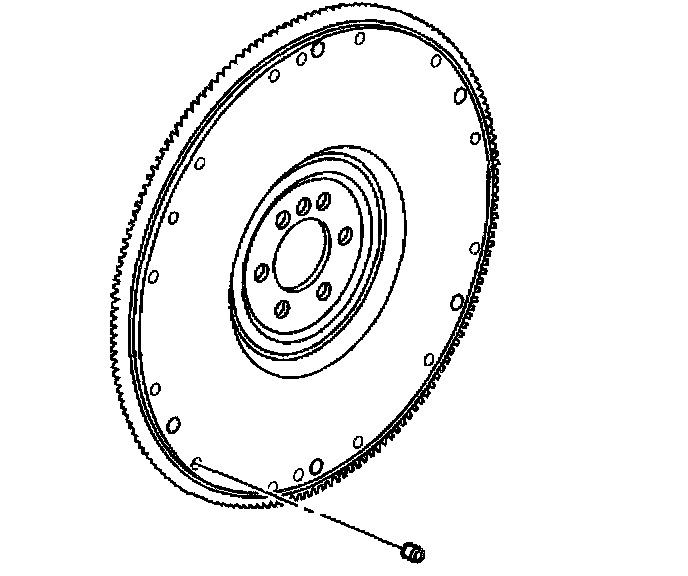

3. Inspect the manual transmission flywheel for loose or improperly installed balance weights (if applicable).
A properly installed balance weight should be installed until flush or below flush with the face of the flywheel.





4. Inspect the manual transmission flywheel for the following:

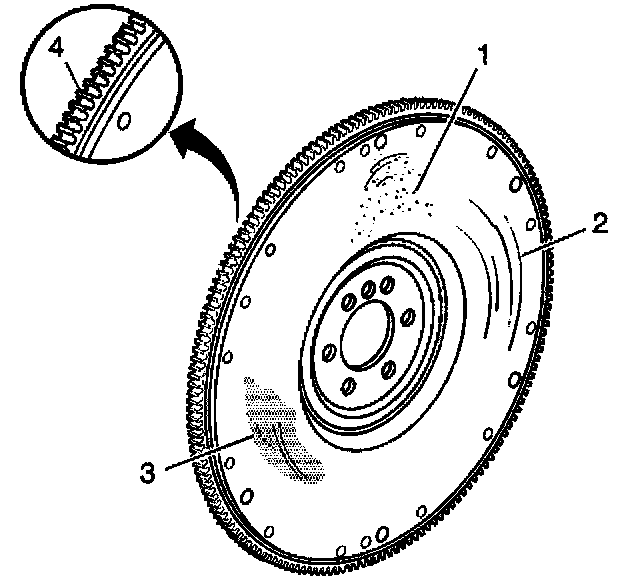

^ Pitted surfaces (1)
^ Grooves or scoring (2)
^ Rusted surface (3)
^ Damaged ring gear teeth (4)
^ Loose or improperly positioned ring gear
The ring gear has an interference fit onto the flywheel and should be positioned completely against the flange of the flywheel.
^ Missing, bent, or damaged pressure plate locating pins
The two locating pins are installed into the flywheel and spaced 170 degrees apart.





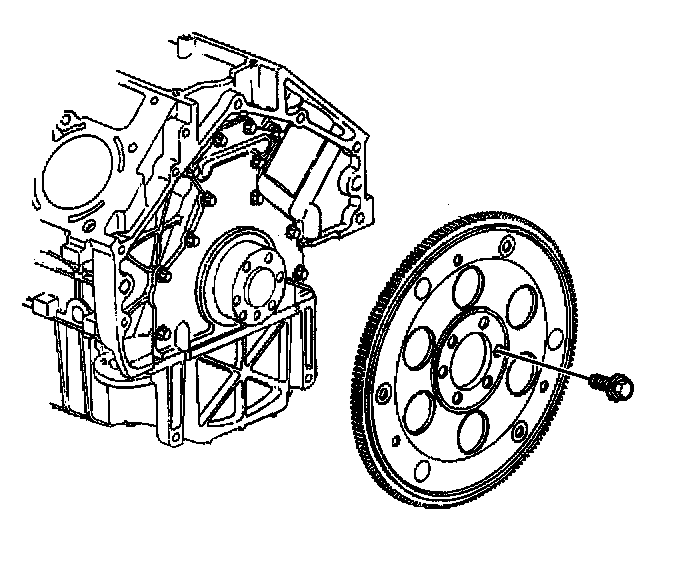

5. Inspect the automatic transmission flywheel for the following:
^ Damaged ring gear teeth
^ Stress cracks around the flywheel-to-crankshaft bolt hole locations

IMPORTANT: Do not attempt to repair the welded areas that retain the ring gear to the flywheel plate. Install a new flywheel.

^ Welded areas that retain the ring gear onto the flywheel for cracking
