Cylinder Head Removal (Left Side)

CYLINDER HEAD REMOVAL (LEFT SIDE)
1. Remove the spark plugs from the cylinder head.

IMPORTANT: The M11 cylinder head bolts are NOT reusable. Install NEW M11 cylinder head bolts during assembly.

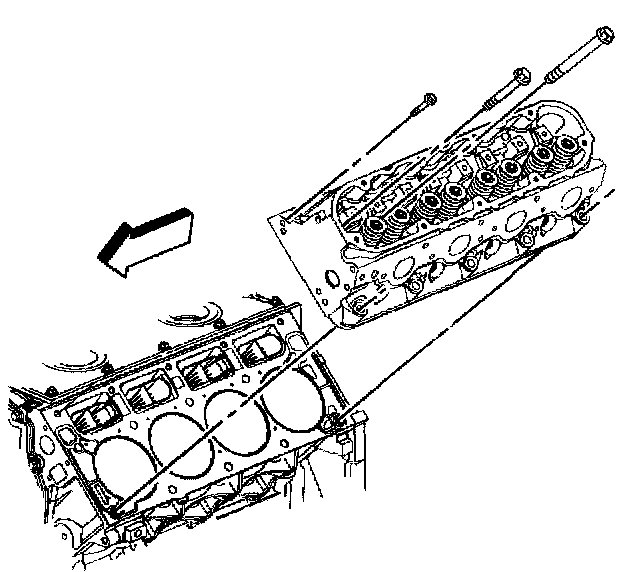

2. Remove the cylinder head bolts.

NOTICE: After removal, place the cylinder head on two wood blocks to prevent damage.





3. Remove the cylinder head.

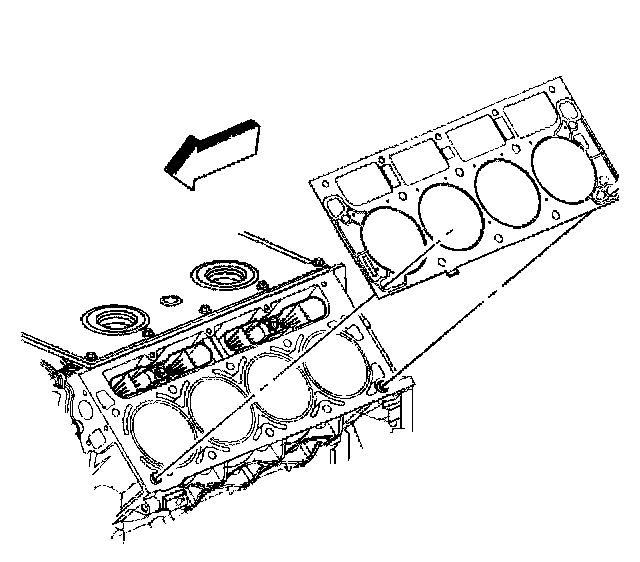

4. Remove the gasket.
5. Discard the gasket.
6. Discard the M11 cylinder head bolts.
