Cylinder Head Disassemble

CYLINDER HEAD DISASSEMBLE

^ Tools Required
- J8062 Valve Spring Compressor

IMPORTANT: Remove the spark plugs from the cylinder head with the components at room temperature.

Mark, organize, or sort the cylinder head components for assembly. Return the components to their original location during assembly.

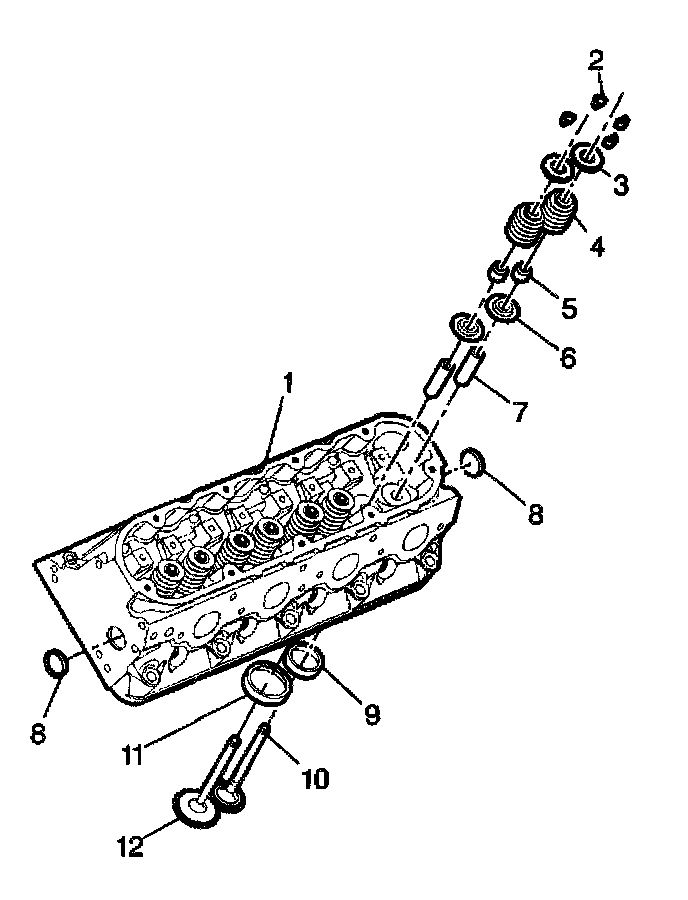

Do not remove the cylinder head valve guides (7), coolant core plugs (8), or valve seats (9), unless service is required.

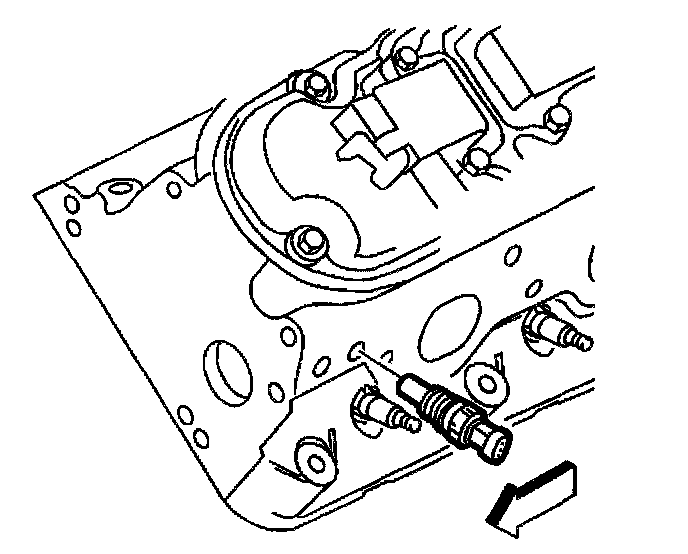

1. Remove the spark plugs from the cylinder heads.

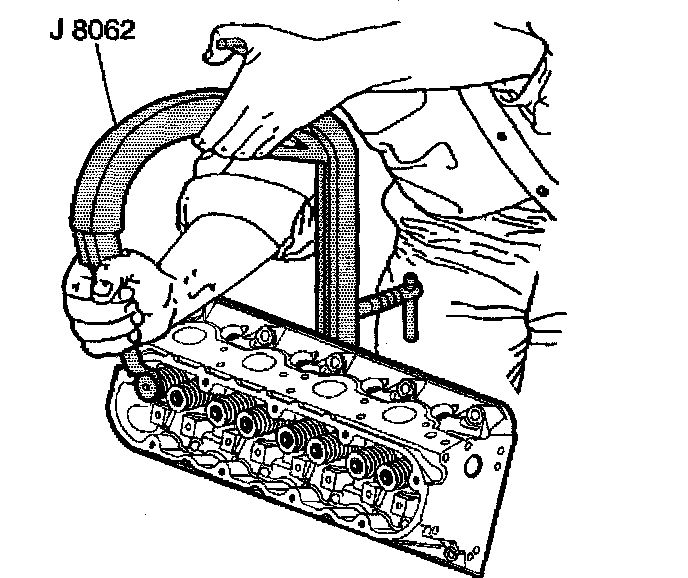

2. Use the J8062 in order to compress the valve spring (4).

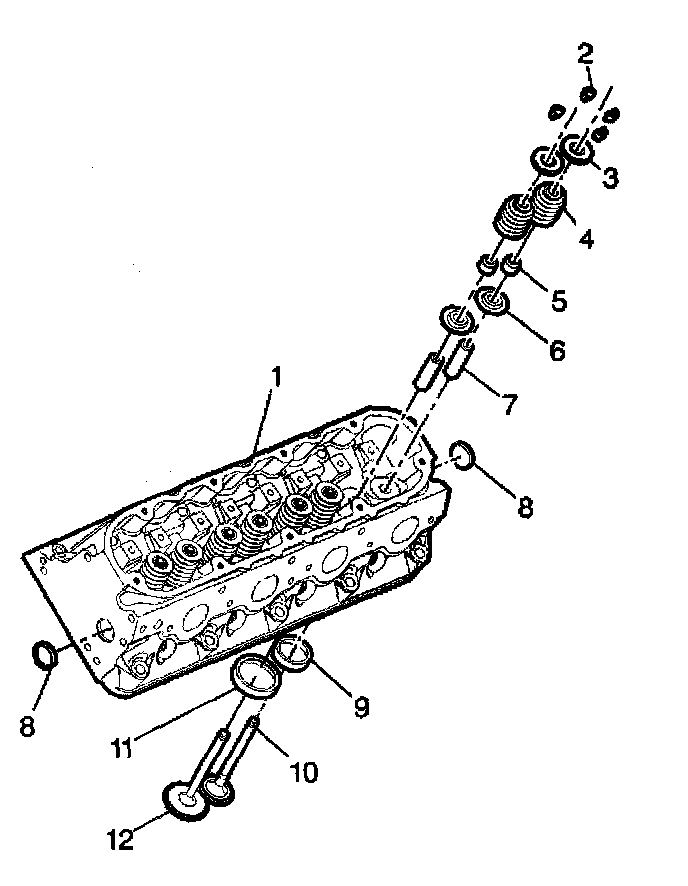

3. Remove the valve stem keys (2).
4. Remove the valve spring cap (3).
5. Remove the valve spring (4).
6. Remove the valves (10 and 12).
7. Remove the valve stem oil seal (5).
8. Remove the valve spring shim (6).
Refer to Separating Parts.





9. Remove the coolant sensor from the left cylinder head (if required).
