Oil Pump: Service and Repair

REMOVAL PROCEDURE

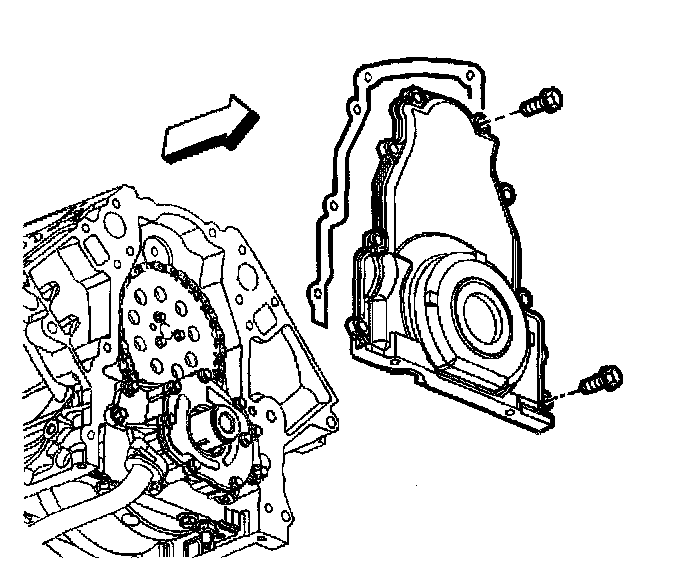

1. Remove the engine front cover.

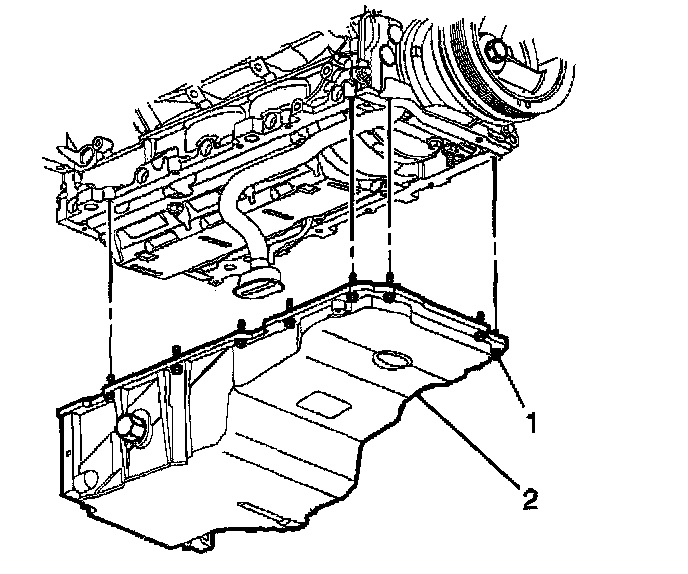

2. Remove the engine oil pan (2).
3. Remove the oil pump, pump screen and deflector.

INSTALLATION PROCEDURE
1. Install the oil pump, pump screen and deflector.

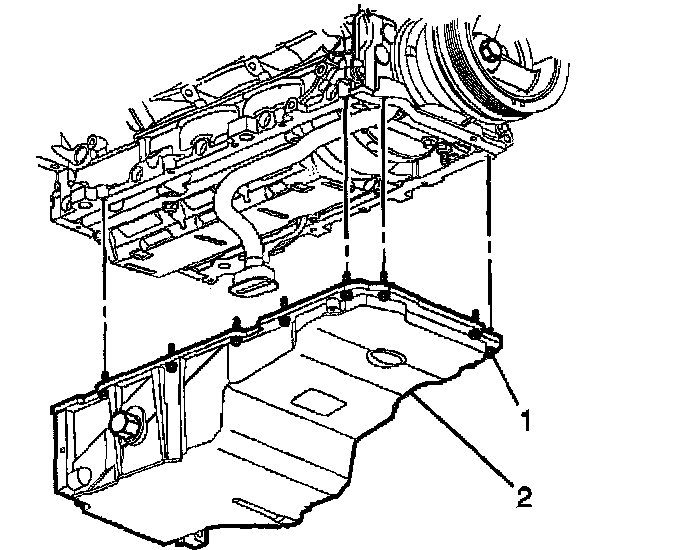

2. Install the engine oil pan (2).

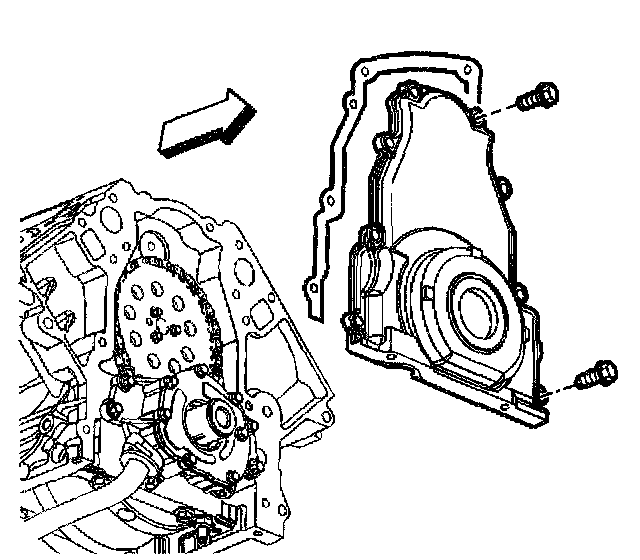

3. Install the engine front cover.
