Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

REMOVAL PROCEDURE

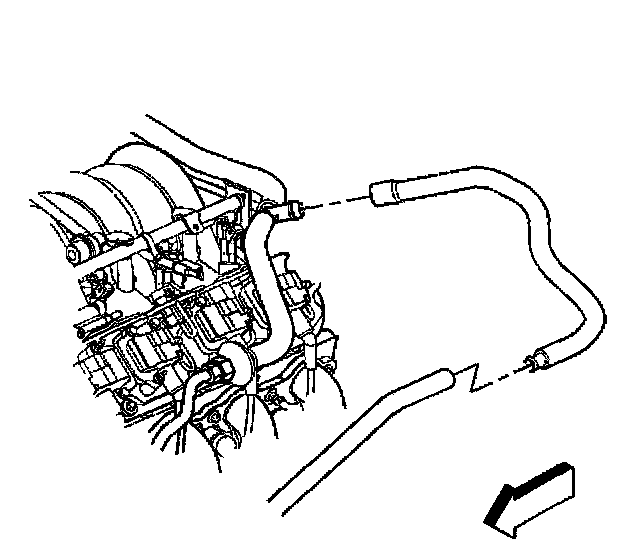

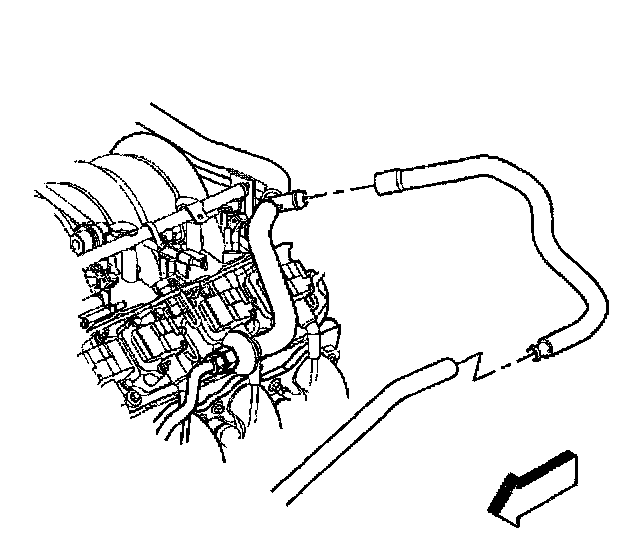

1. Disconnect the secondary Air Injection (AIR) pump hose from the check valve hose.

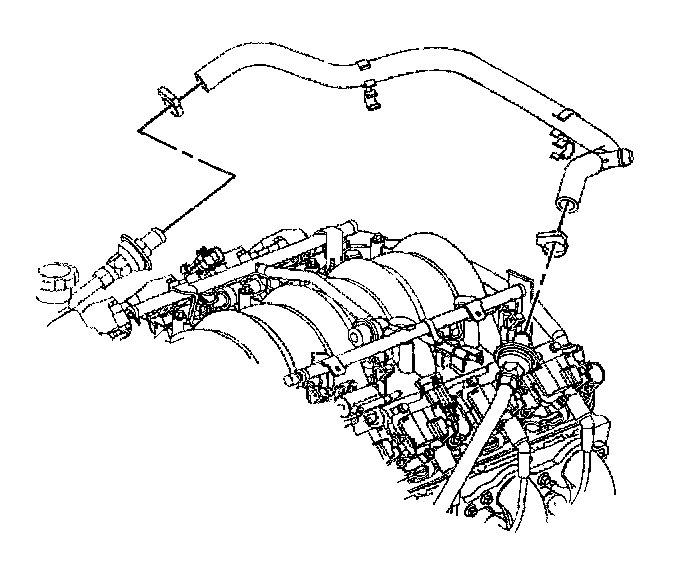

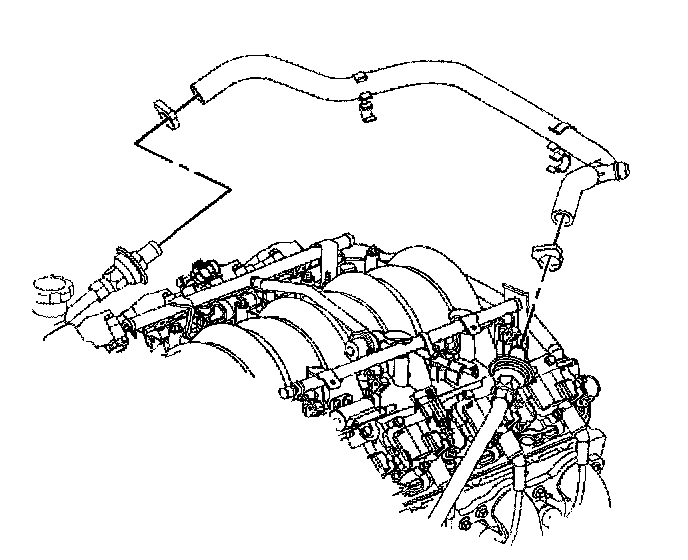

2. Remove the AIR valve hose clamps and hose.
3. Remove the number 4 and 6 spark plugs wires.

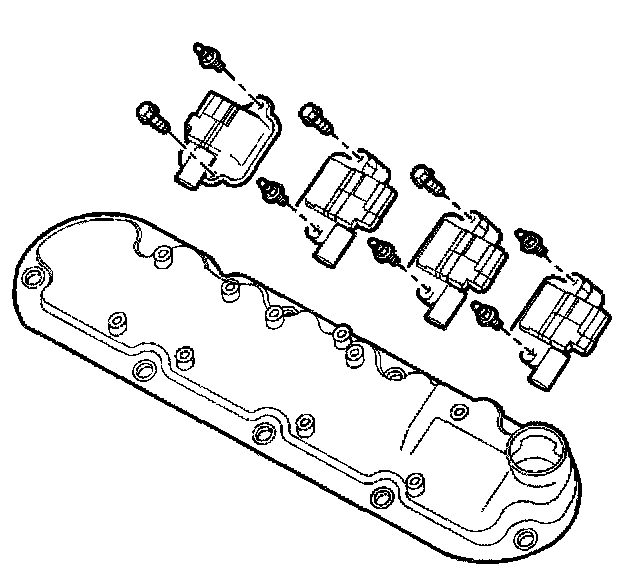

4. Remove the number 4 and 6 ignition coils from the coil bracket.

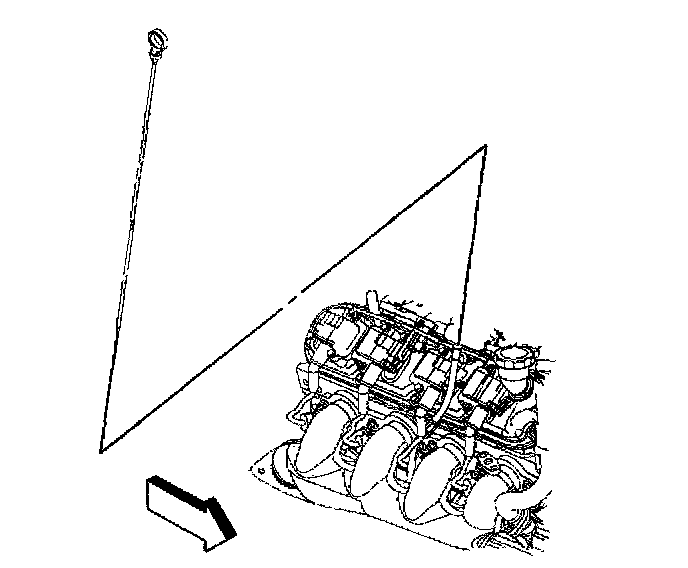

5. Remove the oil level indicator from the tube.

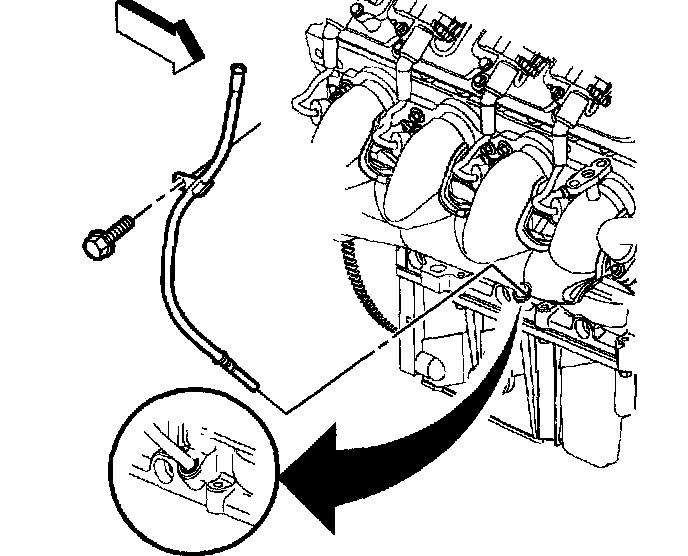

6. Remove the oil level indicator tube bolt.
7. Remove the indicator tube from the engine block.
8. Remove the O-ring from the tube.

INSTALLATION PROCEDURE
1. Clean the indicator tube.
2. If the O-ring seal is damaged, install a new O-ring to the tube.

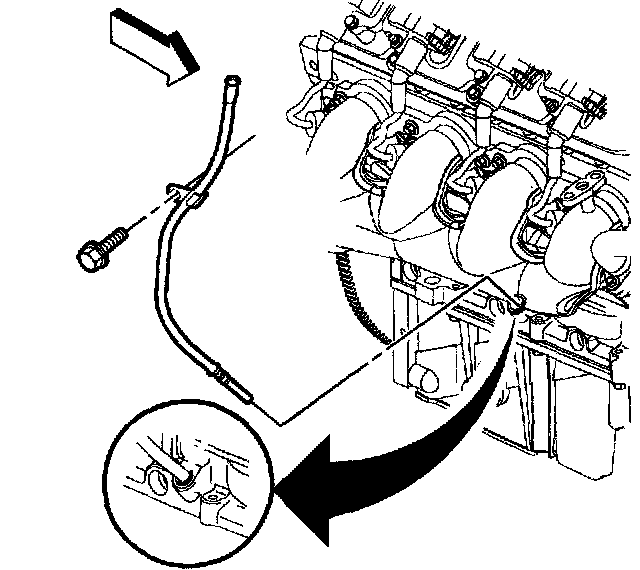

3. Install the oil level indicator tube.
4. Rotate the tube into the proper position.

NOTICE: Refer to Fastener Notice in Service Precautions.

5. Install the oil level indicator tube bolt.
^ Tighten the oil level indicator tube bracket bolt to 25 Nm (18 ft. lbs.).

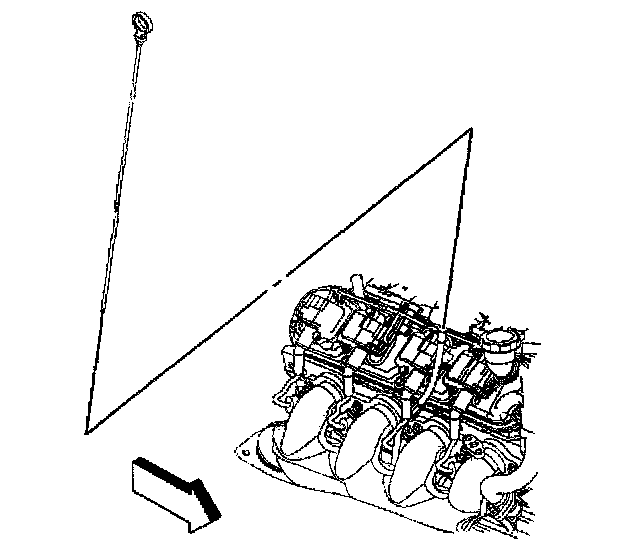

6. Install the indicator to the tube.

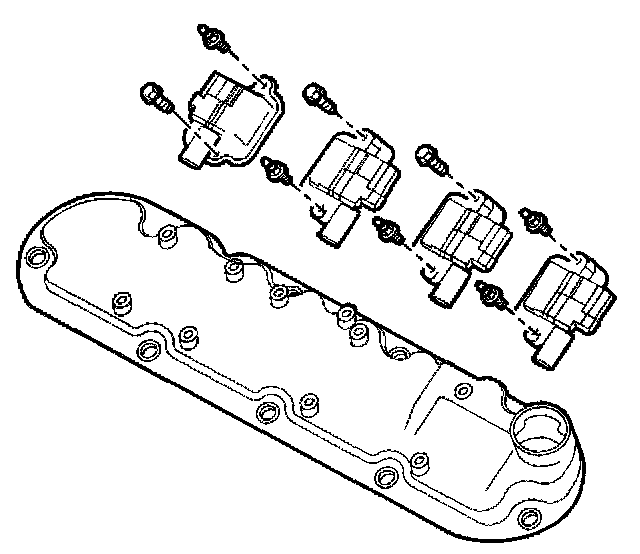

7. Install the number 4 and 6 ignition coils to the coil bracket.
^ Tighten the ignition coil bolts to 12 Nm (106 inch lbs.).
8. Install the number 4 and 6 spark plug wires.





9. Install the AIR valve hose and clamps.





10. Connect the AIR pump hose to the check valve hose.
