Engine Mount Replacement (Right Side)

REMOVAL PROCEDURE

^ Tools Required
- J41044 Engine Support Adapters
- J42451 Engine Support Adapter Kit
- J28467-B Universal Support Fixture
- J36462-A Engine Support Adapter Leg

Right Side





1. Support the engine using the J42451,J28467-B and the J36462-A.

NOTICE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.

2. Raise and suitably support the vehicle.
3. Remove the starter motor.

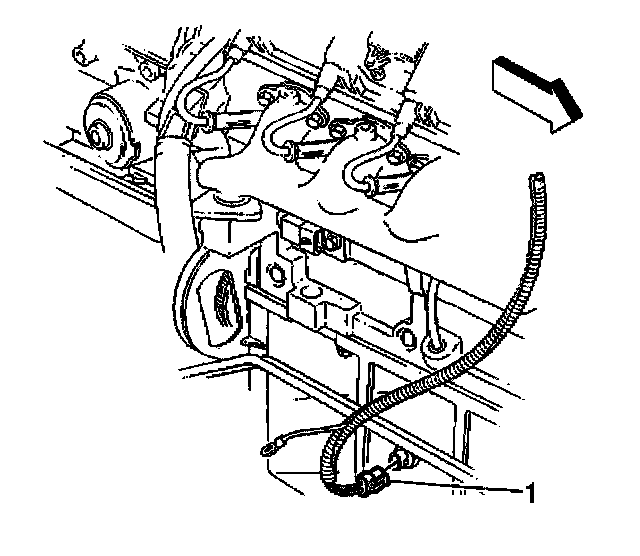

4. Disconnect the low oil level sensor electrical connector (1).

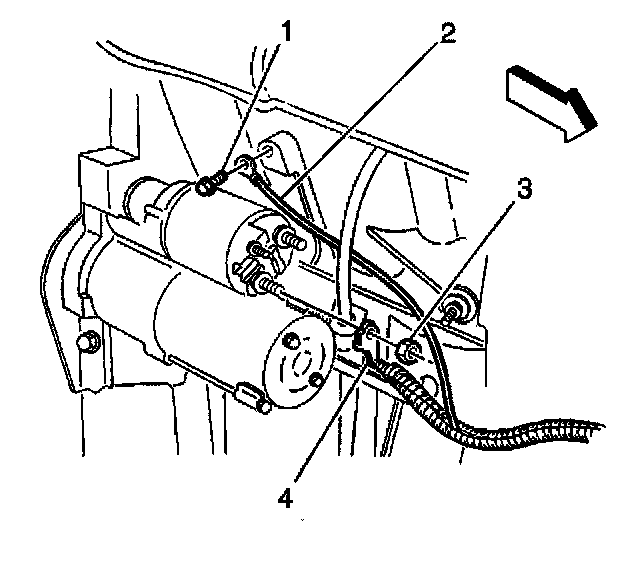

5. Remove the negative lead bolt (1) and lead (2) from the engine block.

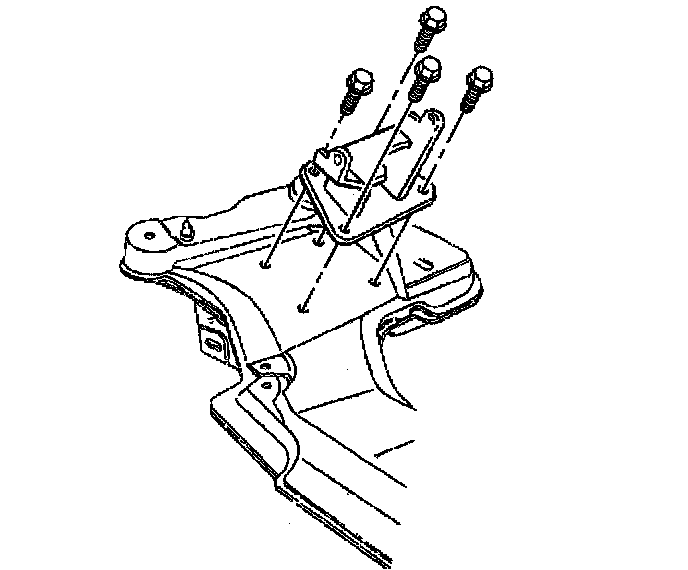

6. Remove the engine mount bracket to crossmember bolts.
7. Lower the vehicle.
8. Raise the right side of the engine with the support fixture.
9. Raise and suitably support the vehicle.

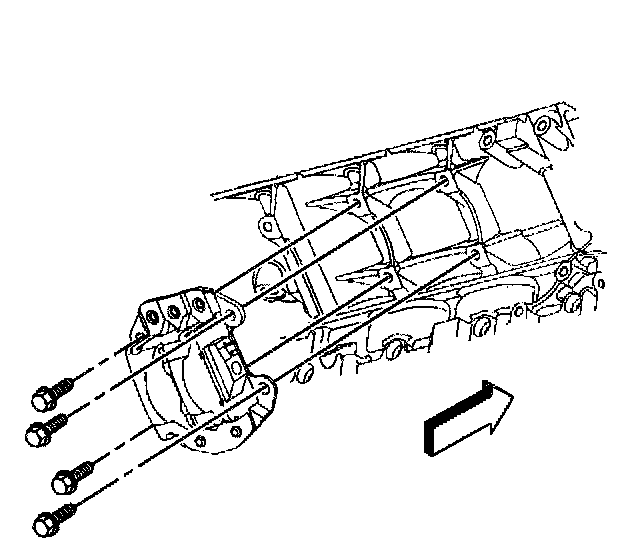

10. Remove the engine mount bracket to block bolts.
11. Remove the engine mount from the vehicle.
12. Separate the upper and lower mount on the bench.

INSTALLATION PROCEDURE
1. Loosely install the upper and lower mount together on the bench.





2. Install the engine mount to the vehicle.

NOTICE: Refer to Fastener Notice in Service Precautions.

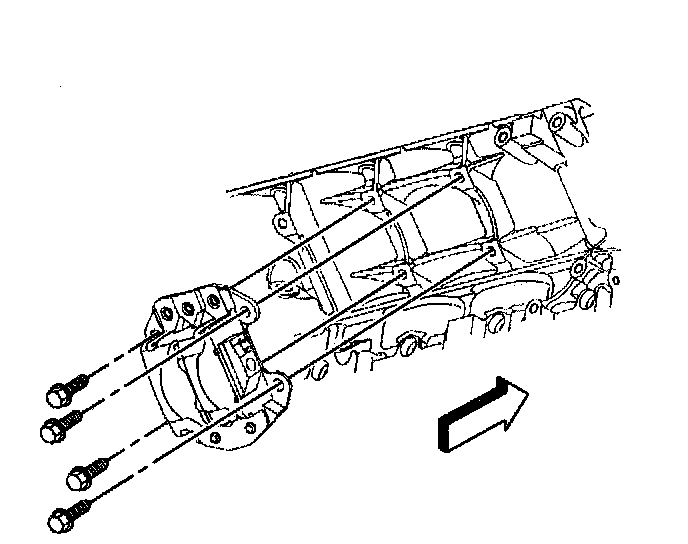

3. Install the engine mount bracket to block bolts.
^ Tighten the engine mount bracket to block bolts to 50 Nm (37 ft. lbs.).
4. Lower the vehicle.
5. Lower the right side of the engine.
6. Raise and suitably support the vehicle.

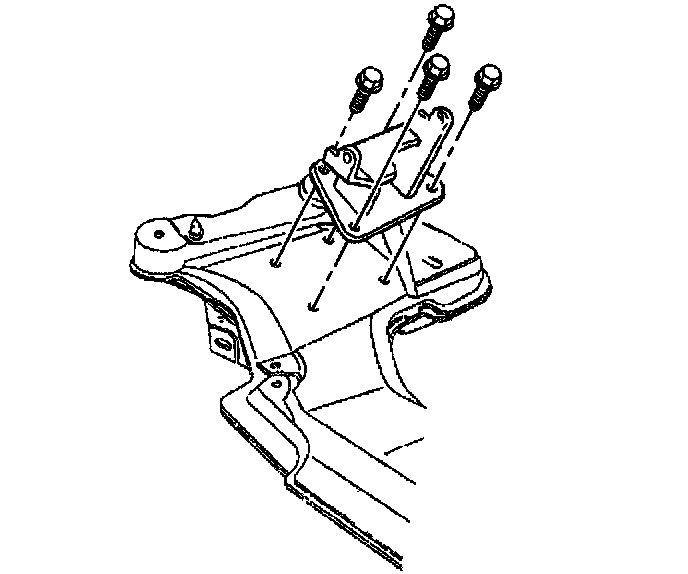

7. Install the engine mount bracket to crossmember bolts.
^ Tighten the engine mount bracket to crossmember bolts to 58 Nm (43 ft. lbs.).
8. Tighten the engine mount through bolt and mount nut.
^ Tighten the through bolt to 95 Nm (70 ft. lbs.).
^ Tighten the engine mount nut to 80 Nm (59 ft. lbs.).

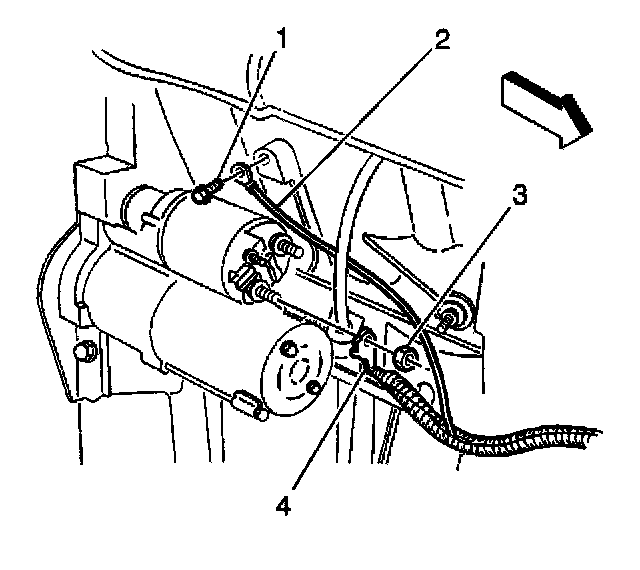

9. Install the negative lead (2) and bolt (1) to the engine block.
^ Tighten the negative lead bolt (1) to the engine block to 32 Nm (24 ft. lbs.).

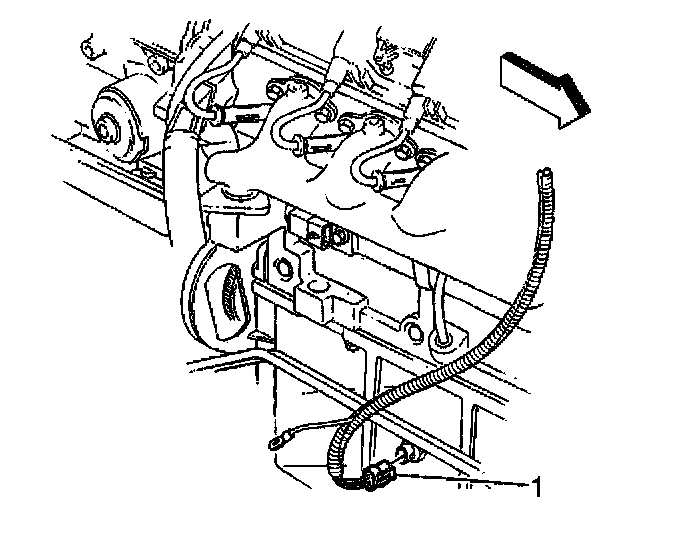

10. Connect the low oil level sensor electrical connector (1).
11. Install the starter motor.
12. Lower the vehicle.
