Engine Mount Replacement (Left Side)

REMOVAL PROCEDURE

^ Tools Required
- J41044 Engine Support Adapters
- J42451 Engine Support Adapter Kit
- J28467-B Universal Support Fixture
- J36462-A Engine Support Adapter Leg

NOTICE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.

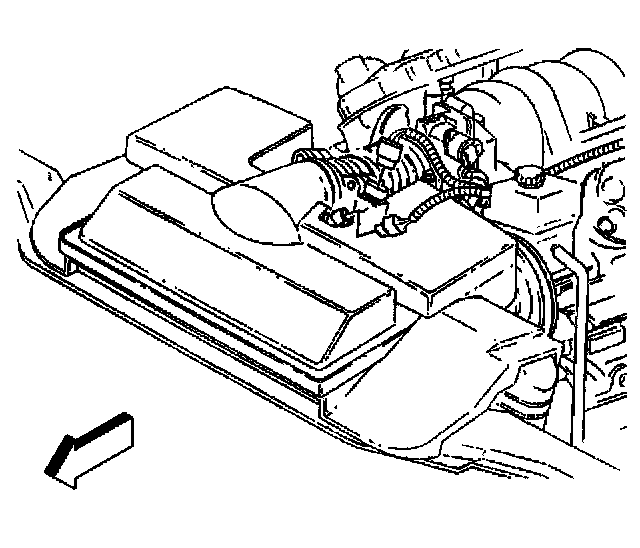

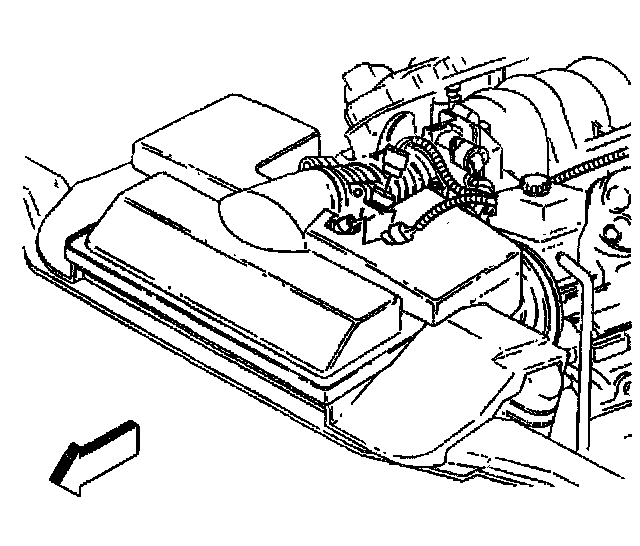

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector at the duct.
2. Disconnect the Mass Airflow (MAF) sensor electrical connector at the duct.

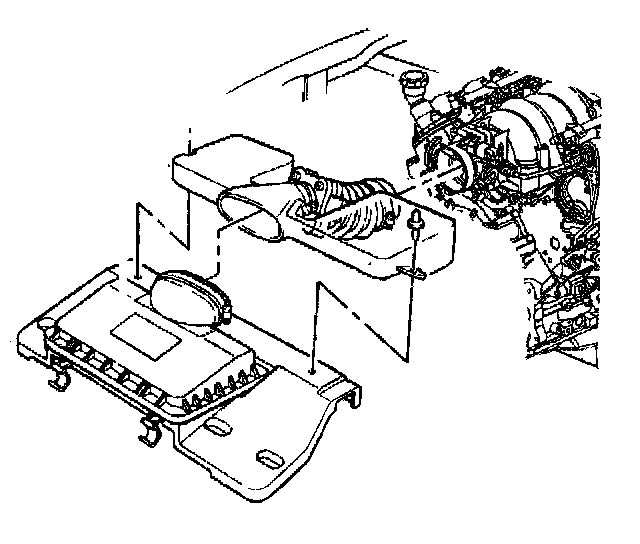

3. Remove the air intake duct from the throttle body and the air cleaner box.
4. Support the engine using the J4245 1,J28467-B, and the J36462-A.
5. Raise and suitably support the vehicle.
6. Remove the left oxidation catalytic converter.

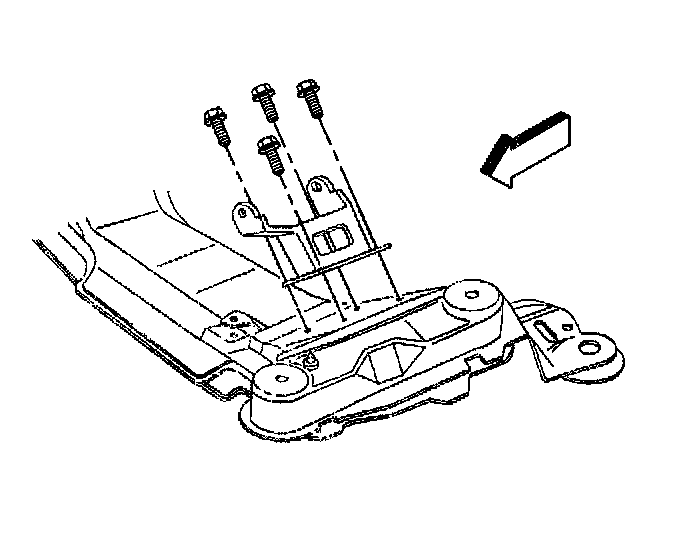

7. Remove the engine mount bracket to crossmember bolts.
8. Lower the vehicle.
9. Raise the left side of the engine with the support fixture.
10. Raise and suitably support the vehicle.

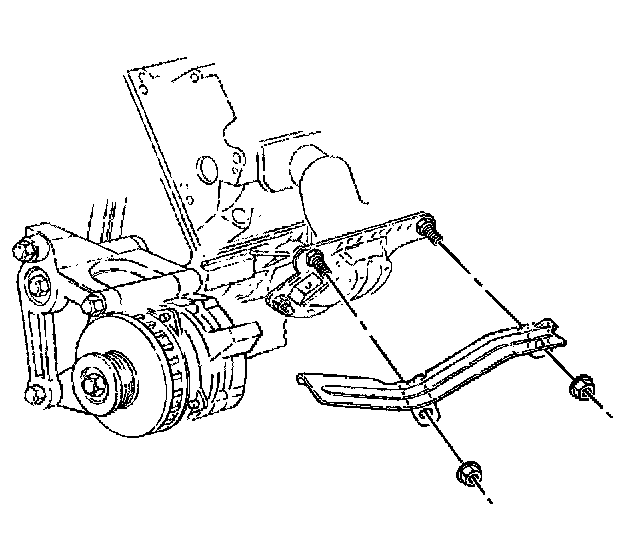

11. Remove the engine mount heat shield nuts.
12. Remove the engine mount heat shield.

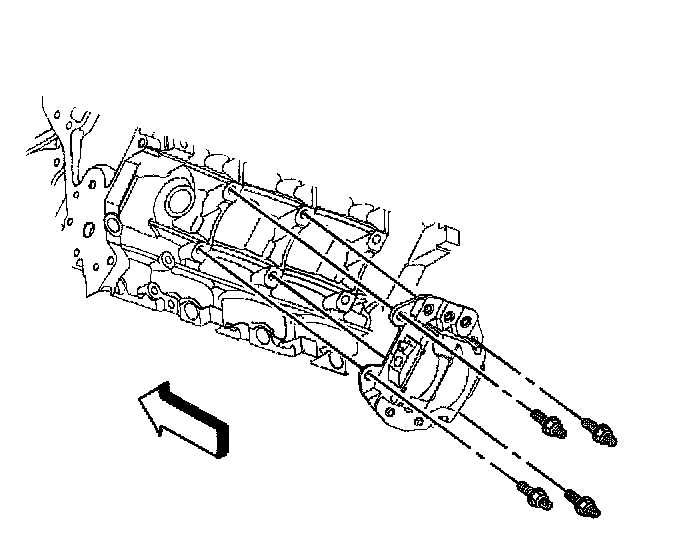

13. Remove the engine mount bracket to block studs.
14. Remove the engine mount from the vehicle.
15. Separate the upper and lower mount on the bench.

INSTALLATION PROCEDURE





1. Loosely install the upper and lower mount together on the bench.
2. Install the engine mount to the vehicle.

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the engine mount bracket to block studs.
^ Tighten the engine mount bracket to block studs to 50 Nm (37 ft. lbs.).

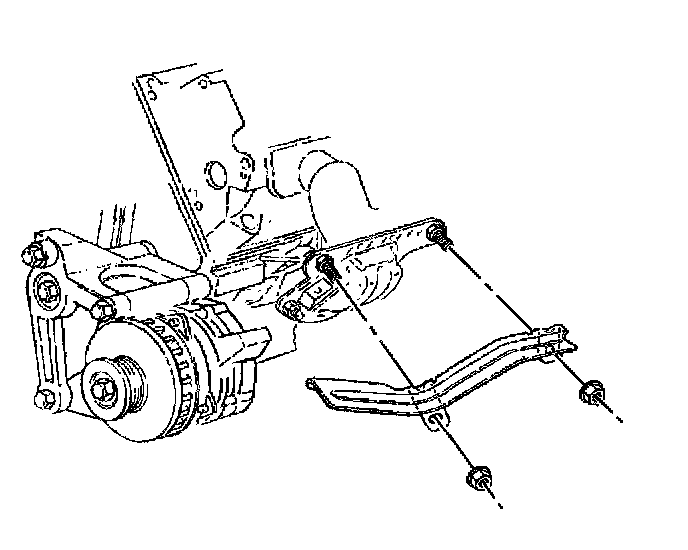

4. Install the engine mount heat shield.
5. Install the engine mount heat shield nuts.
^ Tighten the engine mount heat shield nuts to 10 Nm (89 inch lbs.).
6. Lower the vehicle.
7. Lower the right side of the engine.
8. Raise and suitably support the vehicle.

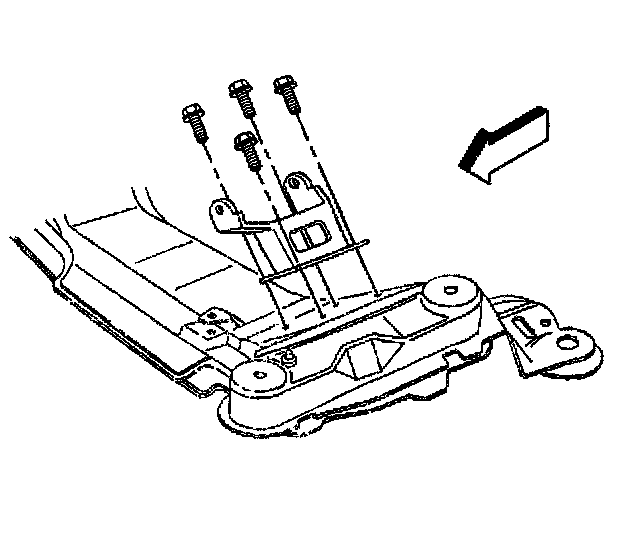

9. Install the engine mount bracket to crossmember bolts.
^ Tighten the engine mount bracket to crossmember bolts to 58 Nm (43 ft. lbs.).
10. Tighten the engine mount through bolt and mount nut.
^ Tighten the through bolt to 95 Nm (70 ft. lbs.).
^ Tighten the engine mount nut to 80 Nm (59 ft. lbs.).
11. Install the left oxidation catalytic converter.
12. Lower the vehicle.

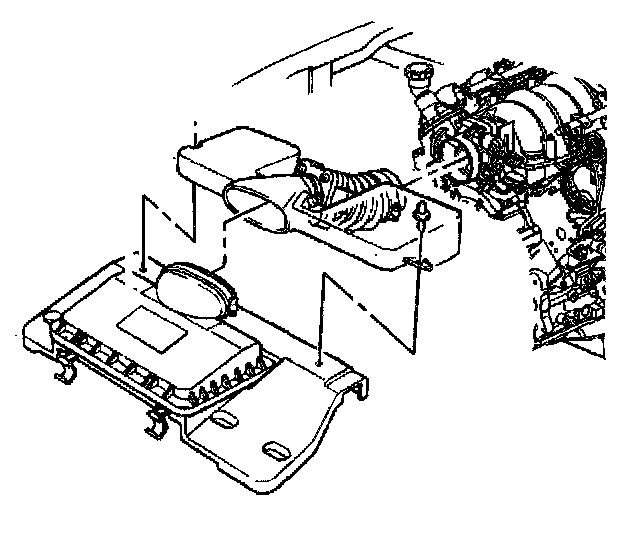

13. Install the air intake duct to the throttle body and the air cleaner box.





14. Connect the IAT sensor electrical connector.
15. Connect the MAF sensor electrical connector.
