Drive Belt Tensioner Replacement (Accessory)

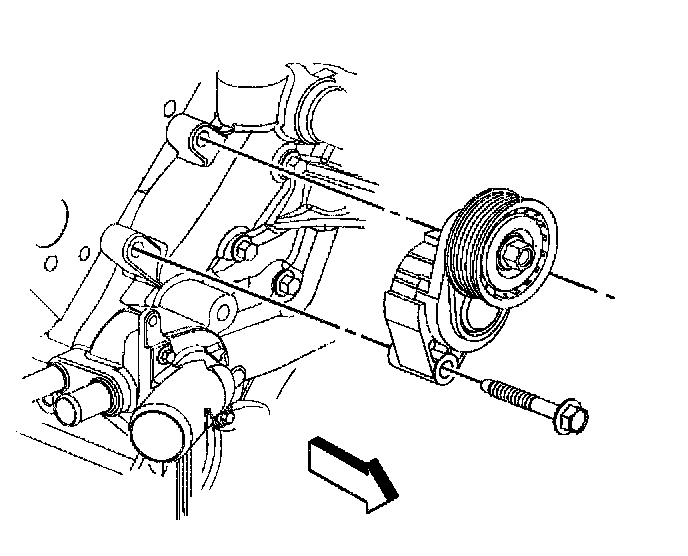

REMOVAL PROCEDURE
1. Remove the drive belt.
2. Remove the drive belt tensioner bolts.





3. Remove the drive belt tensioner.

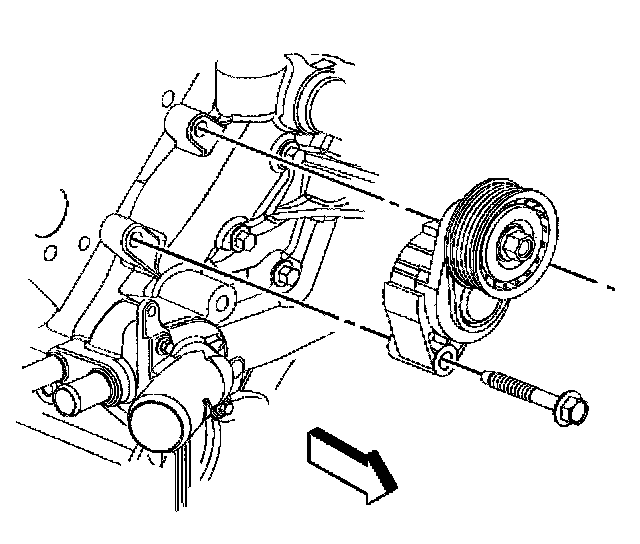

INSTALLATION PROCEDURE





1. Install the drive belt tensioner.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolts.
^ Tighten the drive belt tensioner bolts to 50 N.m (37 lb ft).
3. Install the drive belt.
