Valve Rocker Arm Cover Replacement - Right

REMOVAL PROCEDURE

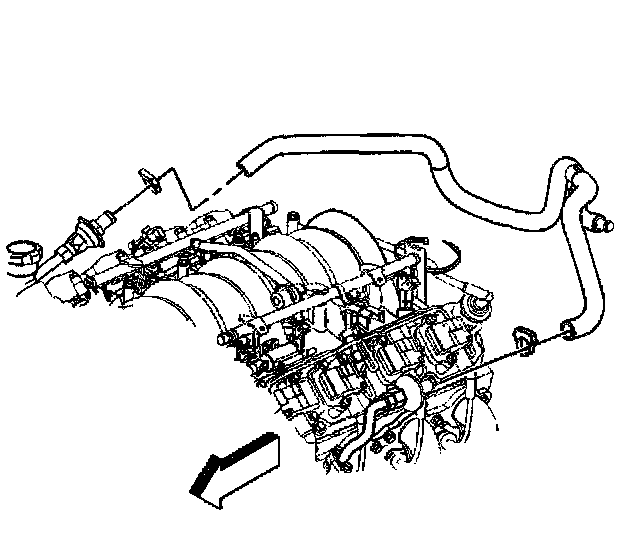

1. Remove the Air Injection Reaction (AIR) hose clamps and remove the hose.

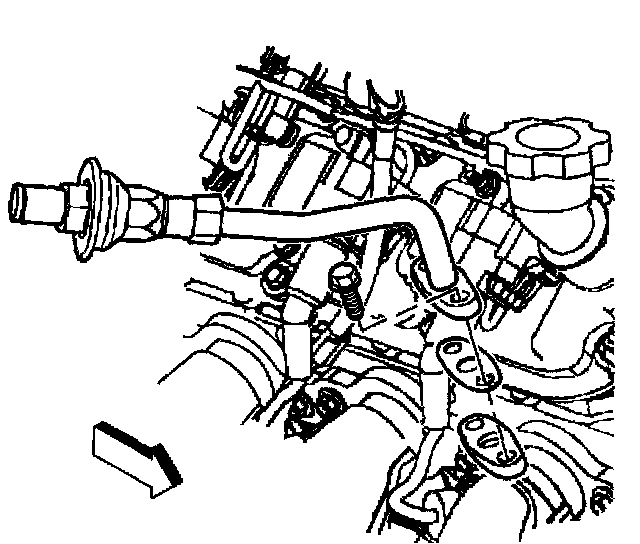

2. Remove the AIR pipe (with check valve), bolts and gasket from the exhaust manifold.

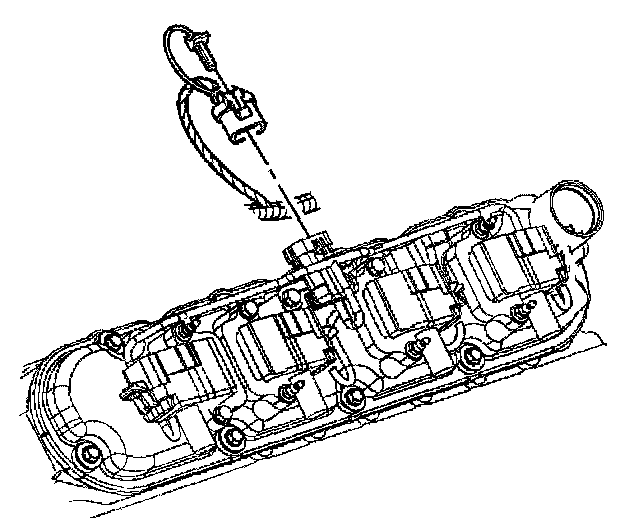

3. Disconnect the ignition coil harness main connector.

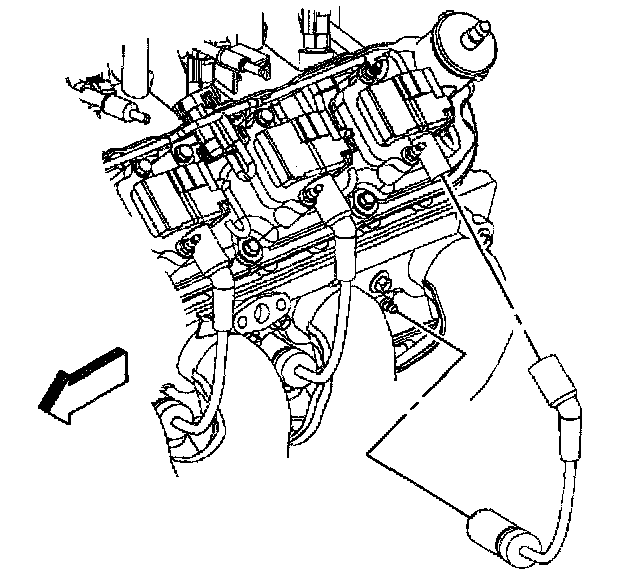

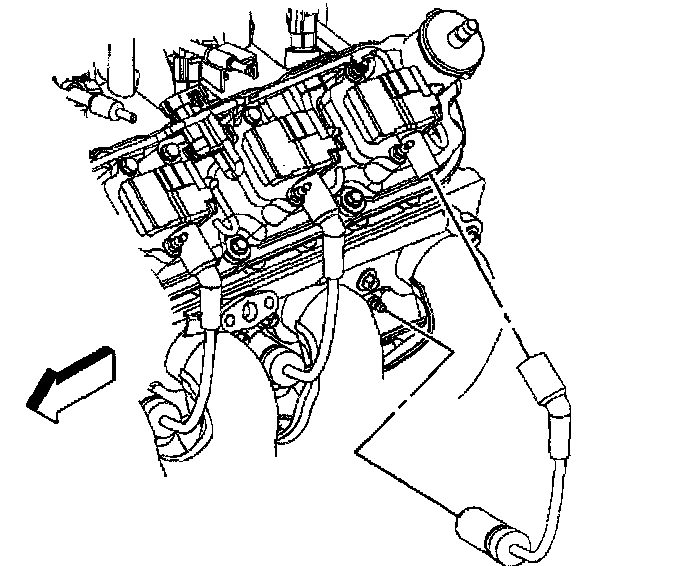

4. Remove the spark plug wires.

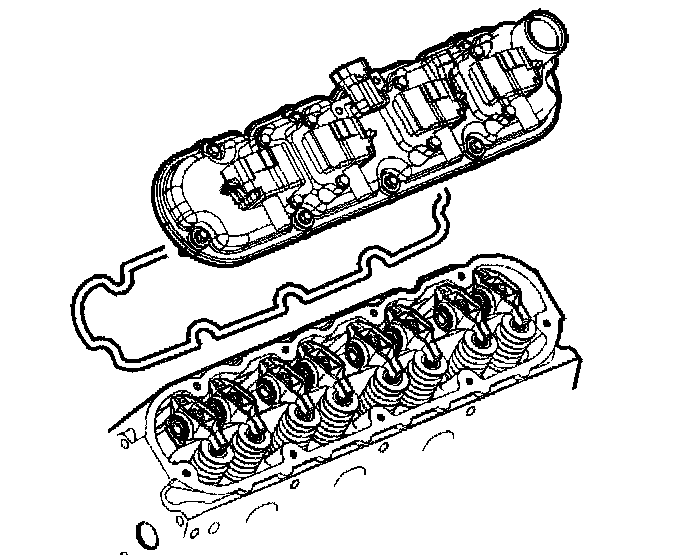

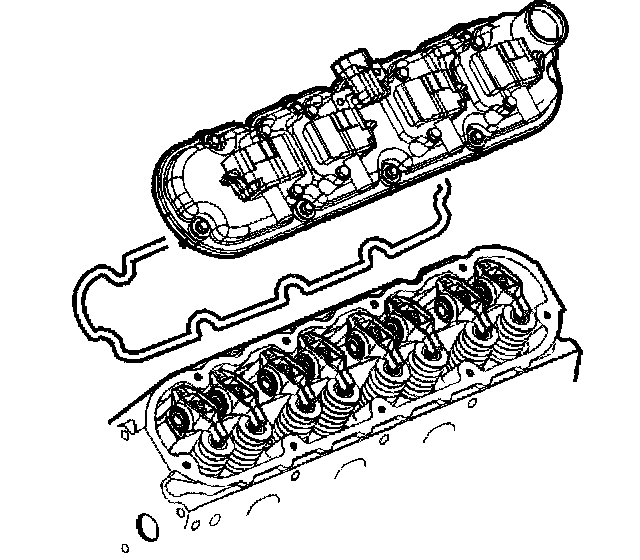

5. Remove the right side valve rocker arm cover.

INSTALLATION PROCEDURE





1. Install the right side valve rocker arm cover.





2. Install the spark plug wires.

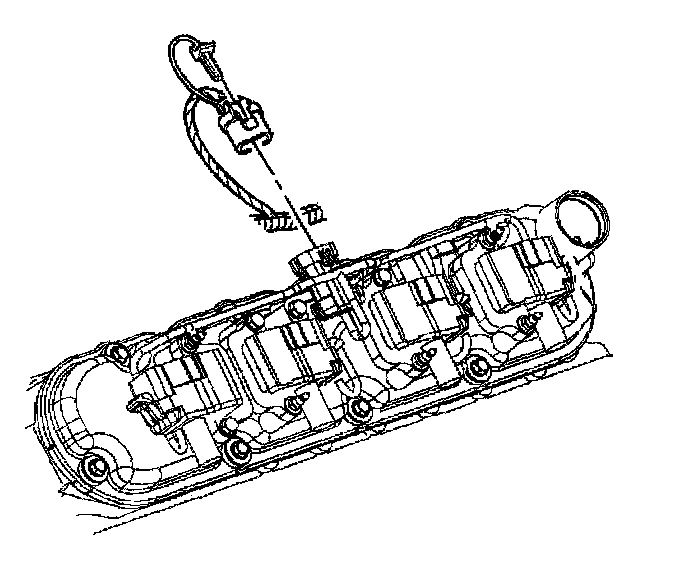

3. Connect the ignition coil harness main connector.

NOTICE: Refer to Fastener Notice in Service Precautions.

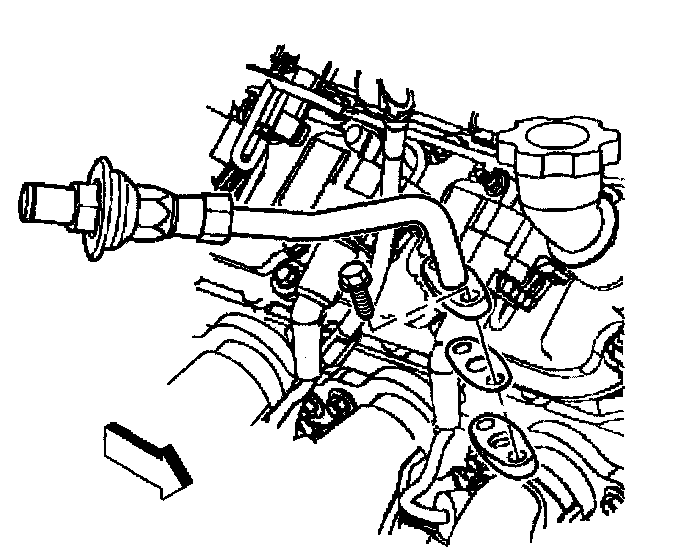

4. Install the AIR pipe (with check valve), bolts and gasket to the exhaust manifold.
^ Tighten the AIR pipe bolts to 20 Nm (15 ft. lbs.).

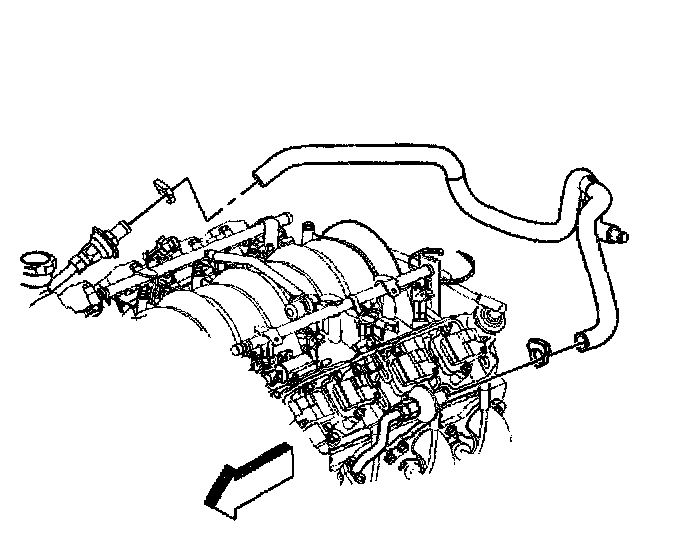

5. Install the AIR hose and clamps.
