Rocker Arm Assembly: Service and Repair

REMOVAL PROCEDURE

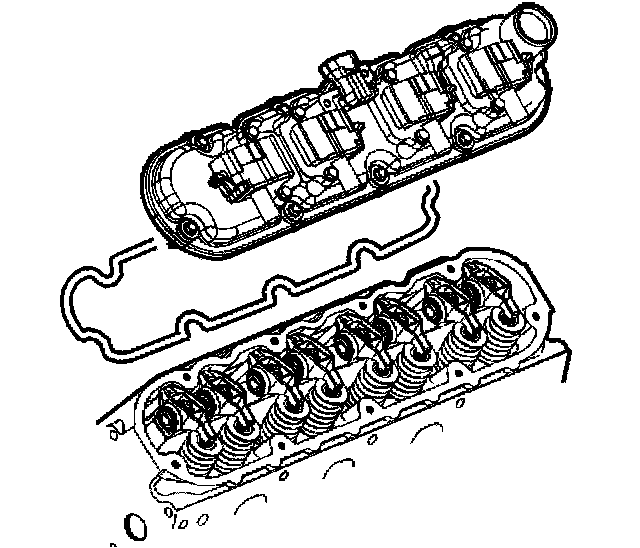

1. Remove the valve rocker arm covers.
2. Remove the valve rocker arms, push rods, and pedestals. Refer to Valve Rocker Arm and Push Rod Removal in "Unit Repair" of Engine.

INSTALLATION PROCEDURE





1. Install the valve rocker arms, push rods, and pedestals. Refer to Valve Rocker Arm and Pushrod Installation in "Unit Repair" of Engine.

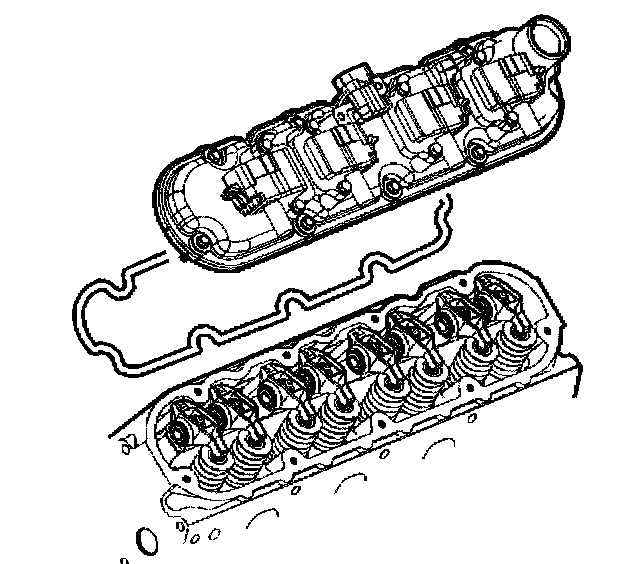

2. Install the valve rocker arm covers.
