Engine Valley Cover: Service and Repair

REMOVAL PROCEDURE

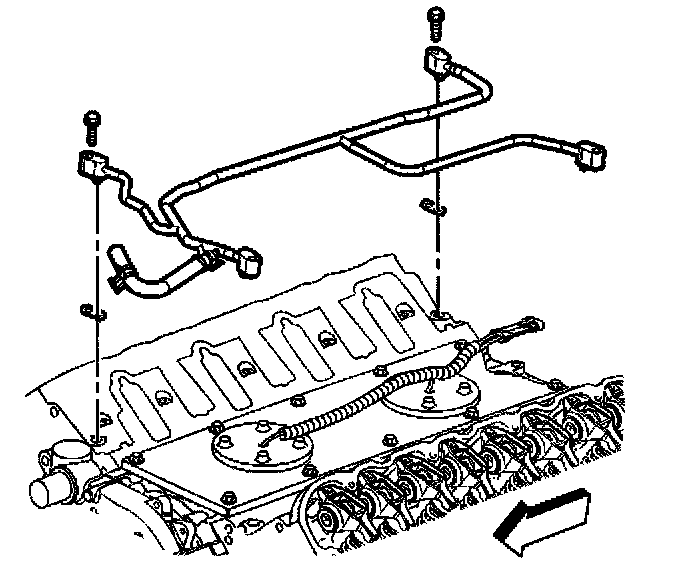

1. Remove the vapor vent pipe.

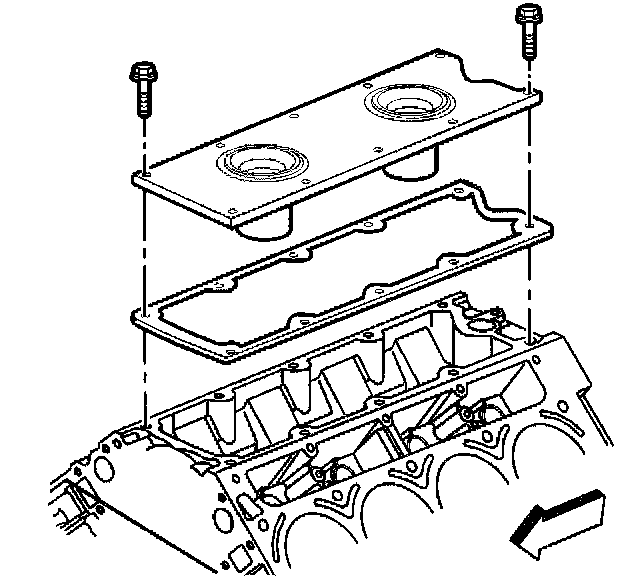

2. Remove the engine valley cover.

INSTALLATION PROCEDURE

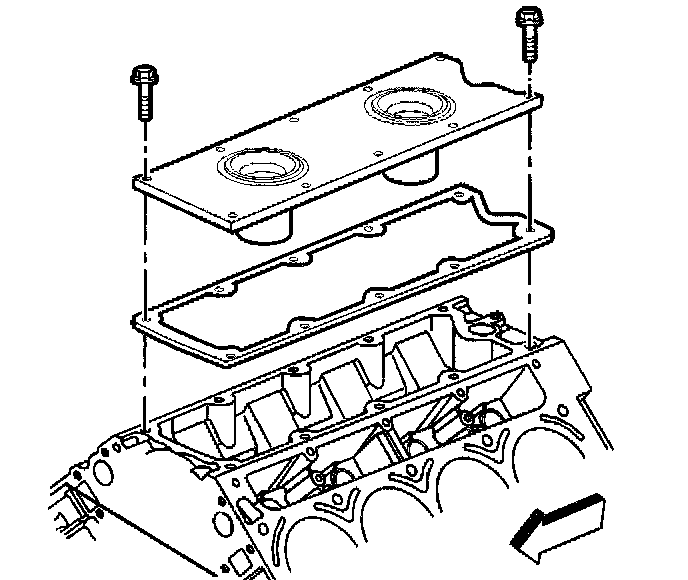

1. Install the engine valley cover.

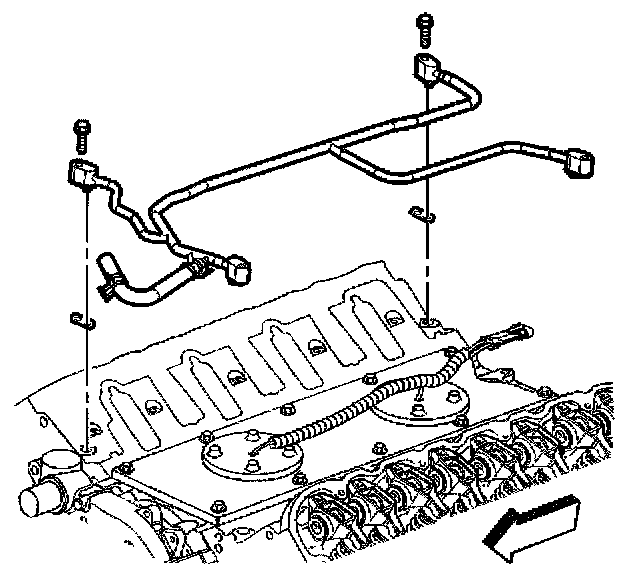

2. Install the vapor vent pipe.
