Camshaft: Service and Repair

REMOVAL PROCEDURE

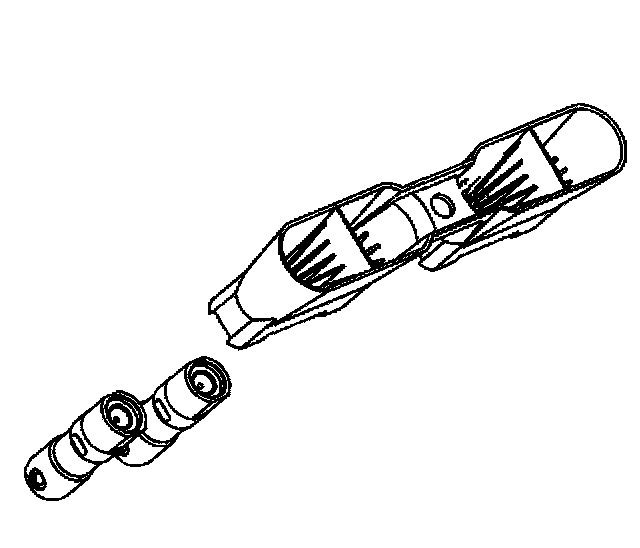

1. Remove the valve lifter guide and the valve lifters.

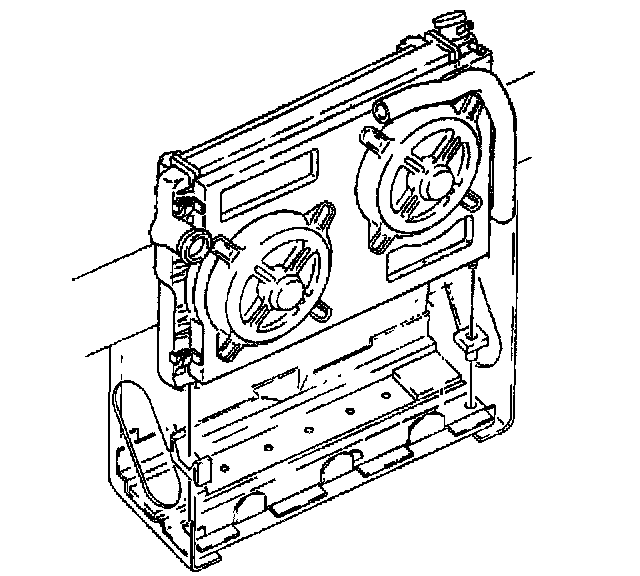

2. Remove the radiator.

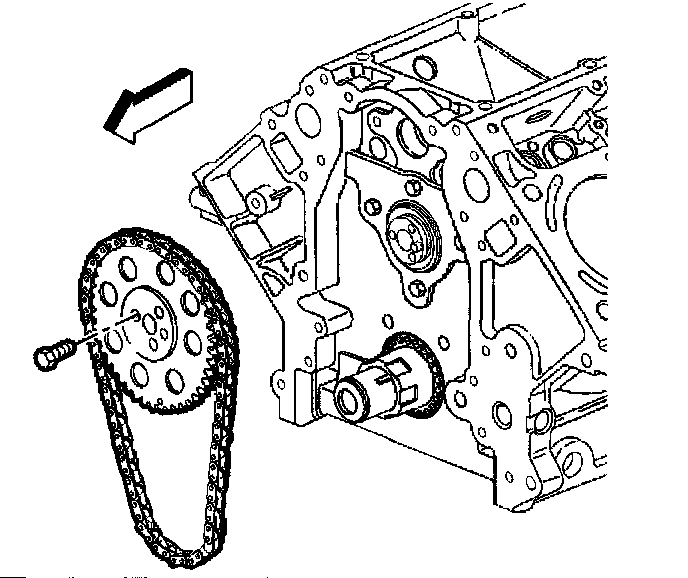

3. Remove the timing chain and sprocket.

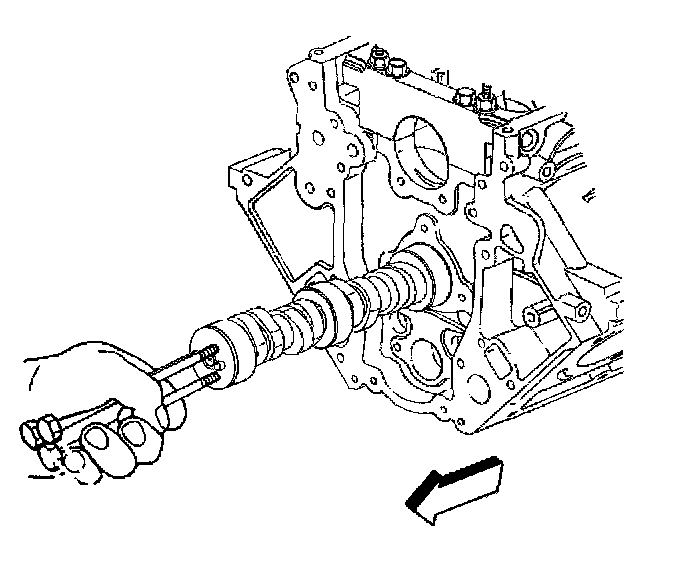

4. Remove the camshaft.

INSTALLATION PROCEDURE

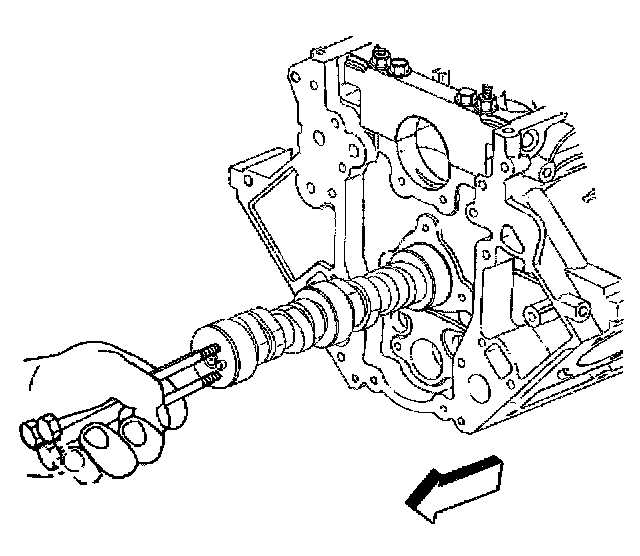

1. Install the camshaft.

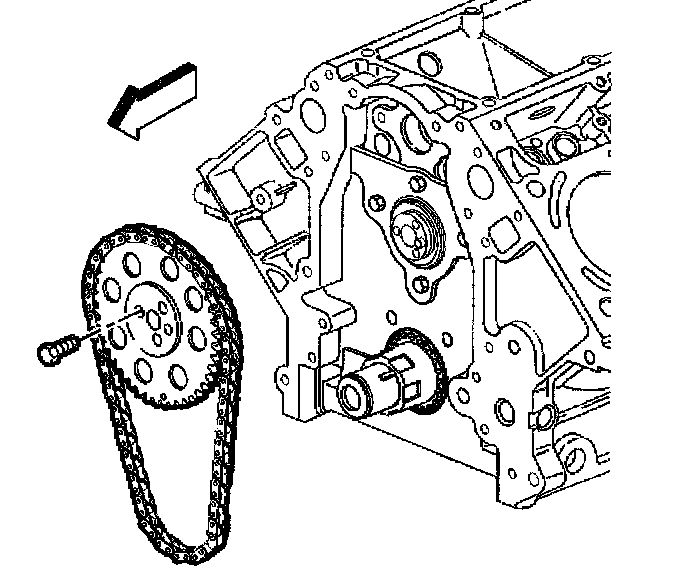

2. Install the timing chain and sprocket.

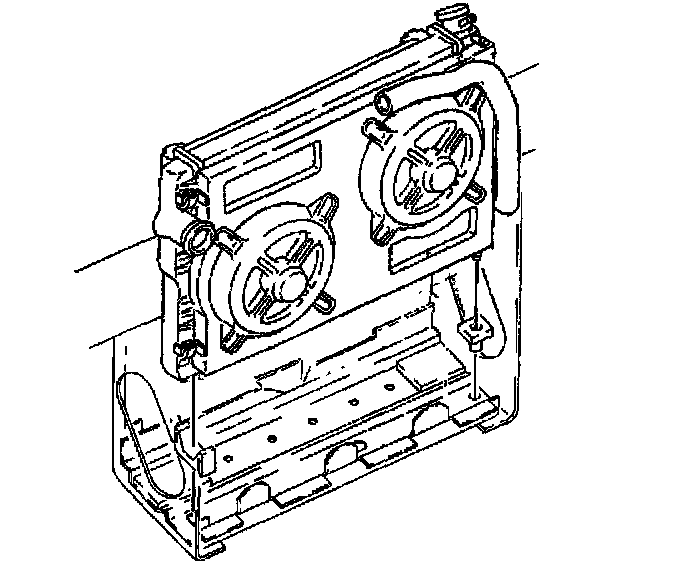

3. Install the radiator.

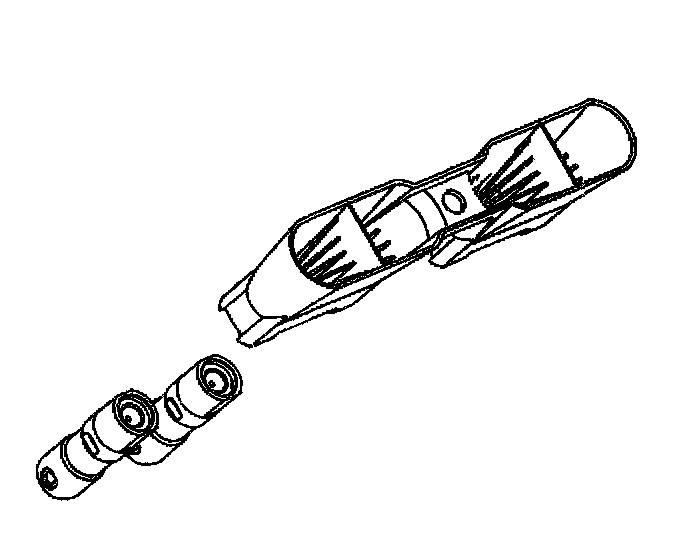

4. Remove the valve lifter guide and the valve lifters.
Refer to Valve Lifter Replacement.
