Engine: Application and ID

ENGINE IDENTIFICATION

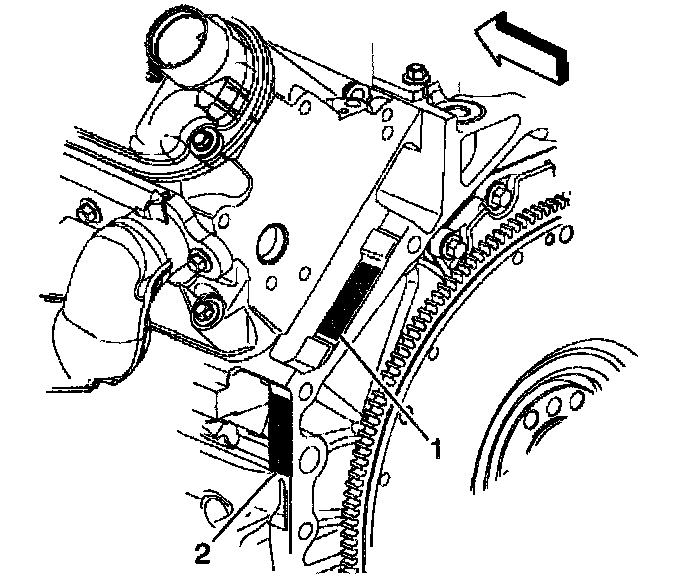

The 5.7 Litre LS1 engine has two locations where information is stamped on the block to identify the component. Location one is the primary stamping location. Location two is the secondary stamping location. Both stamping locations contain the engine identification numbers.
