Thermostat Housing Replacement

REMOVAL PROCEDURE
1. Open the radiator drain cock. Drain the engine coolant from the radiator to a level below the thermostat.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Close the radiator drain cock.
^ Tighten the radiator drain cock to 1.5 Nm (13 inch lbs.).

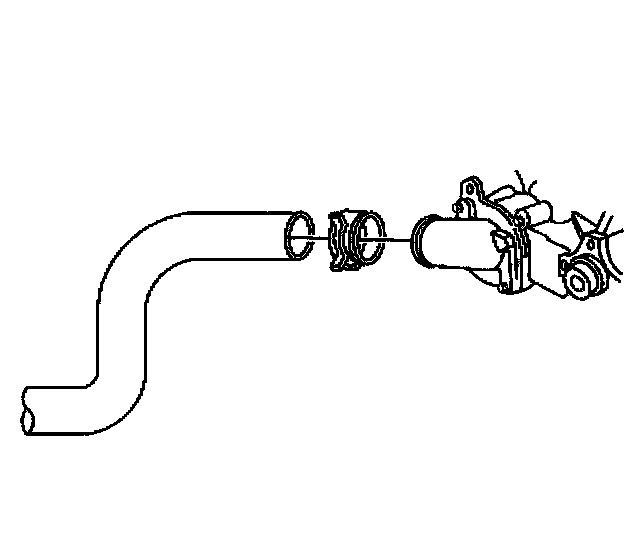

3. Remove the radiator outlet hose from the water outlet.

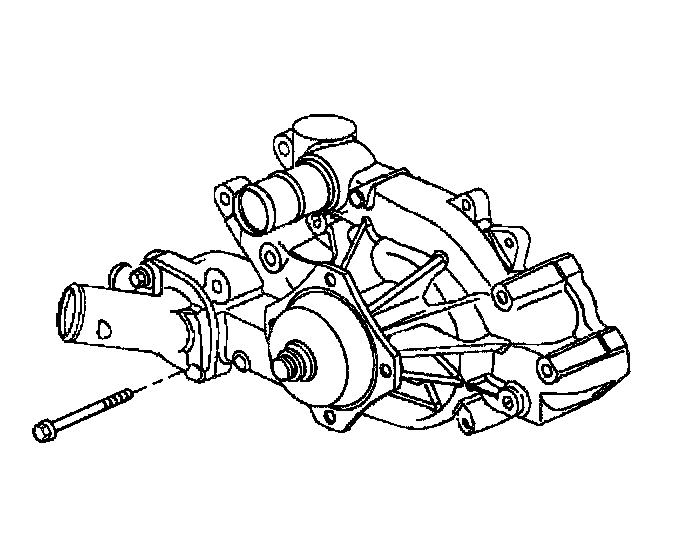

4. Remove the water outlet housing bolts.
5. Remove the water outlet and gasket.

INSTALLATION PROCEDURE
1. Thoroughly clean the water outlet and water pump surfaces.
2. Install the water outlet and gasket.

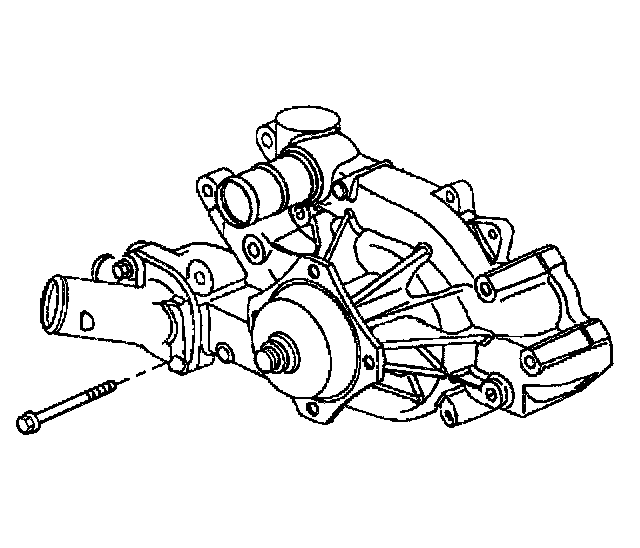

3. Install the water outlet bolts.
^ Tighten the water outlet bolts to 10 Nm (89 inch lbs.).

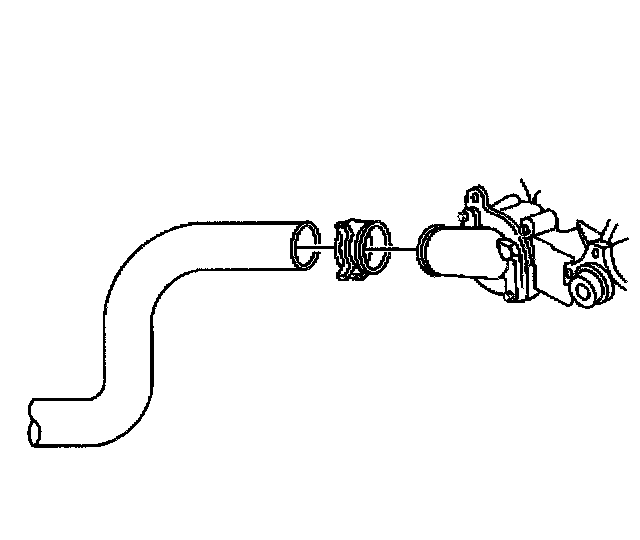

4. Install the radiator outlet hose to the water outlet.
5. Add engine coolant, if required.
