Radiator Air Baffle Assemblies and Deflectors (Upper)

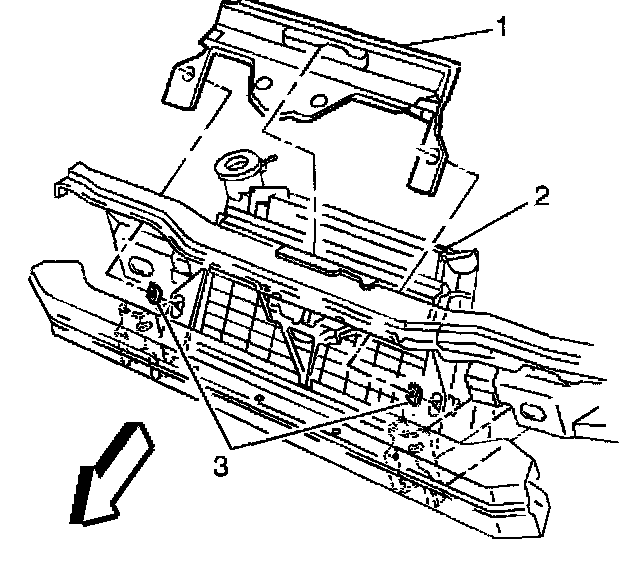

REMOVAL PROCEDURE





1. Remove the radiator air upper baffle from the retainers (3).
2. Remove the radiator air upper baffle (1) from the radiator (2).

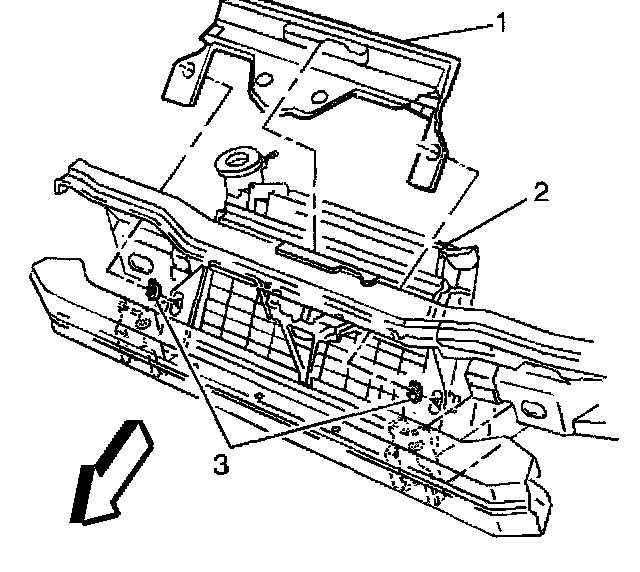

INSTALLATION PROCEDURE





1. Install the radiator air upper baffle (1) to the radiator (2).
2. Install the radiator air upper baffle to the retainers (3).
