Radiator Drain Plug: Service and Repair

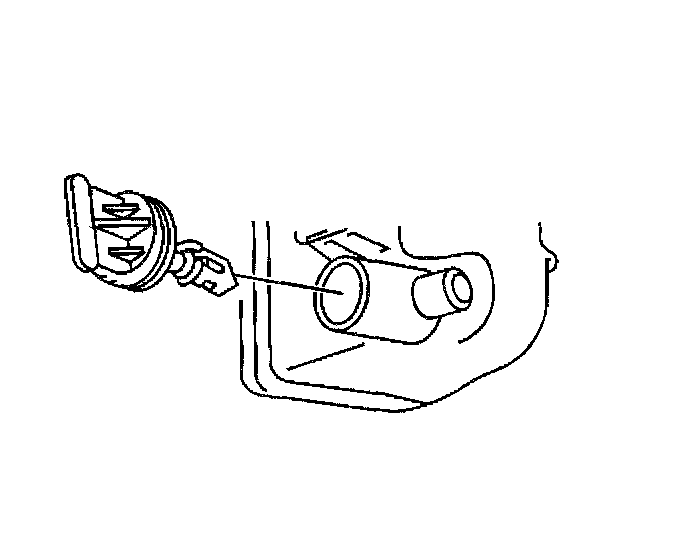

REMOVAL PROCEDURE
1. Drain the engine coolant.





2. Pull the radiator drain cock from the radiator body. Squeeze the sides together with needle nose pliers.
3. Clean and/or replace the seal and the drain cock as necessary.

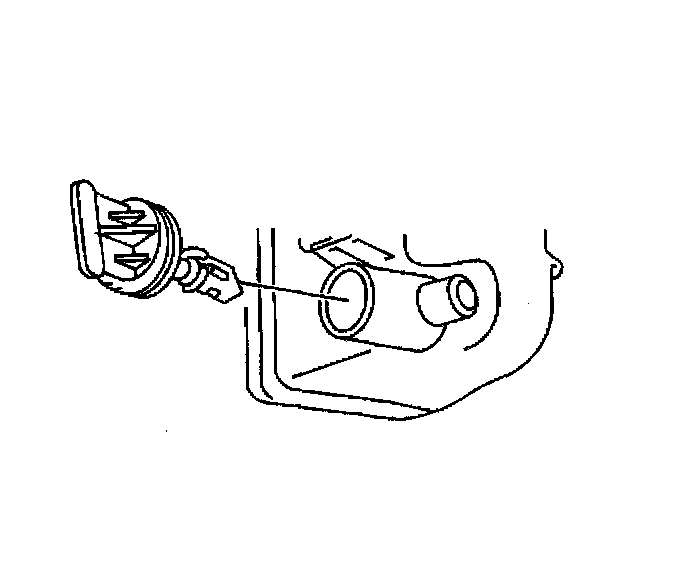

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Cautions and Notices.





1. Install the drain cock to the radiator body.
^ Tighten the radiator drain cock to 1.5 Nm (13 inch lbs.).
2. Refill the engine cooling system.
