Cooling Fan Replacement - Electric

REMOVAL PROCEDURE

CAUTION: Keep hands, tools, and clothing away from the electric engine coolant fans in order to help prevent personal injury. These fans are electric and can turn on whether or not the engine is running. The fans can start automatically with the ignition in the ON position.

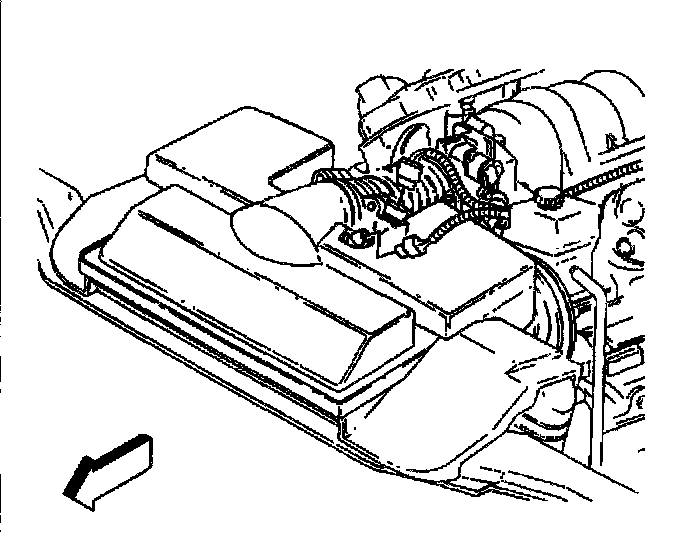

1. Disconnect the electrical connectors from the (IAT) Intake Air Temperature sensor and (MAF) Mass Airflow sensor, if equipped with the 5.7L-(VIN G) engine.

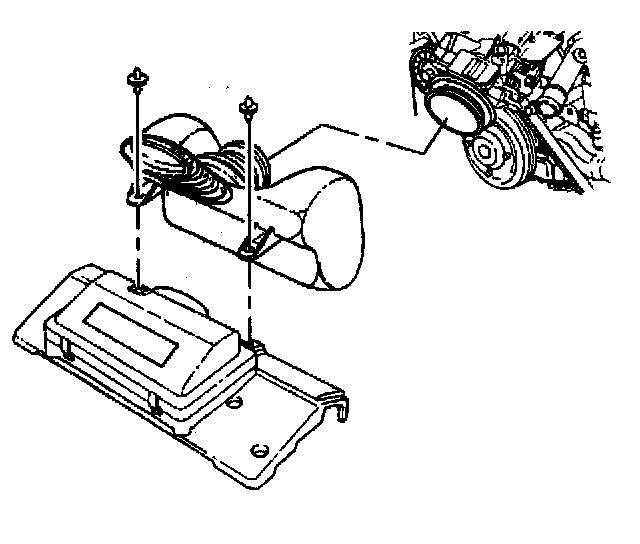

2. Remove the air intake duct, if equipped with the 5.7L-(VIN G) engine.

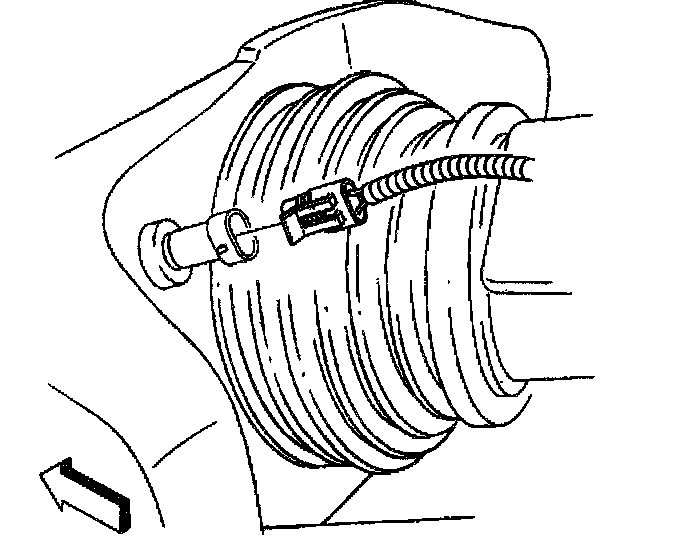

3. Disconnect the electrical connector from the (IAT) Intake Air Temperature sensor, if equipped with the 3800 (VIN K) engine.





4. Remove the air intake duct, if equipped with the 3800 (VIN K) engine.





5. Disconnect the rosebud clips from the fan assembly.

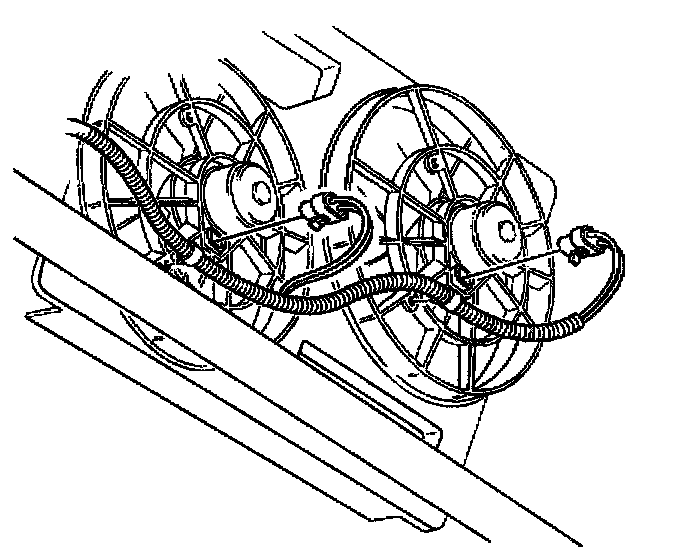

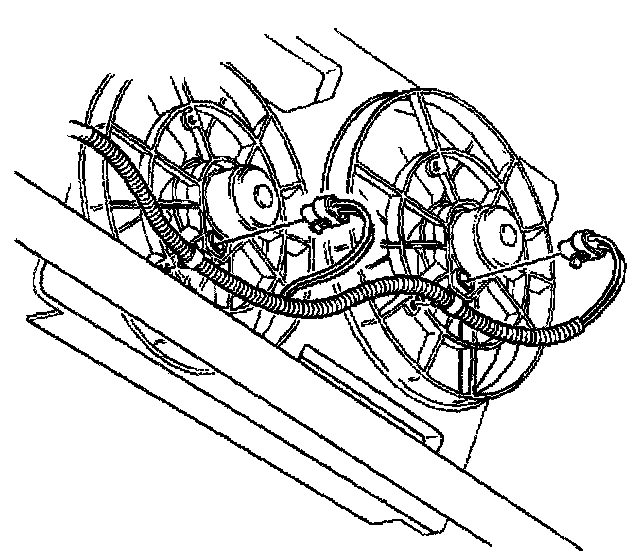

6. Disconnect the coolant fan electrical connectors from the fan assembly.

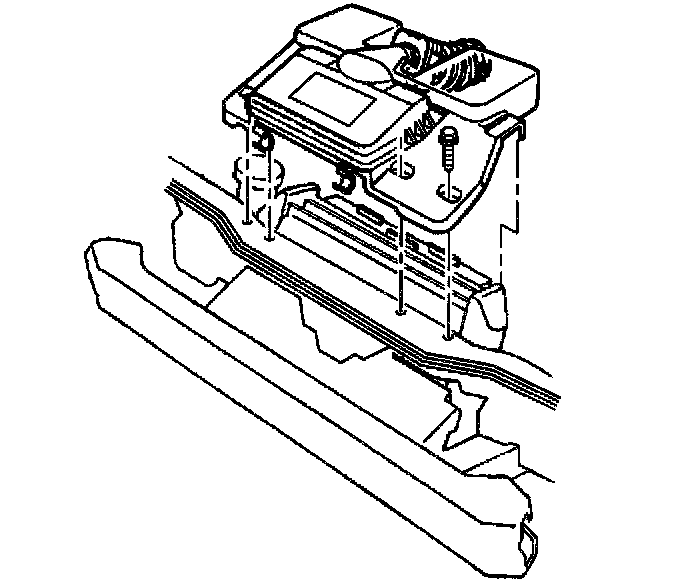

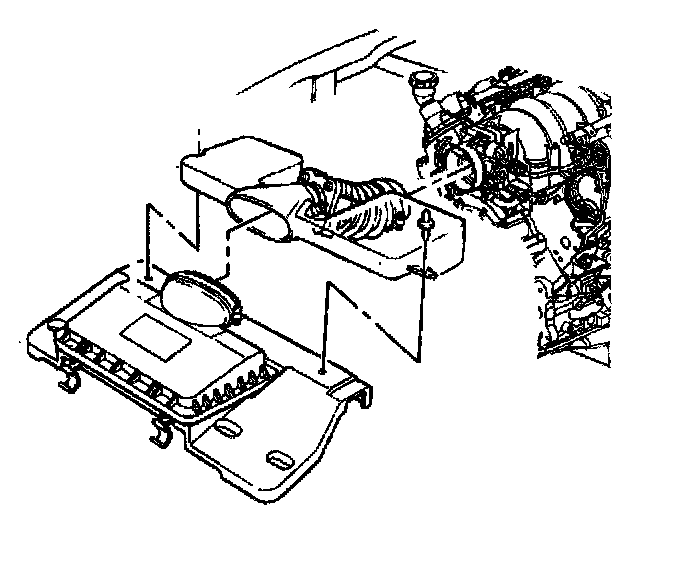

7. Remove the air cleaner assembly bolts.

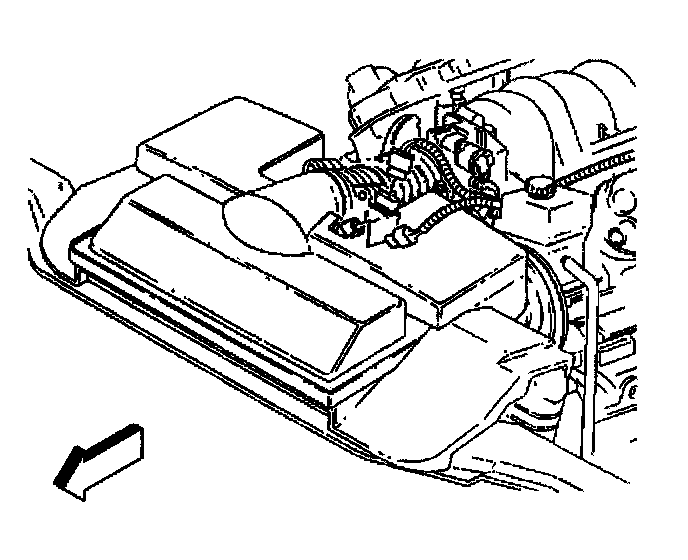

8. Remove the air cleaner assembly.

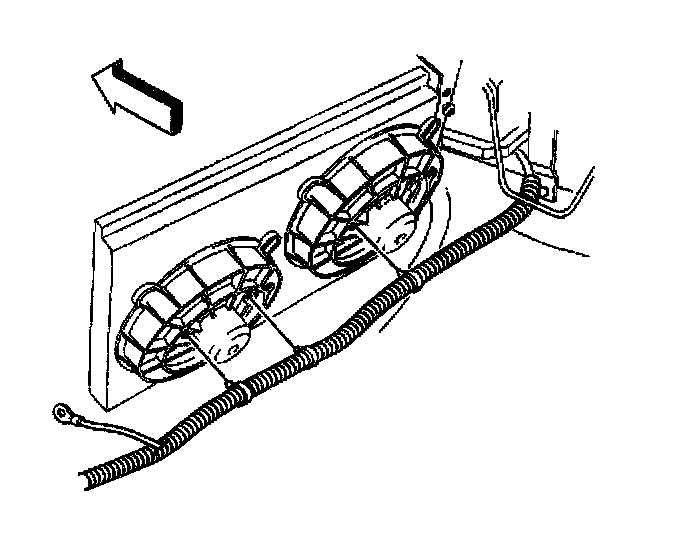

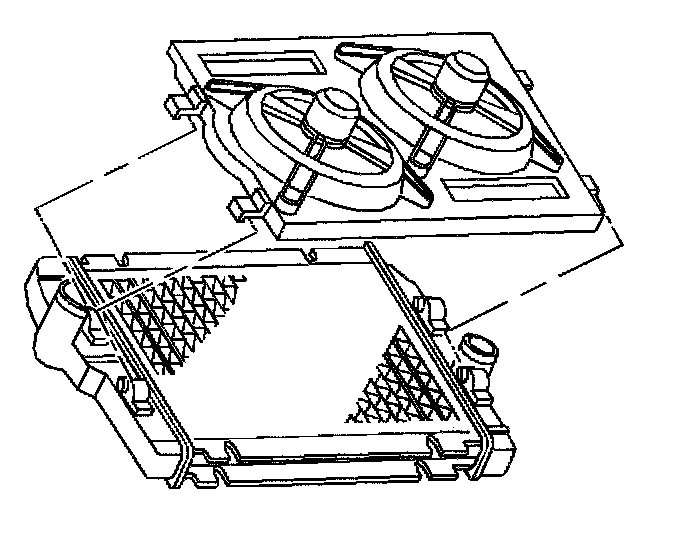

9. Remove the electric engine coolant fan. The fan will slide off of the radiator.
10. Remove the fan blade nut.

CAUTION: If a fan blade is bent or damaged in any way, do not repair or reuse the damaged part. Always replace a bent or damaged fan blade. Fan blades that have been damaged can not be assured of proper balance and could fail and fly apart during subsequent use. This creates an extremely dangerous situation.
The fan blades must remain in proper balance. You cannot assure fan blade balance once a fan blade has been bent or damaged. A fan blade that is not in proper balance could fail and fly apart during use, creating an extremely dangerous situation.
11. Remove the fan blade.
12. Inspect for the following conditions:
^ Bent or cracked fan blades
^ Smoothness of the fan blade mating surfaces
^ Remove burrs or other imperfections as necessary

INSTALLATION PROCEDURE





1. Install the fan blade.
2. Install the fan blade nut.

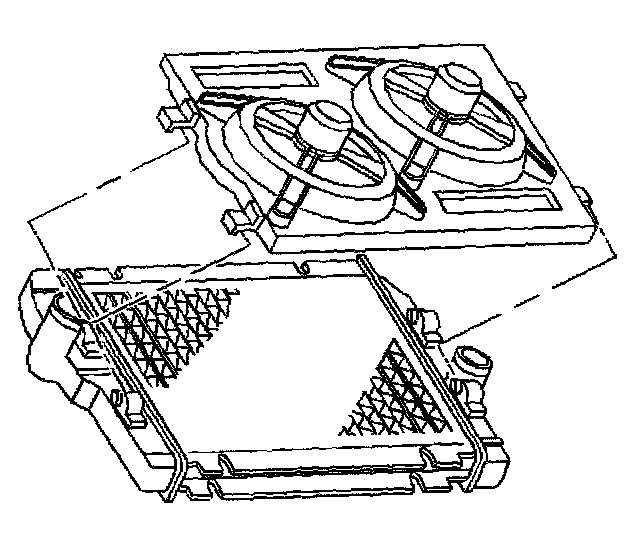

3. Install the electric engine coolant fan. The fan wit slide into place on the radiator.

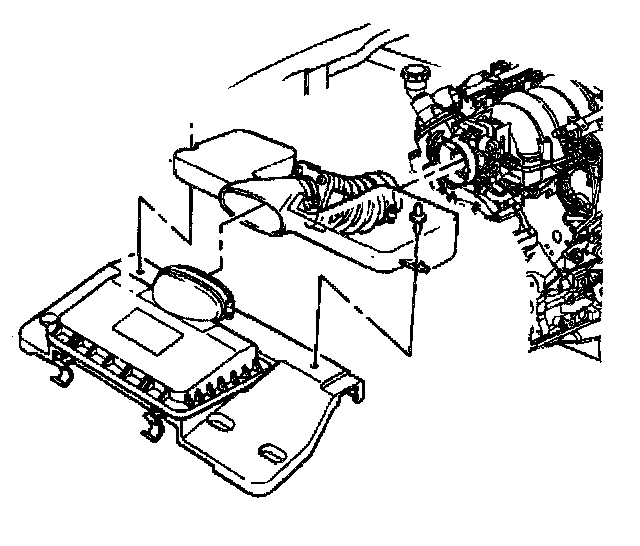

4. Install the air cleaner assembly.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

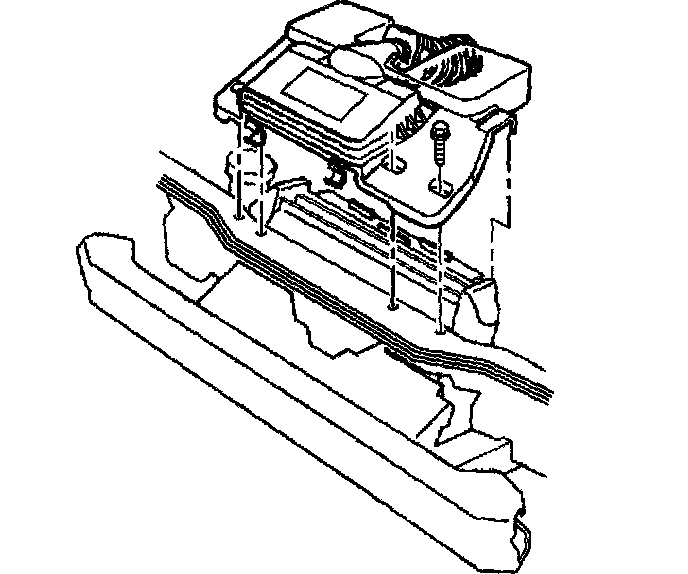

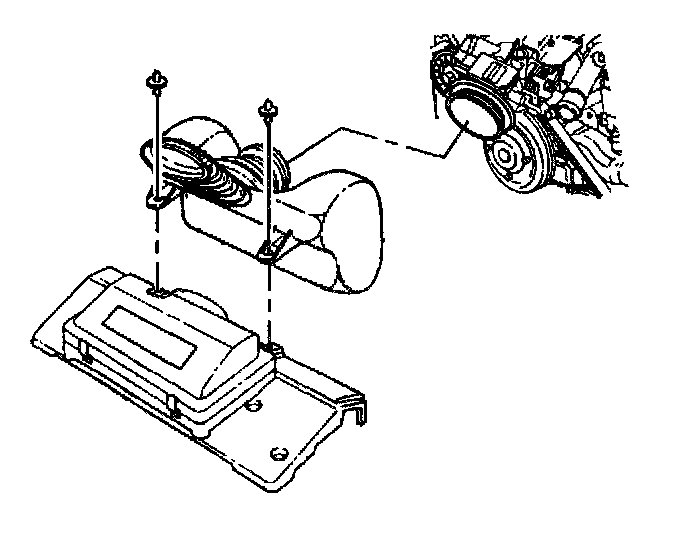

5. Install the air cleaner assembly bolts.
^ Tighten the air cleaner bolts to 12 Nm (106 inch lbs.).

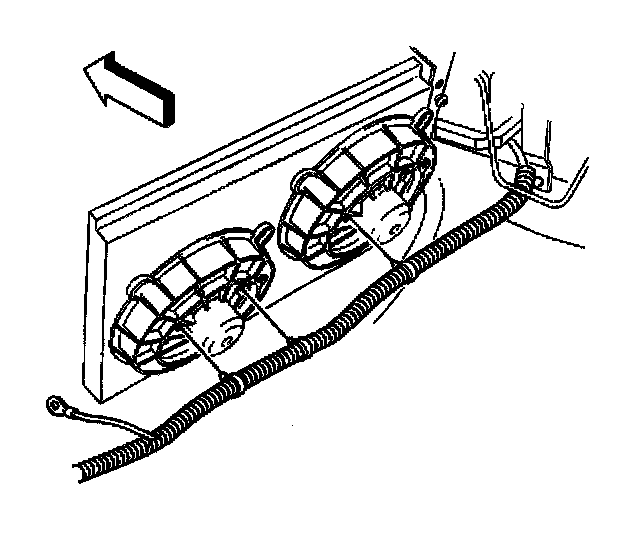

6. Connect the coolant fan electrical connectors to the fan assembly.





7. Connect the rosebud clips to the fan assembly.





8. Install the air intake duct, if equipped with the 3800 (VIN K) engine.





9. Connect the electrical connector to the IAT sensor, if equipped with the 3800 (VIN K) engine.





10. Install the air intake duct, if equipped with the 5.7L (VIN G) engine.





11. Connect the electrical connectors to the IAT sensor and the MAF sensor, if equipped with the 5.7L-(VIN G) engine.
