Cooling Fan Motor Replacement - Electric

REMOVAL PROCEDURE
1. Remove the cooling fan.

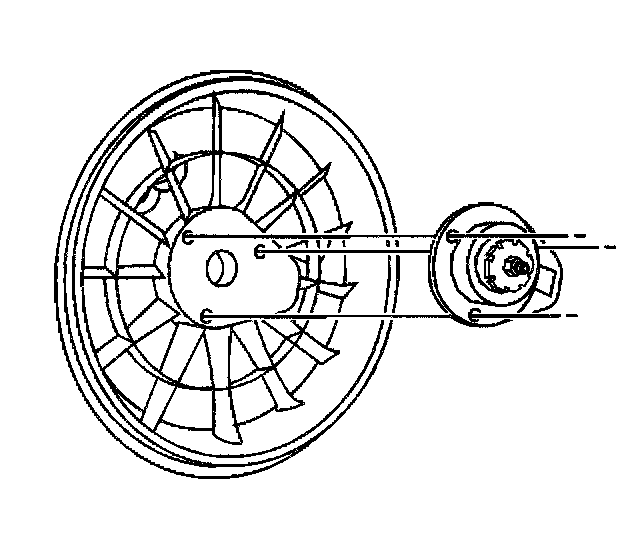

2. Remove the cooling fan bolts





3. Remove the cooling fan motor.

INSTALLATION PROCEDURE





1. Install the cooling fan motor.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the cooling fan motor bolts.
^ Tighten the cooling fan motor bolts to 6 Nm (53 inch lbs.).
3. Install the cooling fan.
