Fan Shroud: Service and Repair

REMOVAL PROCEDURE
1. Remove the radiator upper support.

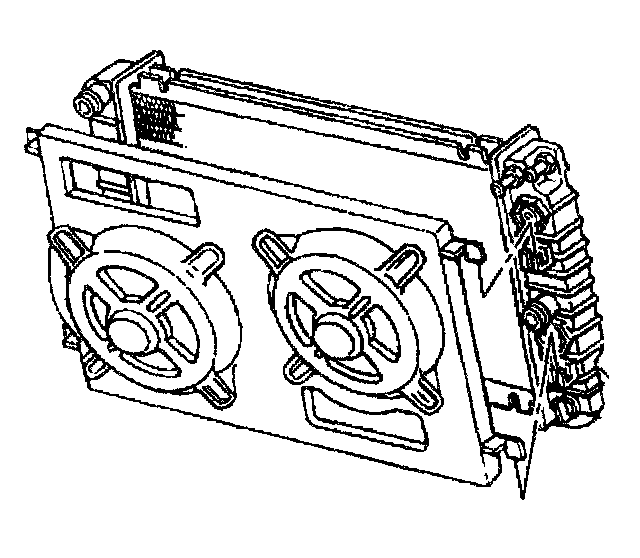

2. Remove the fan shroud:
^ Move the fan shroud up in order to clear the four mounts.
^ Move the fan shroud down in order to remove it from the vehicle.

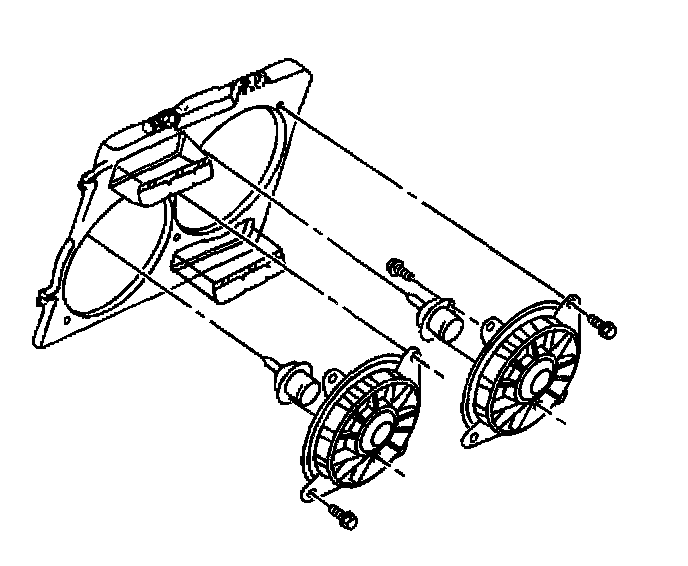

3. Remove the cooling fan brackets from the fan shroud.

INSTALLATION PROCEDURE

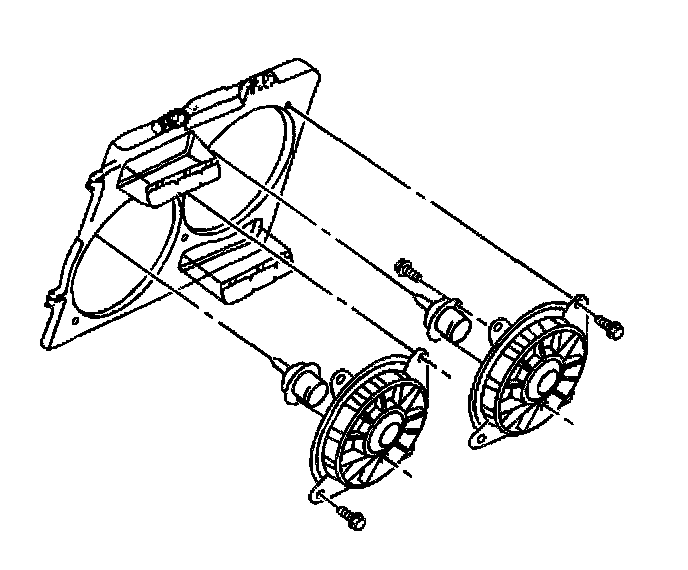

1. Install the cooling fan brackets to the fan shroud.

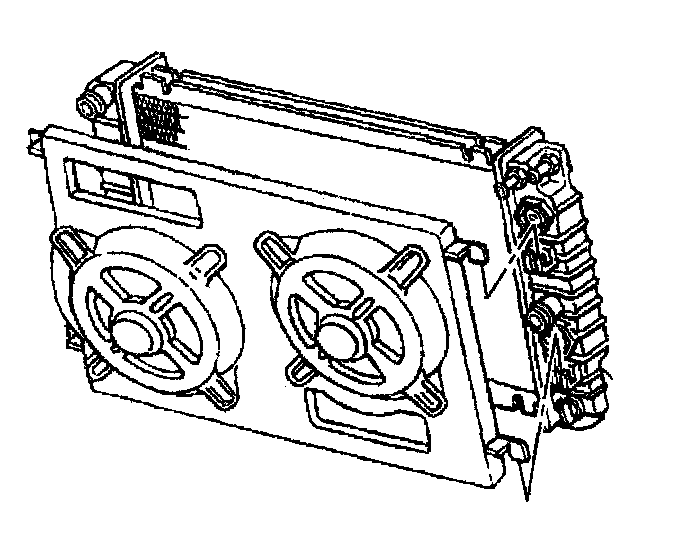

2. Install the fan shroud into the four retaining tabs on the radiator.
3. Install the radiator upper support.
