Throttle Body Heater Hose Replacement - Outlet

REMOVAL PROCEDURE
1. Drain the cooling system.

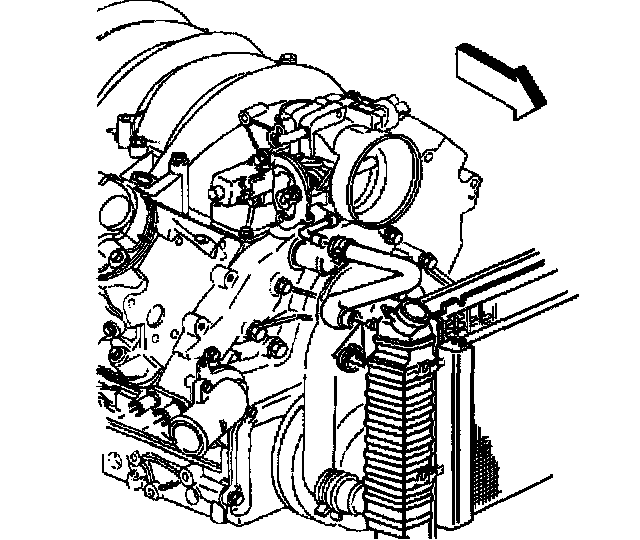

2. Remove the throttle body outlet hose from the throttle body.
3. Remove the throttle body outlet hose from the radiator.

INSTALLATION PROCEDURE

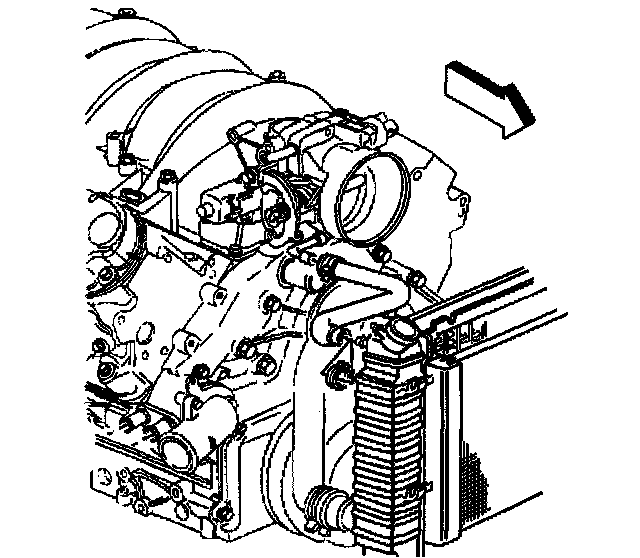

1. Install the throttle body outlet hose to the radiator.
2. Install the throttle body outlet hose to the throttle body.
3. Fill the cooling system.
