LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Hydraulic Control Assembly - Antilock Brakes >> Bpmv Hydraulic Flow Chart (With TCS)

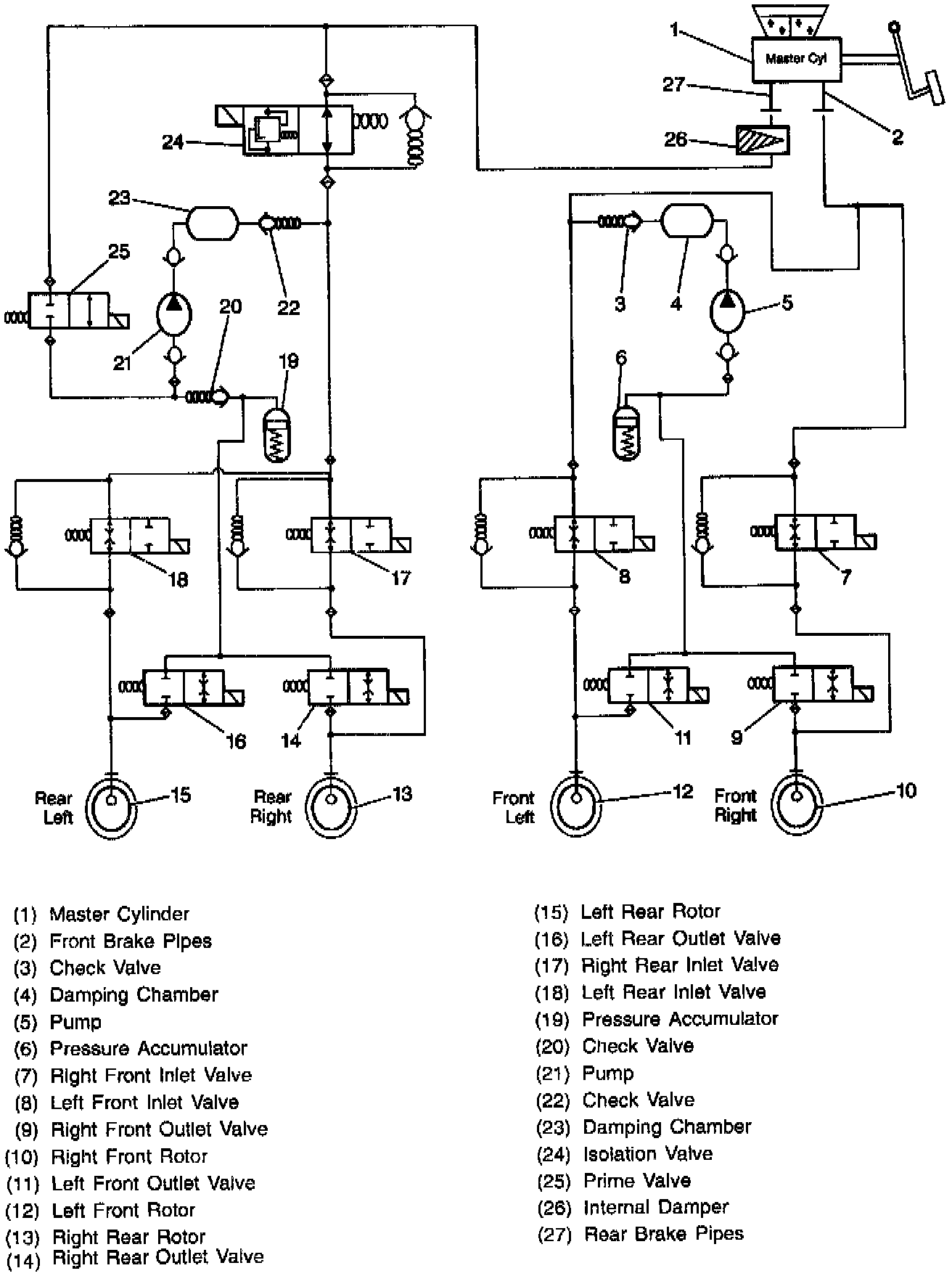

Bpmv Hydraulic Flow Chart (With TCS)
