Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> UH Electrical Center 2

UH Electrical Center 2

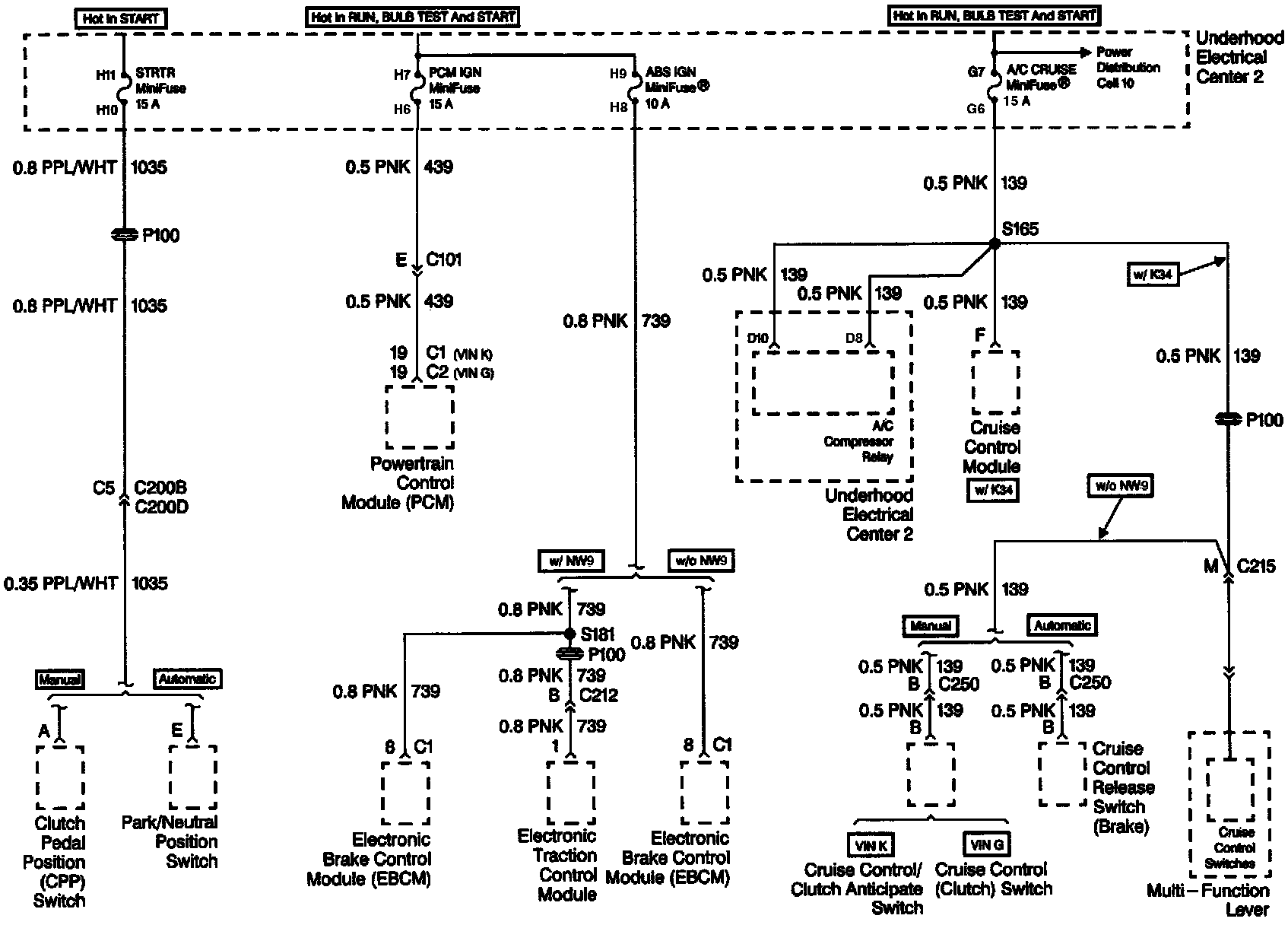

UH Electrical Center 2: STRTR, PCM IGN, ABS IGN And A/C CRUISE FUSES:

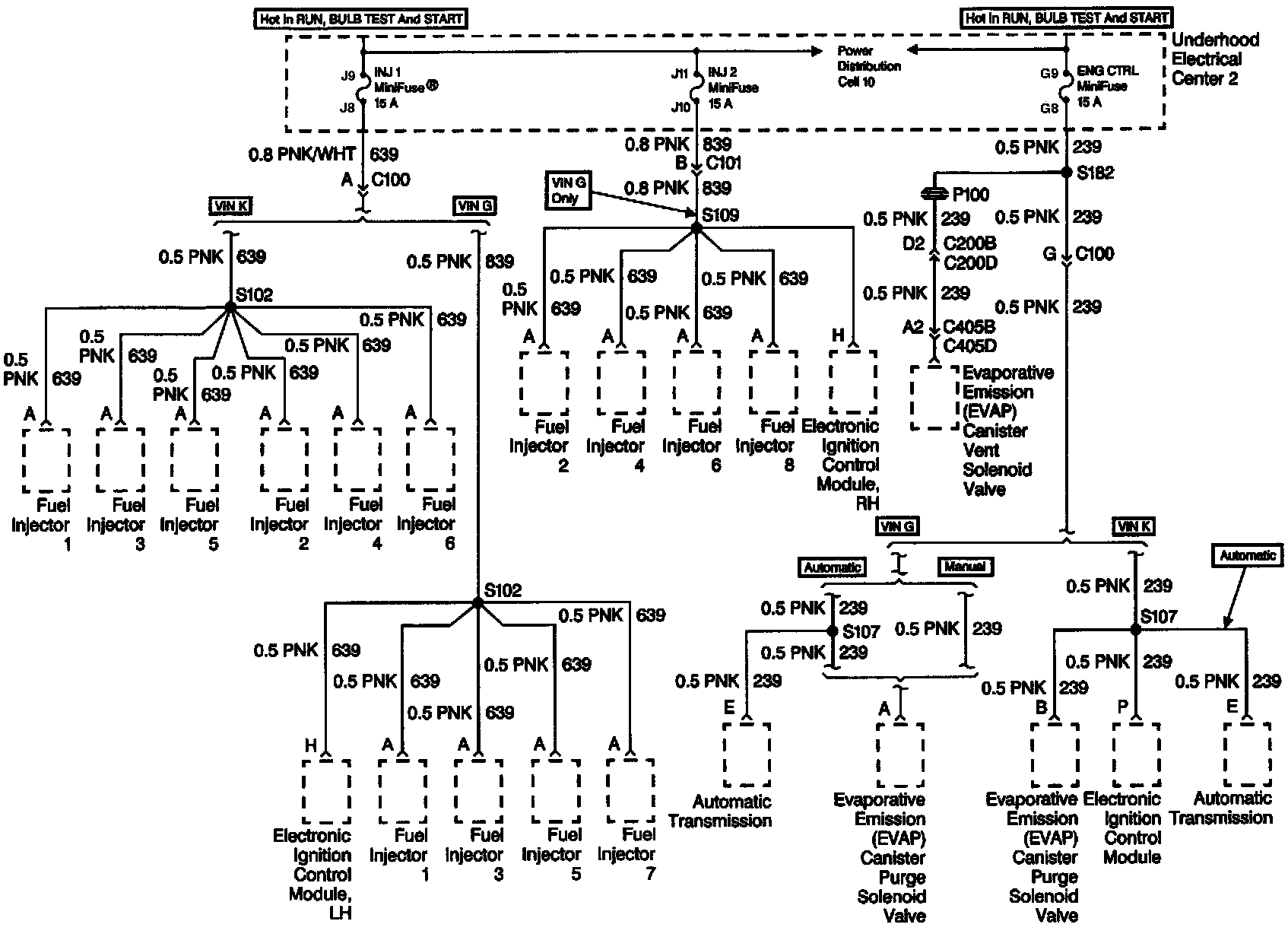

UH Electrical Center 2: INJ 1, INJ2 And ENG CTRL FUSES:

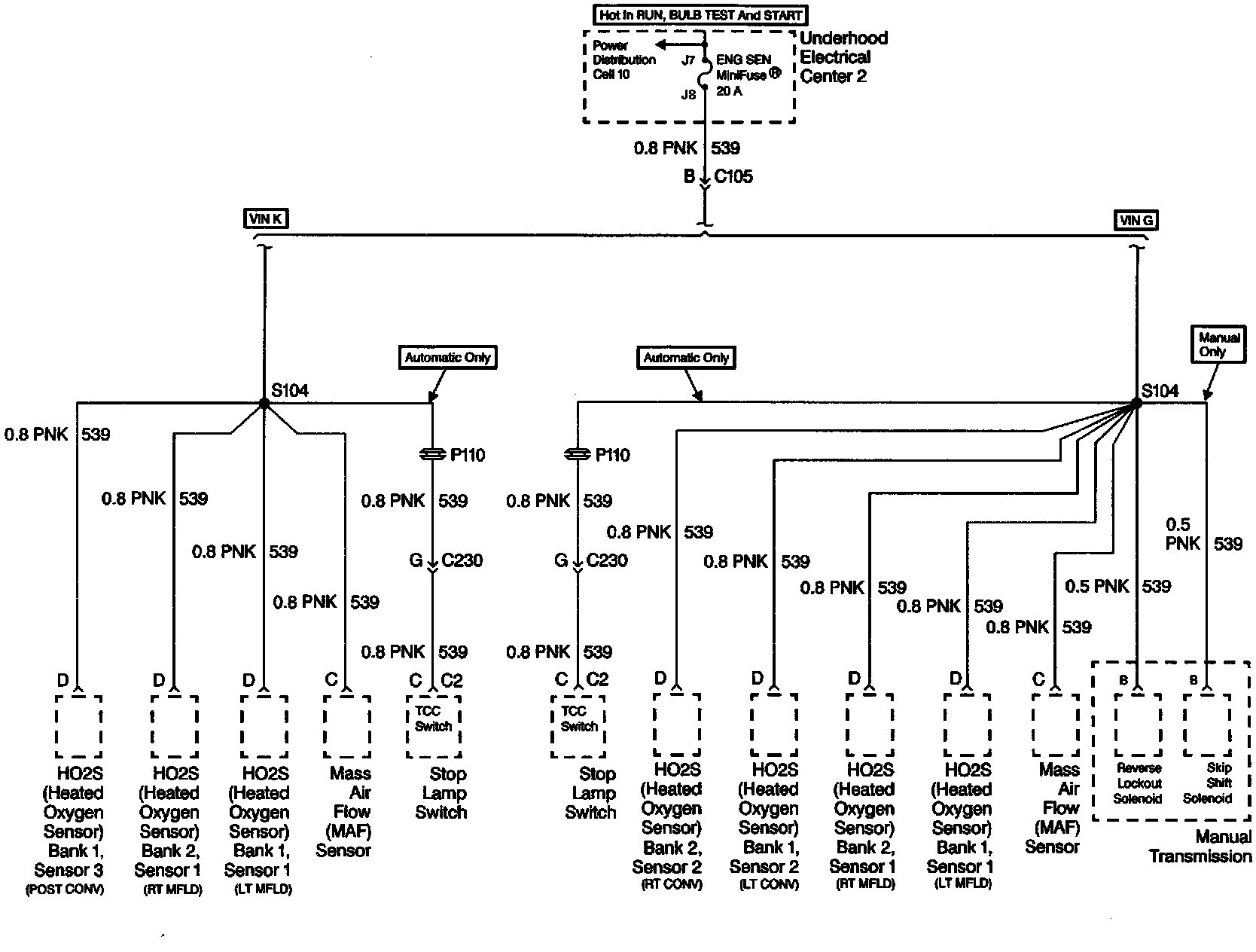

UH Electrical Center 2: ENG SEN FUSE:
