UH Electrical Center 1

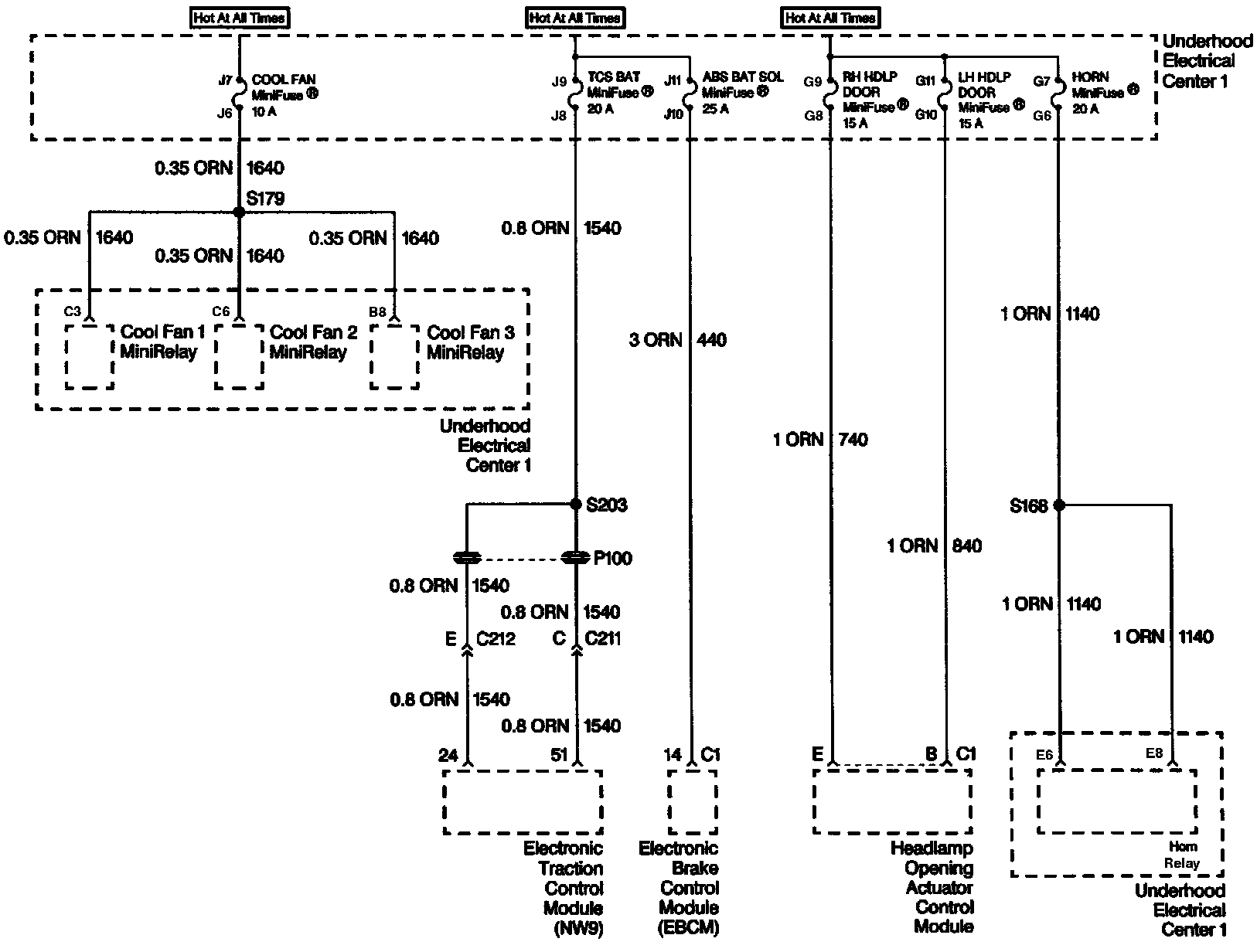

UH Electrical Center 1: COOL FAN, TCS BAT, ABS BAT SOL, RH/LH HDLP DOOR, And HORn FUSES:

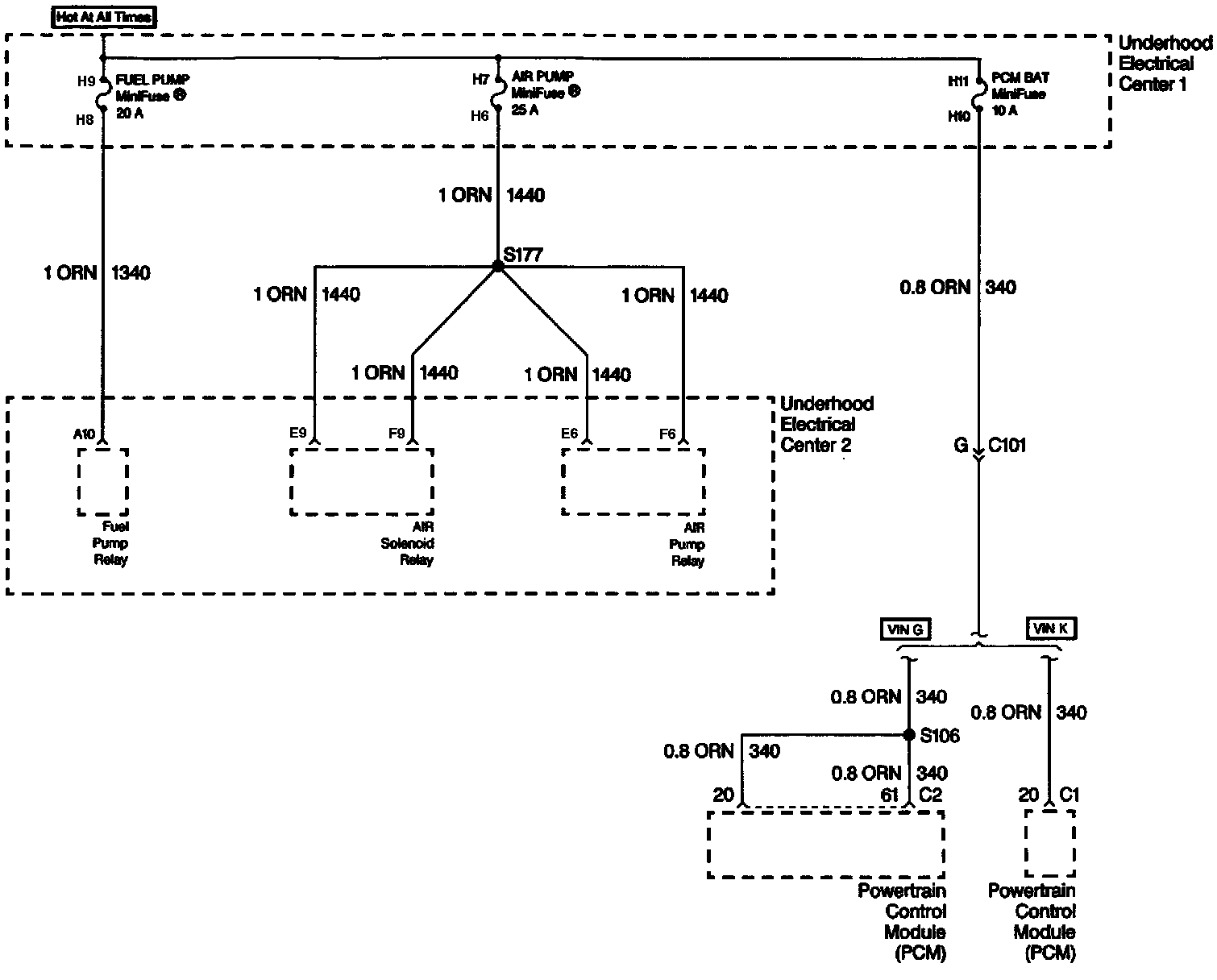

UH Electrical Center 1: Fuel Pump, Air Pump And PCM BAT Fuses:
