Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> Fuses 7, 9, 10 and 11

Fuses 7, 9, 10 and 11

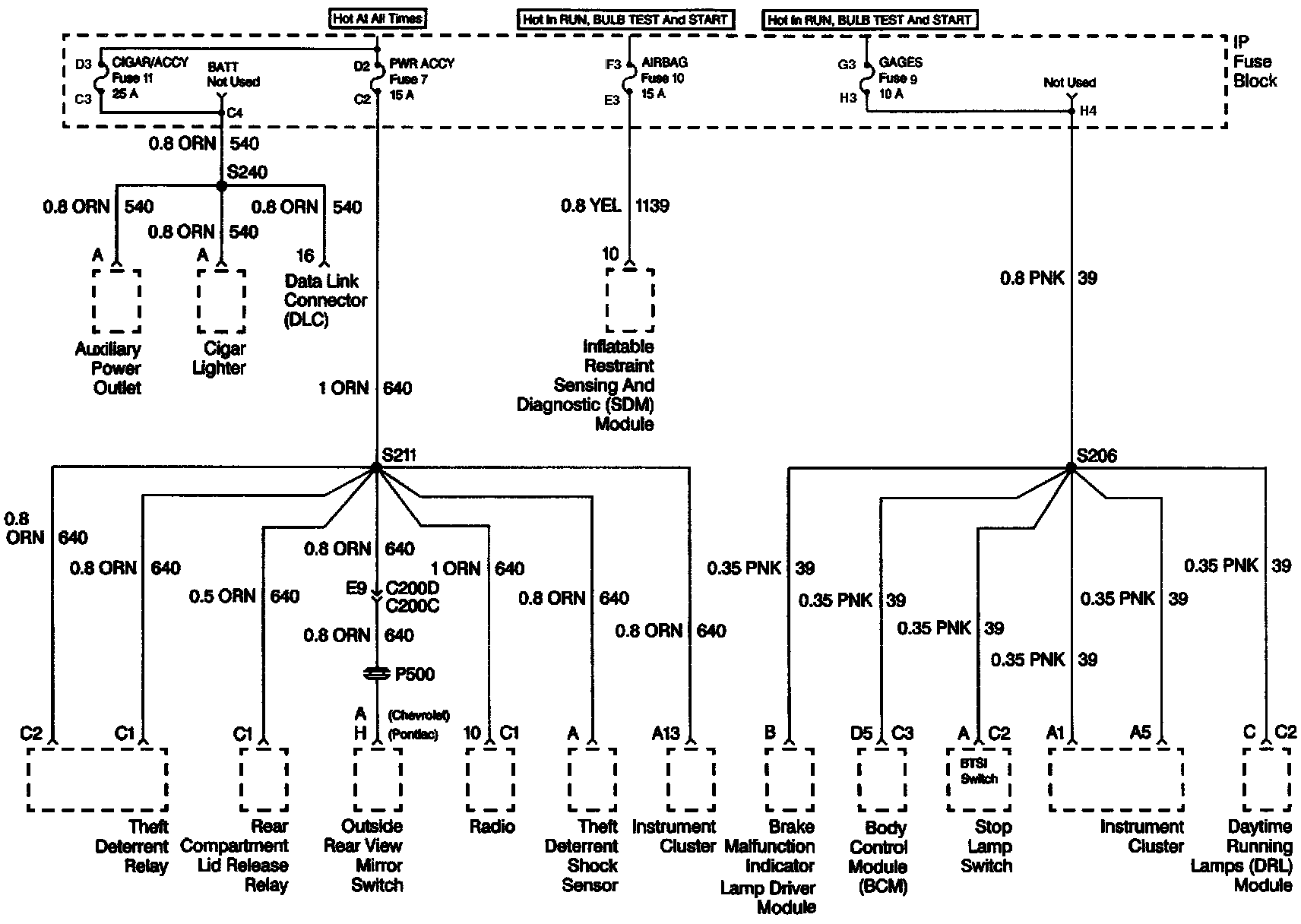

I/P Fuses 7,9,10 And 11:
