Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution >> G201

G201

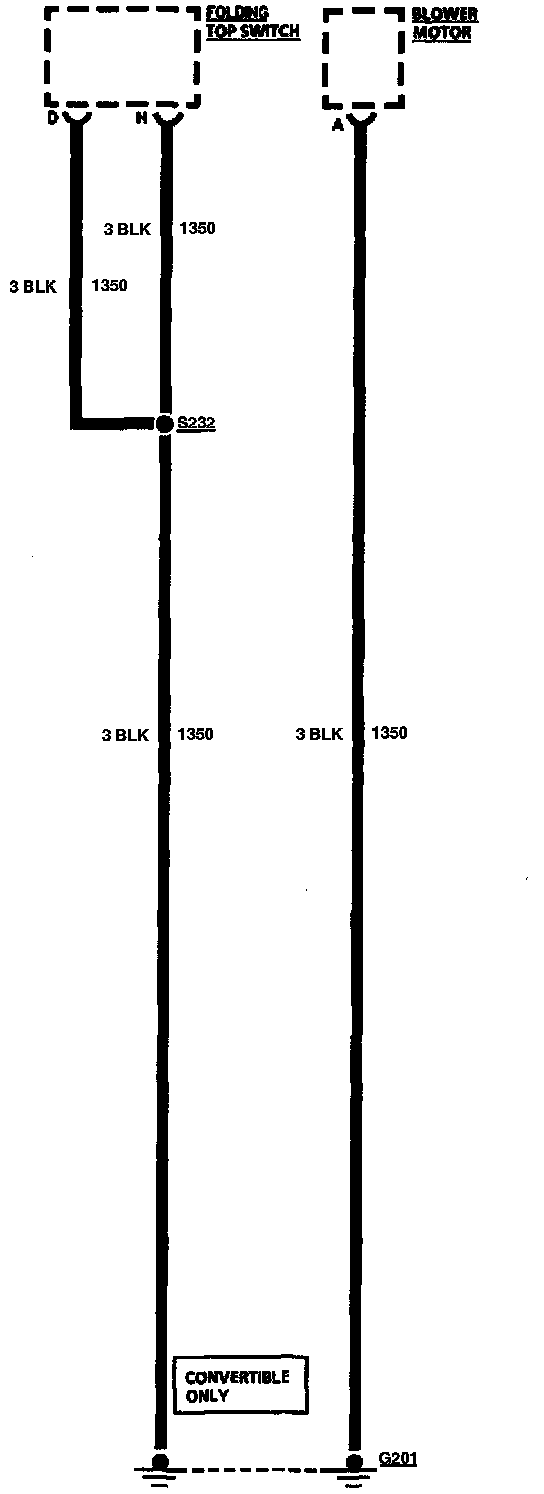

G201: Blower Motor And Convertible Folding Top Switch:
