Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Driver 6-Way

Driver 6-Way

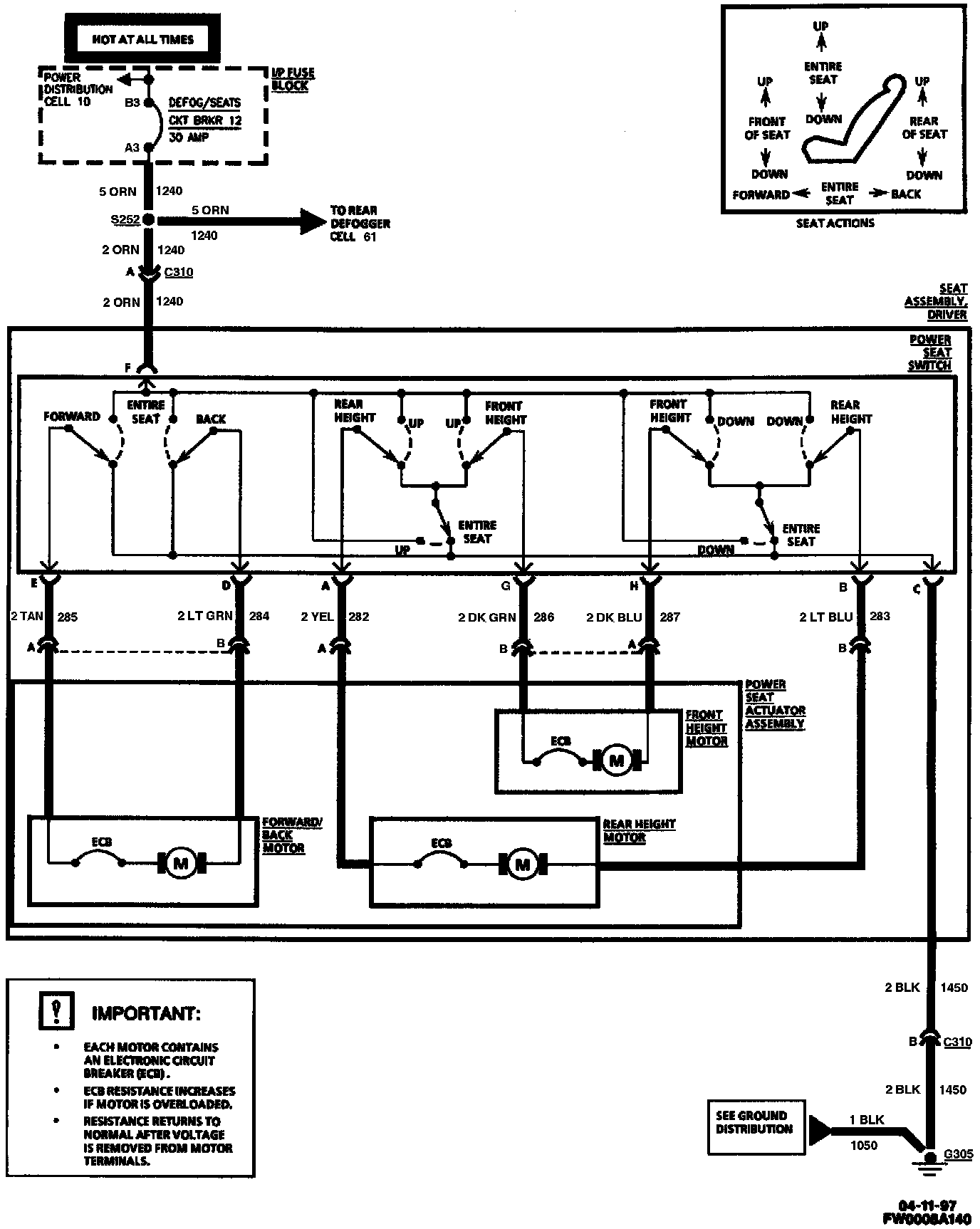

Power Seat: Driver 6-Way (AG1):
