Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio/Stereo
>>
UL0, UM6, UN0 W/UQ0 or U62 Entertainment Systems
UL0, UM6, UN0 W/UQ0 or U62 Entertainment Systems

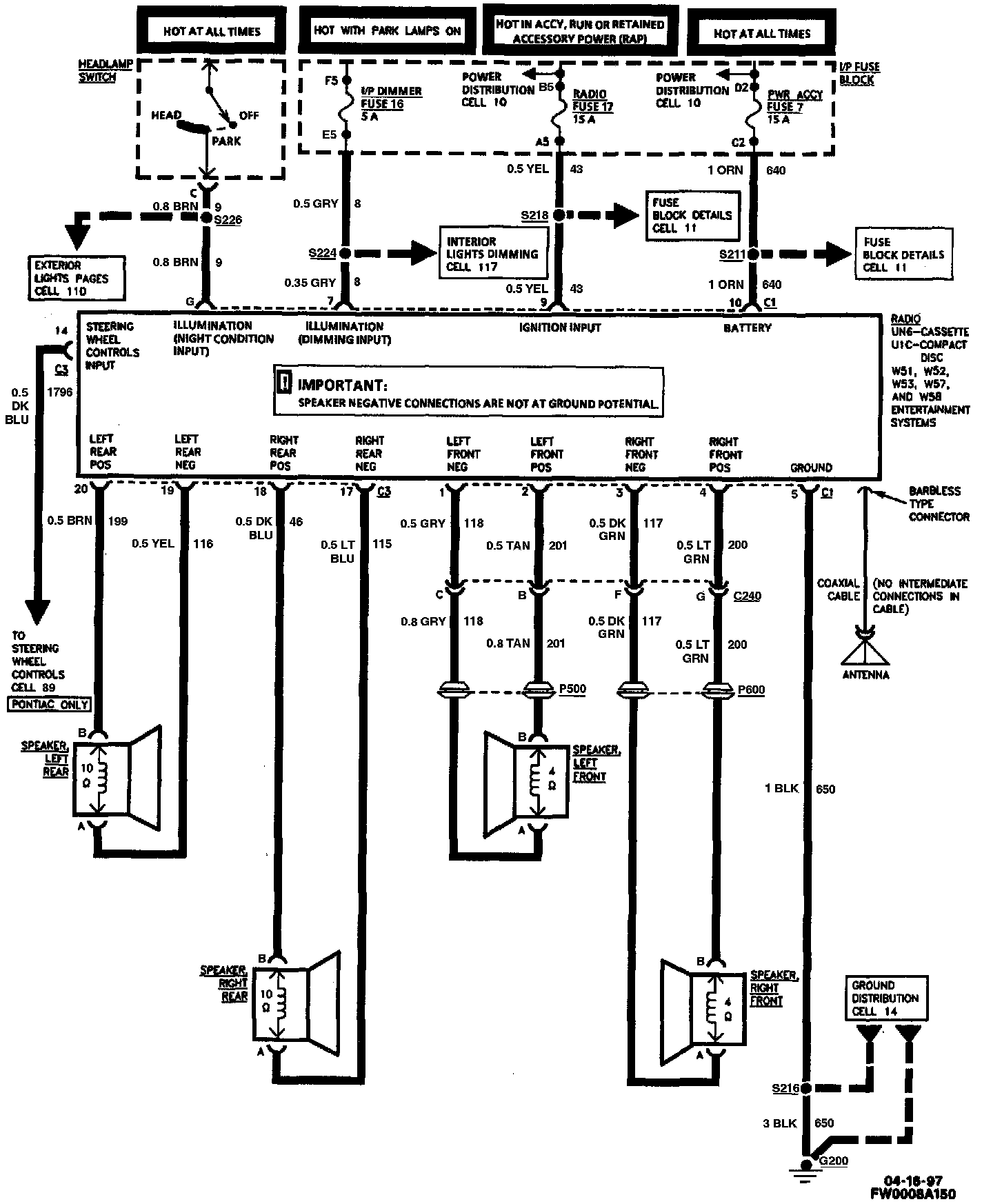

Radio/Audio System UL0, UM6, UN0 W/UQ0 Or U62 (Chevrolet) And W52, W53 (Pontiac) Entertainment Systems:
