Interior Lights Schematics (Without Door Jamb Switches)





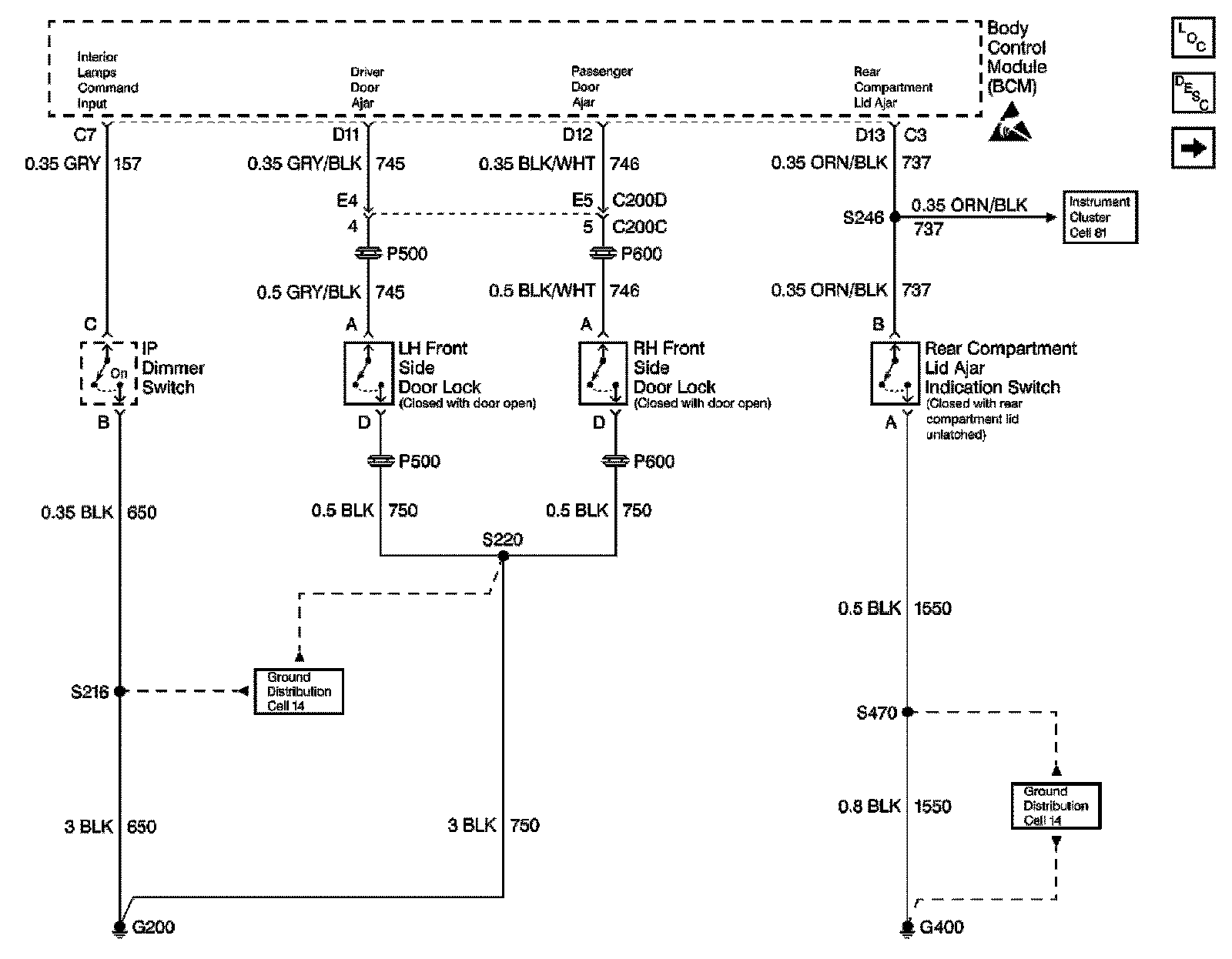

Cell 114: IP Dimmer Switch, Front Side Door Locks, Rear Compartment Lid Ajar Indication Switch

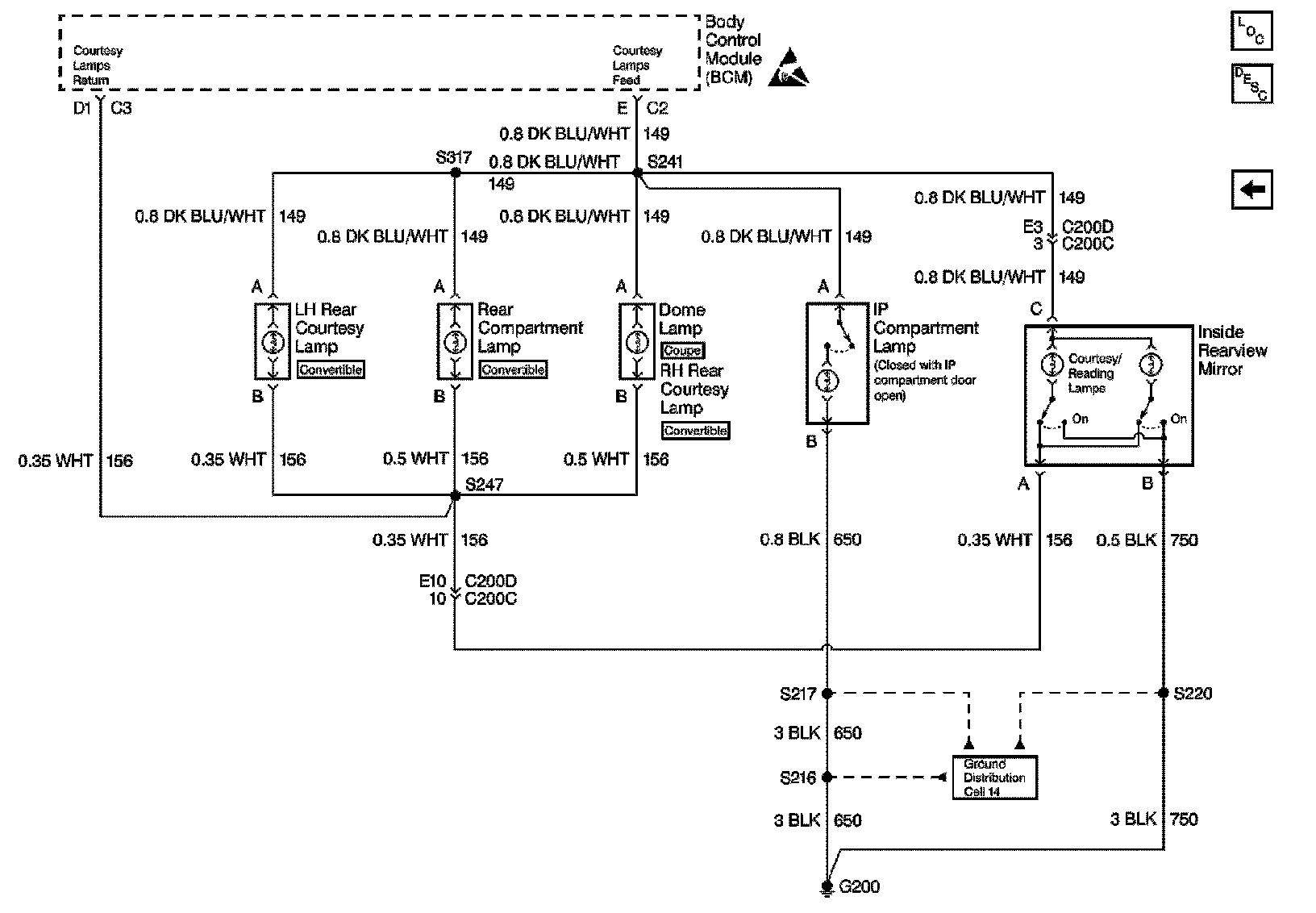

Cell 114: Rear Courtesy Lamps, Rear Compartment Lamp, Dome Lamp, IP Compartment Lamp
