Exterior Lights Schematics (Domestic)

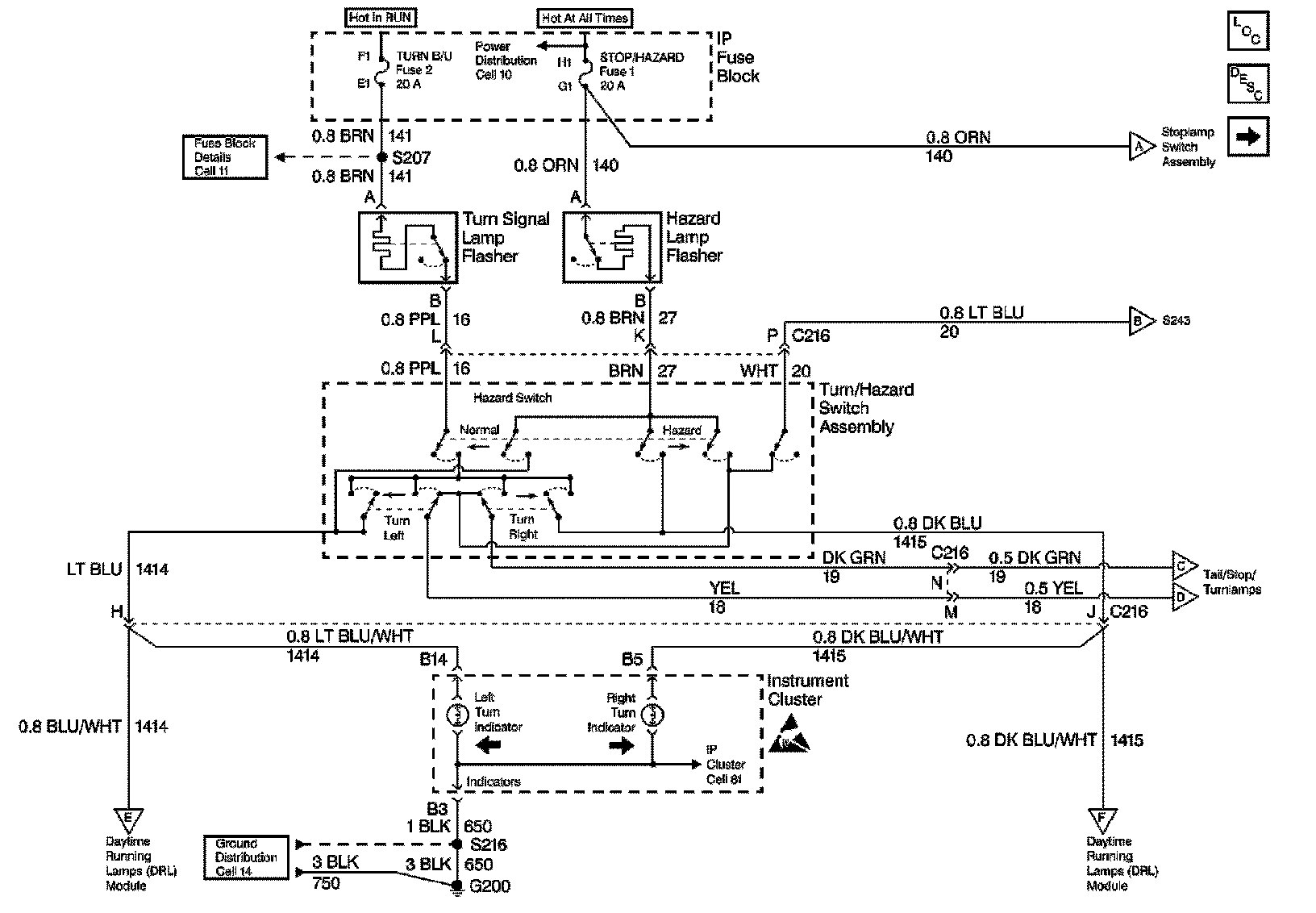

Cell 110: Tail/Stop/Turnlamps

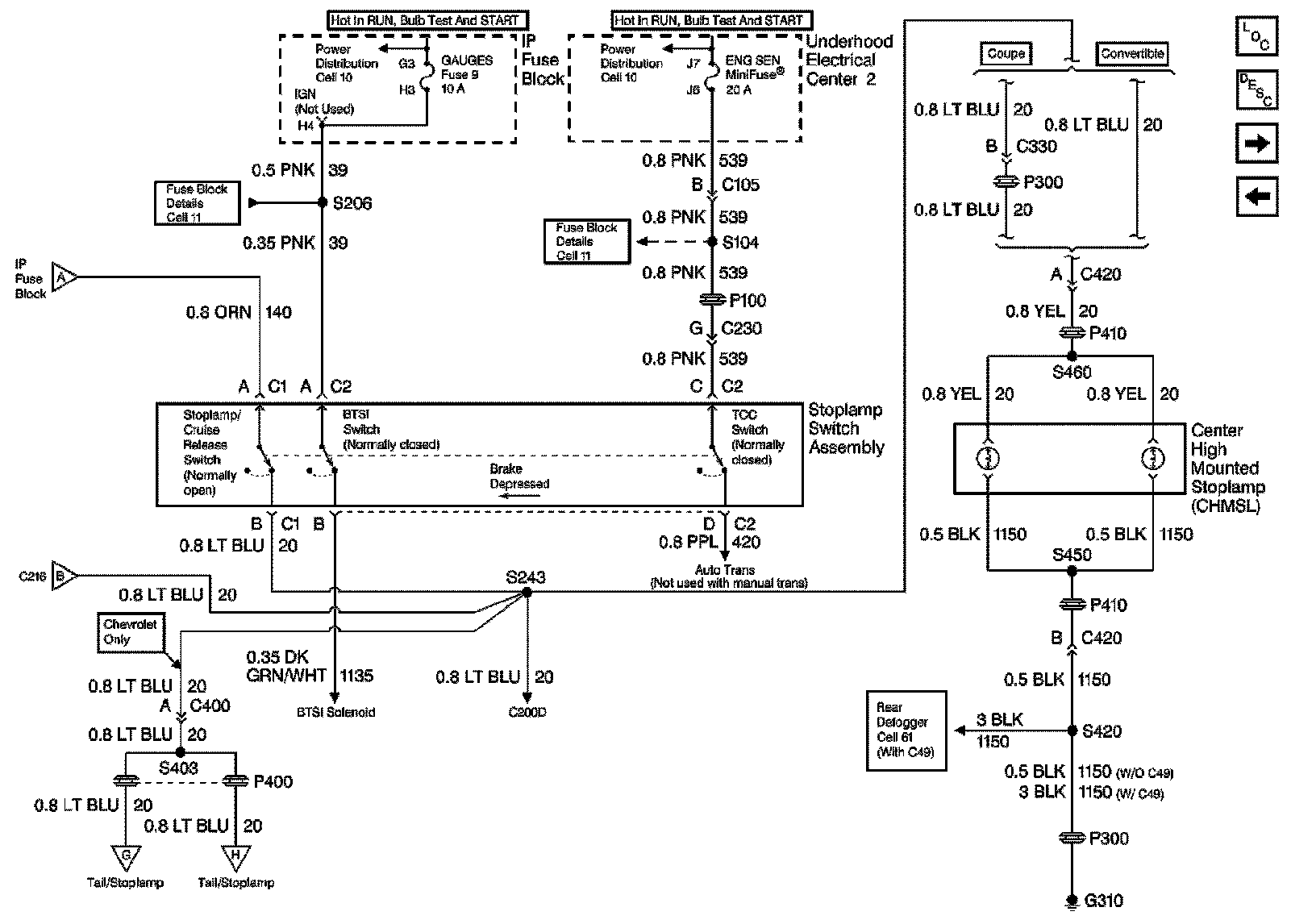

Center High Mounted Stoplamp Cell 110

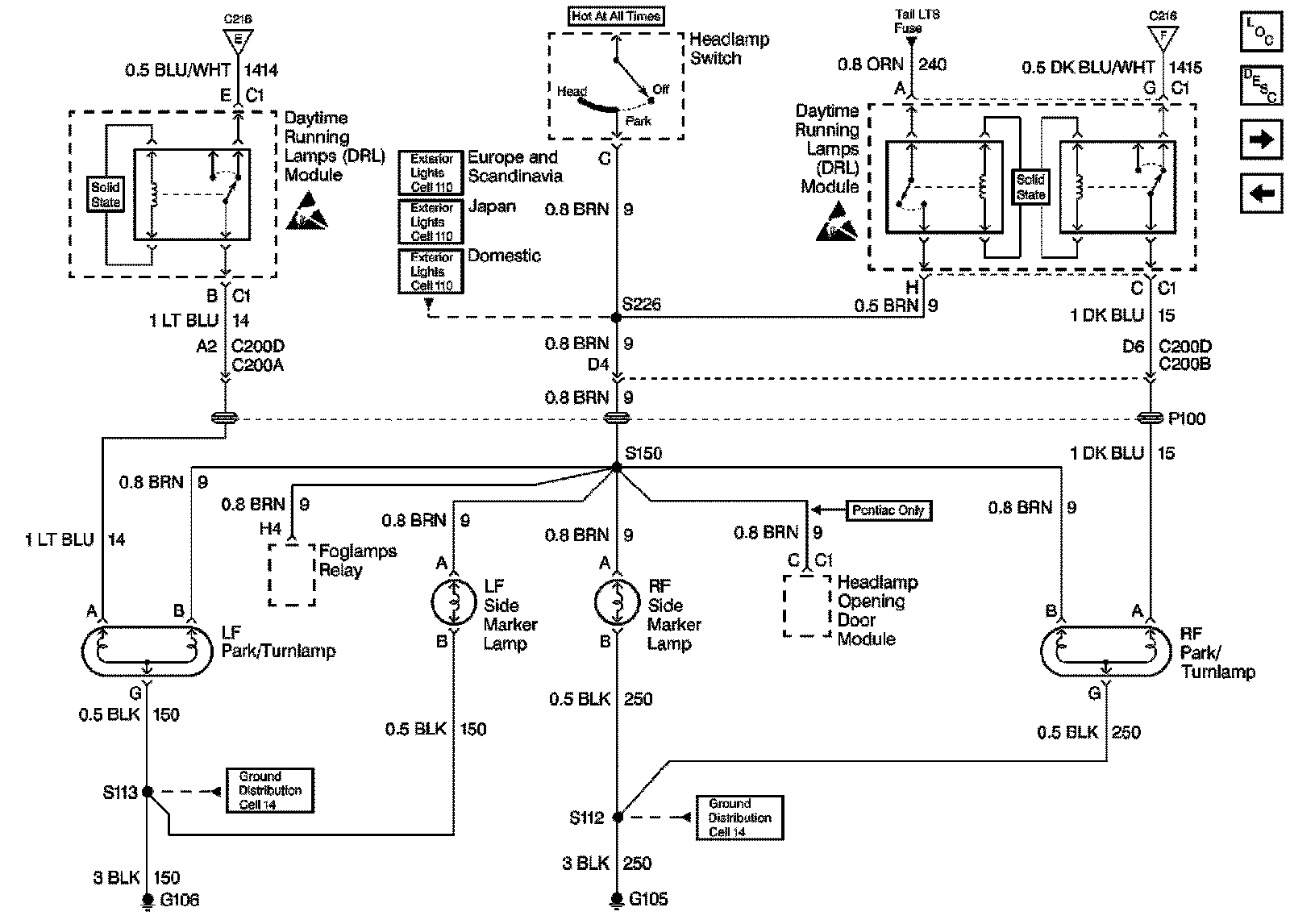

Cell 110: Left and Right Side Marker Lamps, Park/Turnlamps

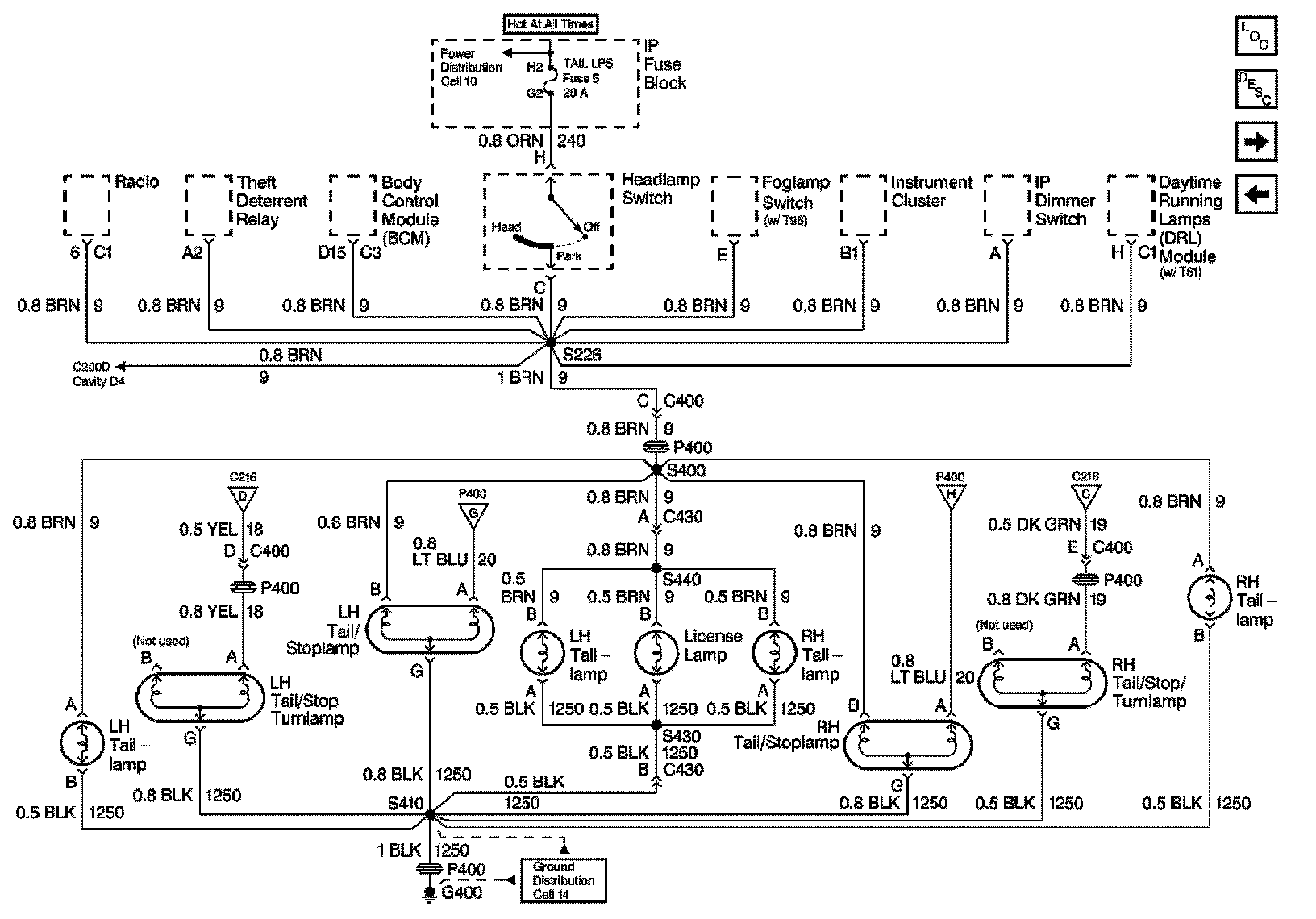

Cell 110: Right and Left Tail/Stoplamp, License Lamp, Tail/Stop/Turnlamps

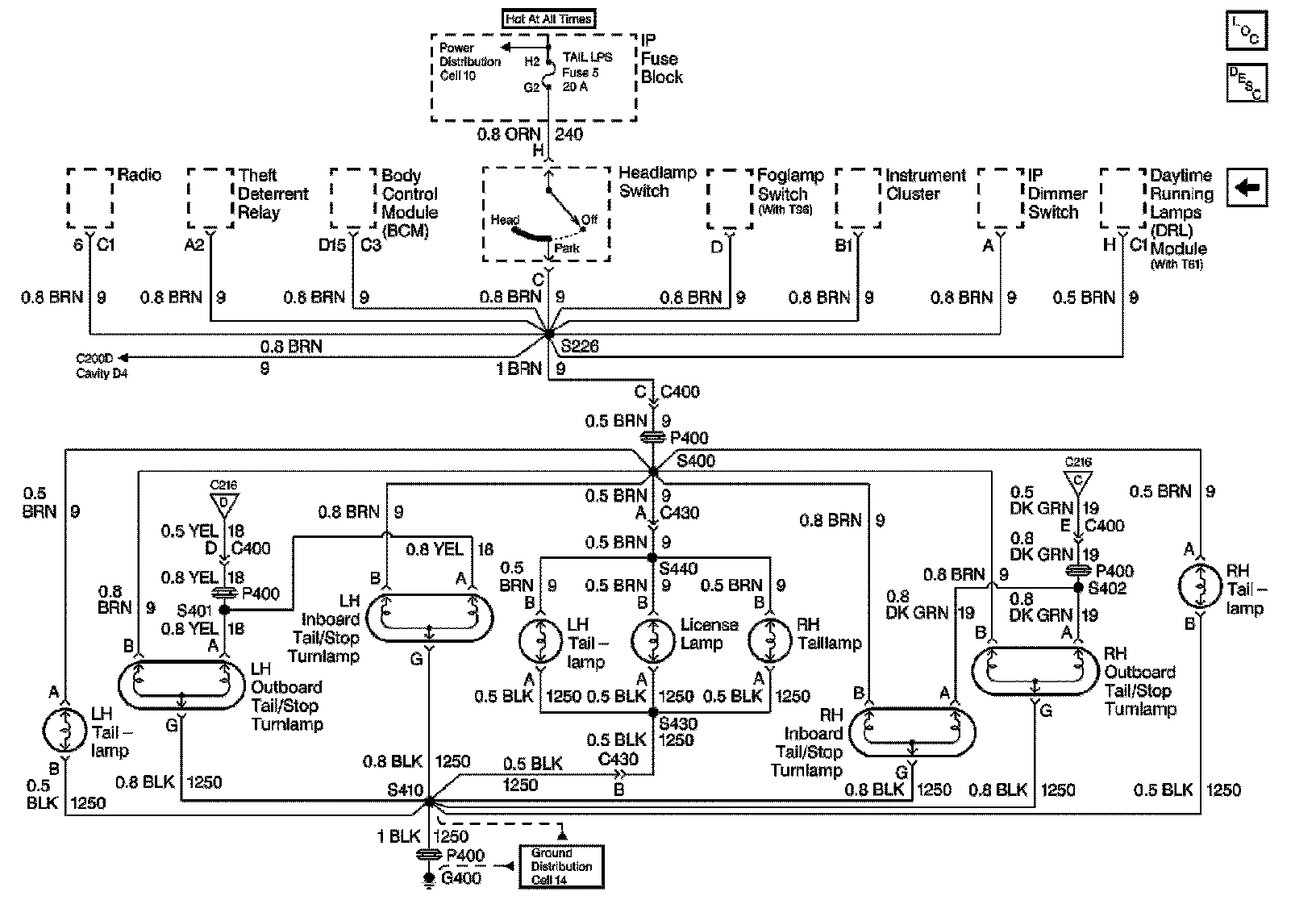

Cell 110: Taillamps, Outboard Tail/Stop Turnlamps, Inboard Tail/SToP Turnlamps, License Lamp (Pontiac)
