Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module

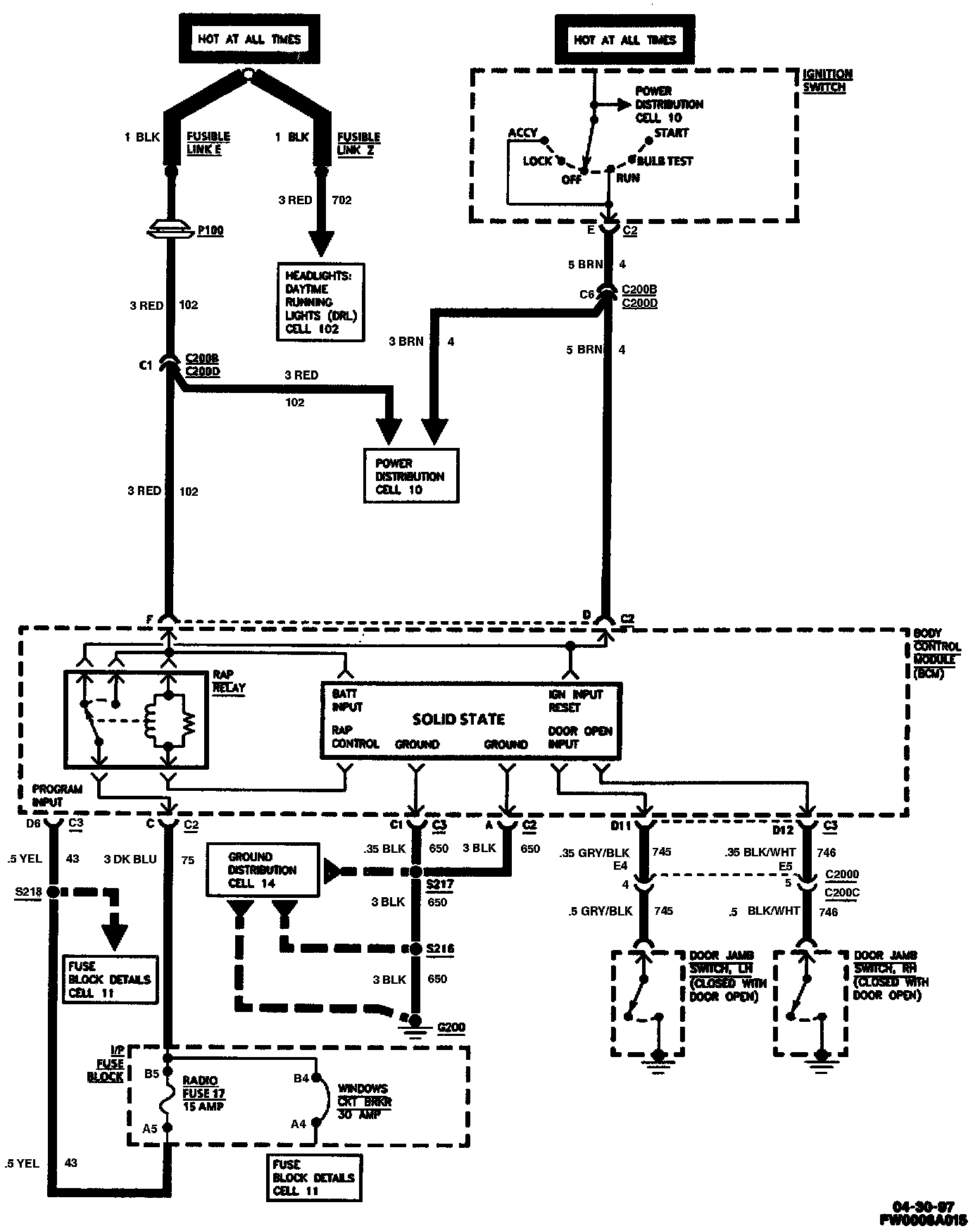

Accessory Delay Module

Retained Accessory Power (RAP):
