Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, A/T >> TCC Solenoid Valve Connector, Wiring Harness Side

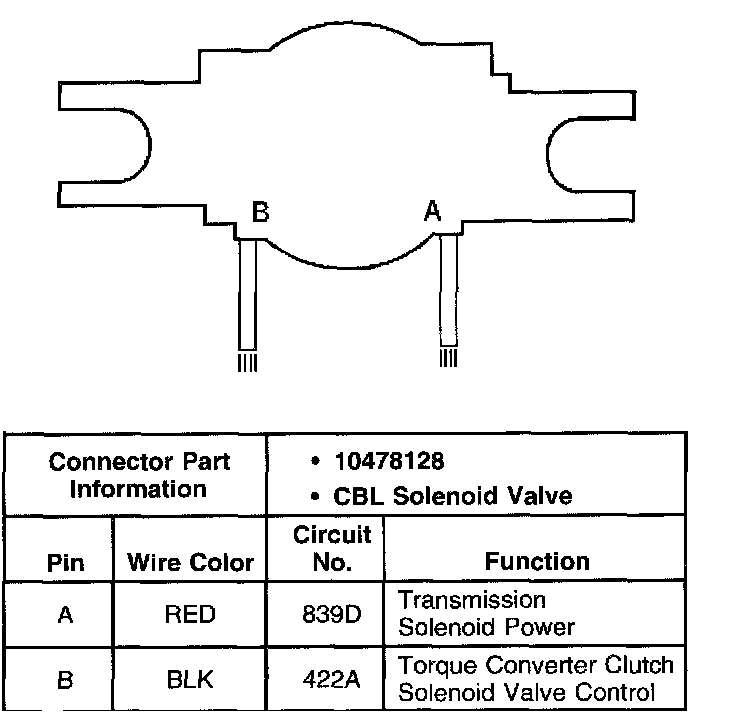

TCC Solenoid Valve Connector, Wiring Harness Side
