Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, A/T >> 2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

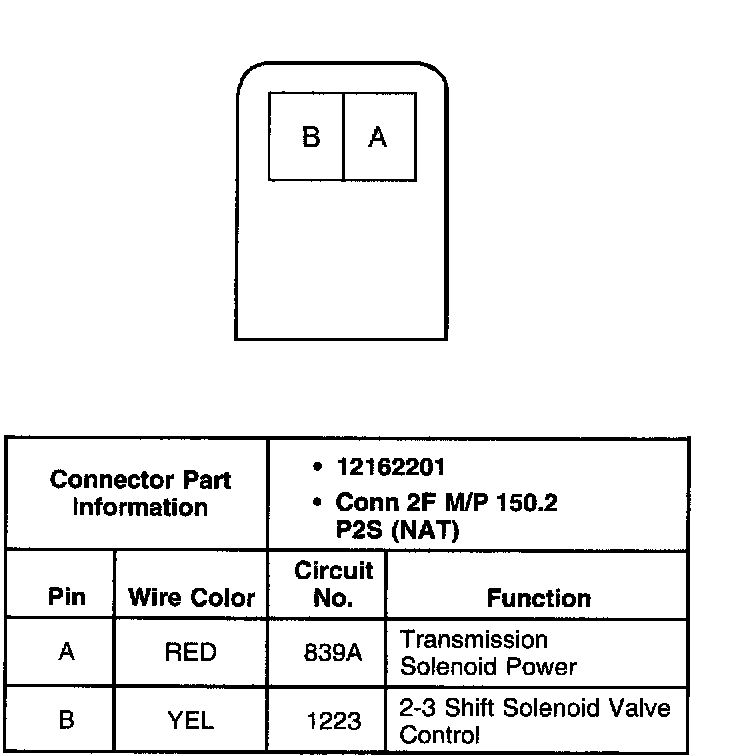

2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side
