Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

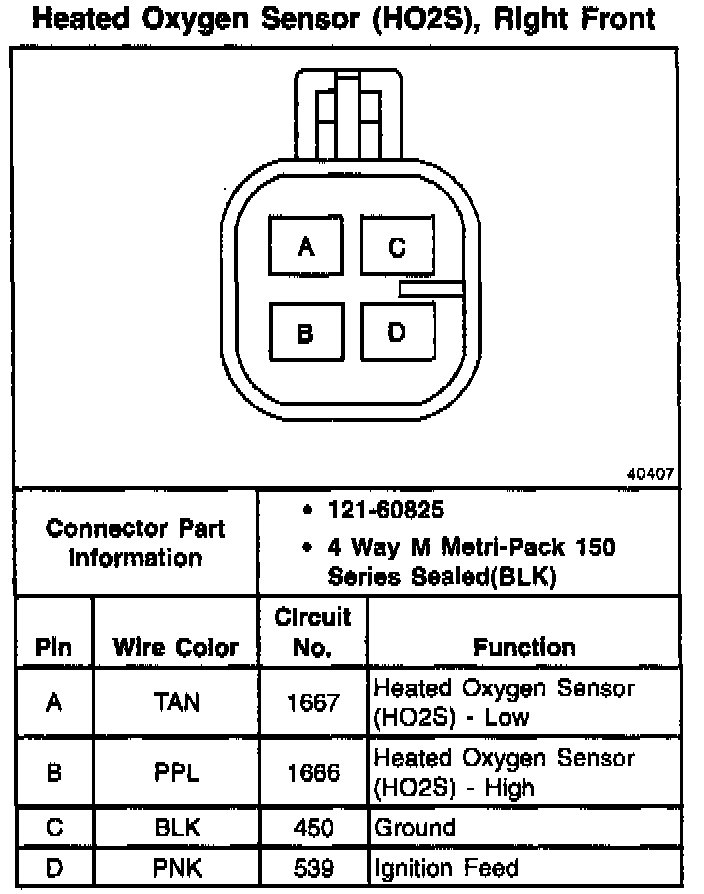

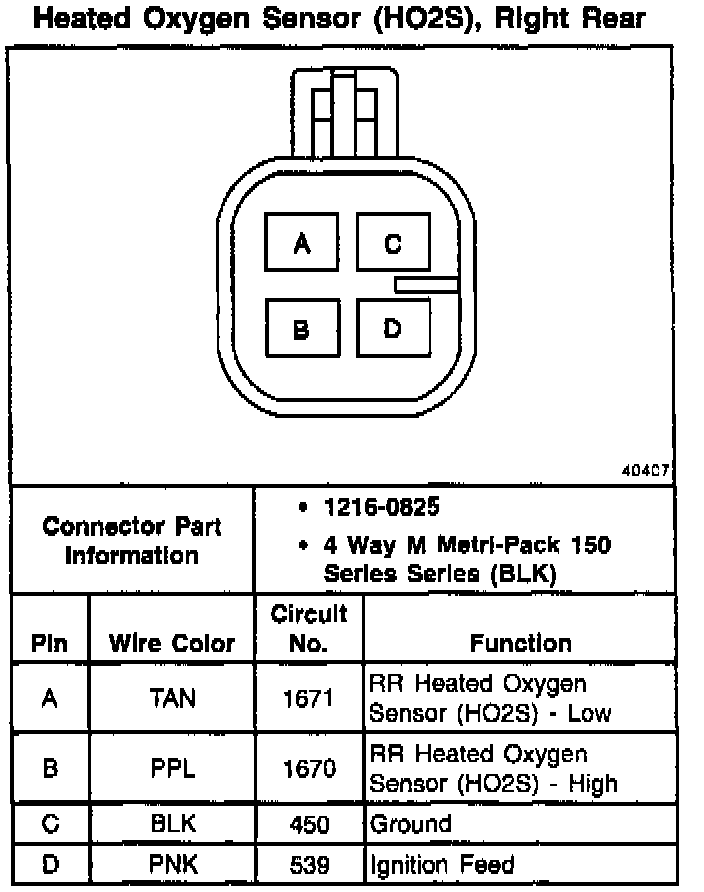

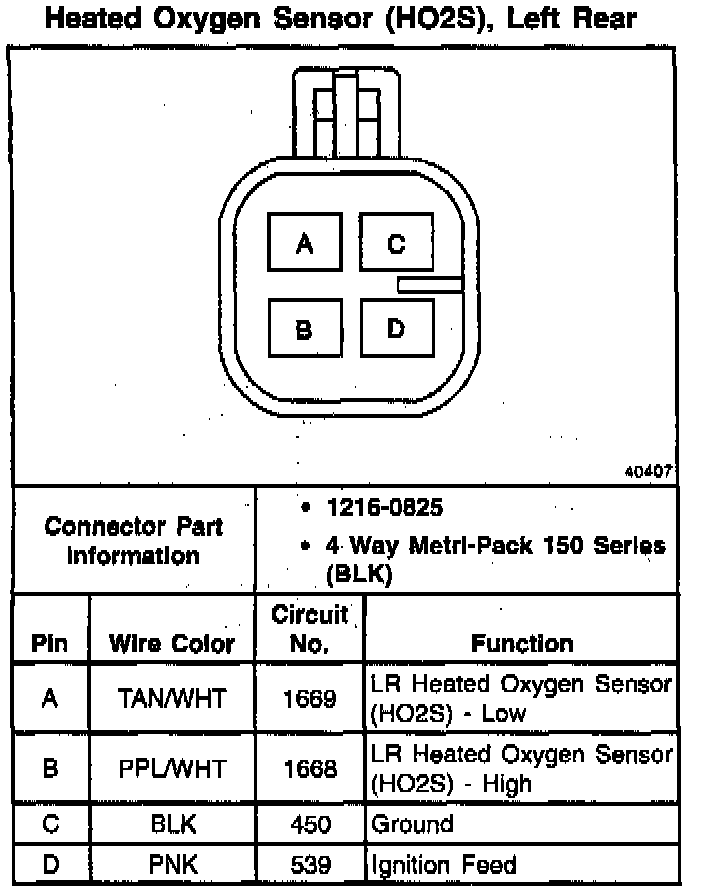

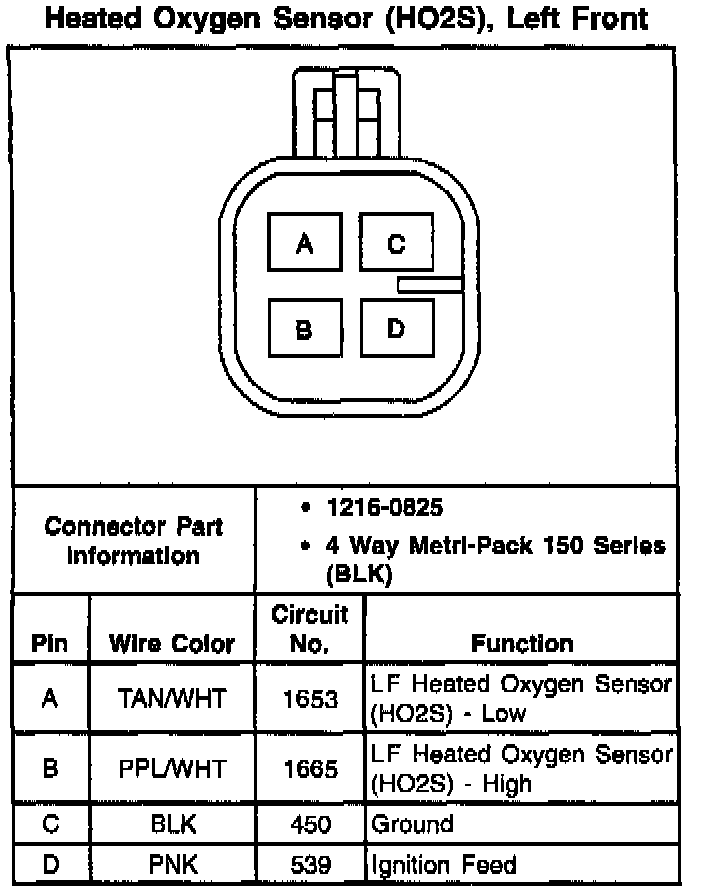

Oxygen Sensor
Oxygen Sensor
Connector:
Connector:
Connector:
Connector:
