Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

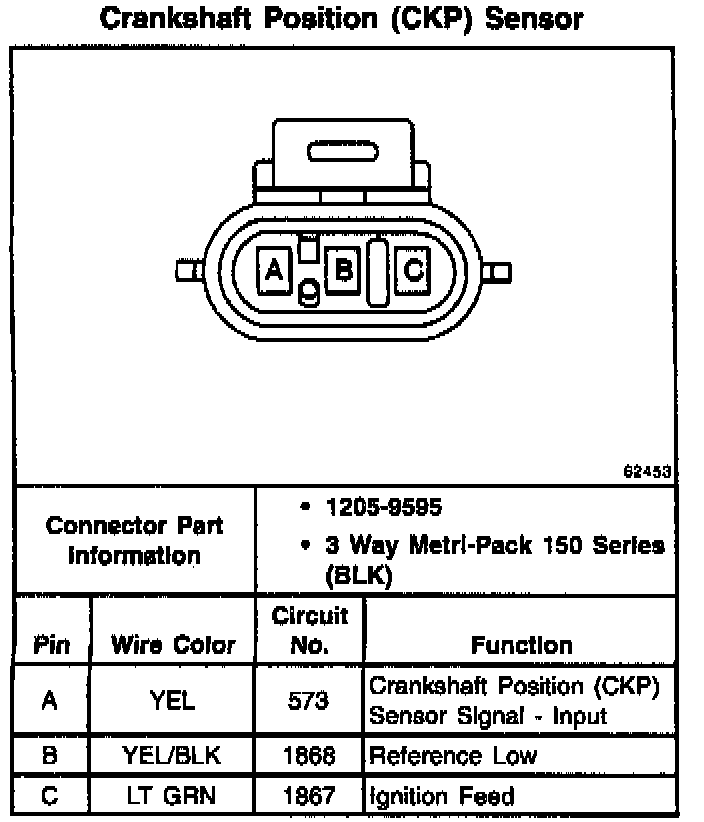

Crankshaft Position Sensor
Crankshaft Position Sensor
Connector:
