Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C400-C499 >> C400

C400

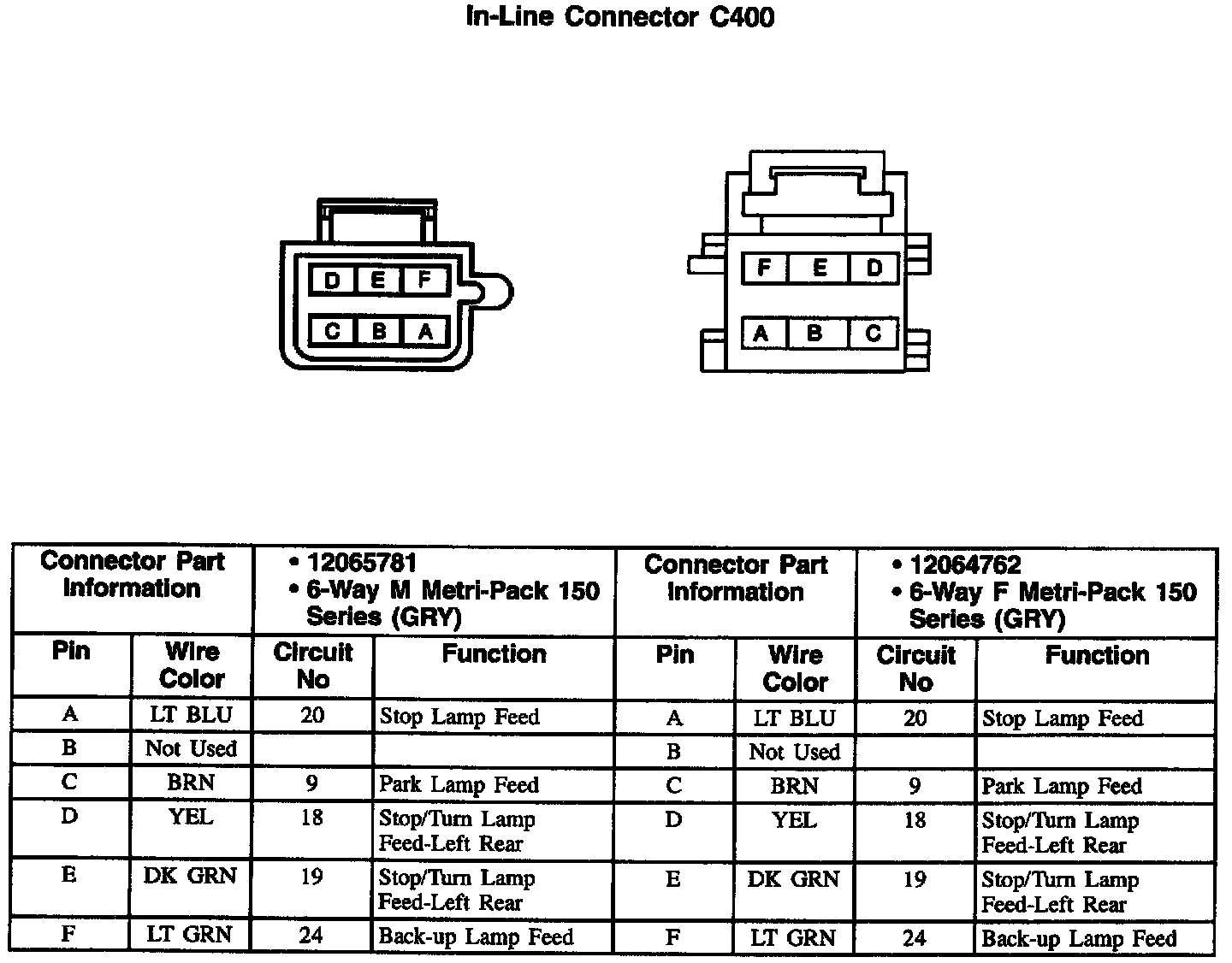

In-Line Connector C400:
