Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C200-C299 >> C240

C240

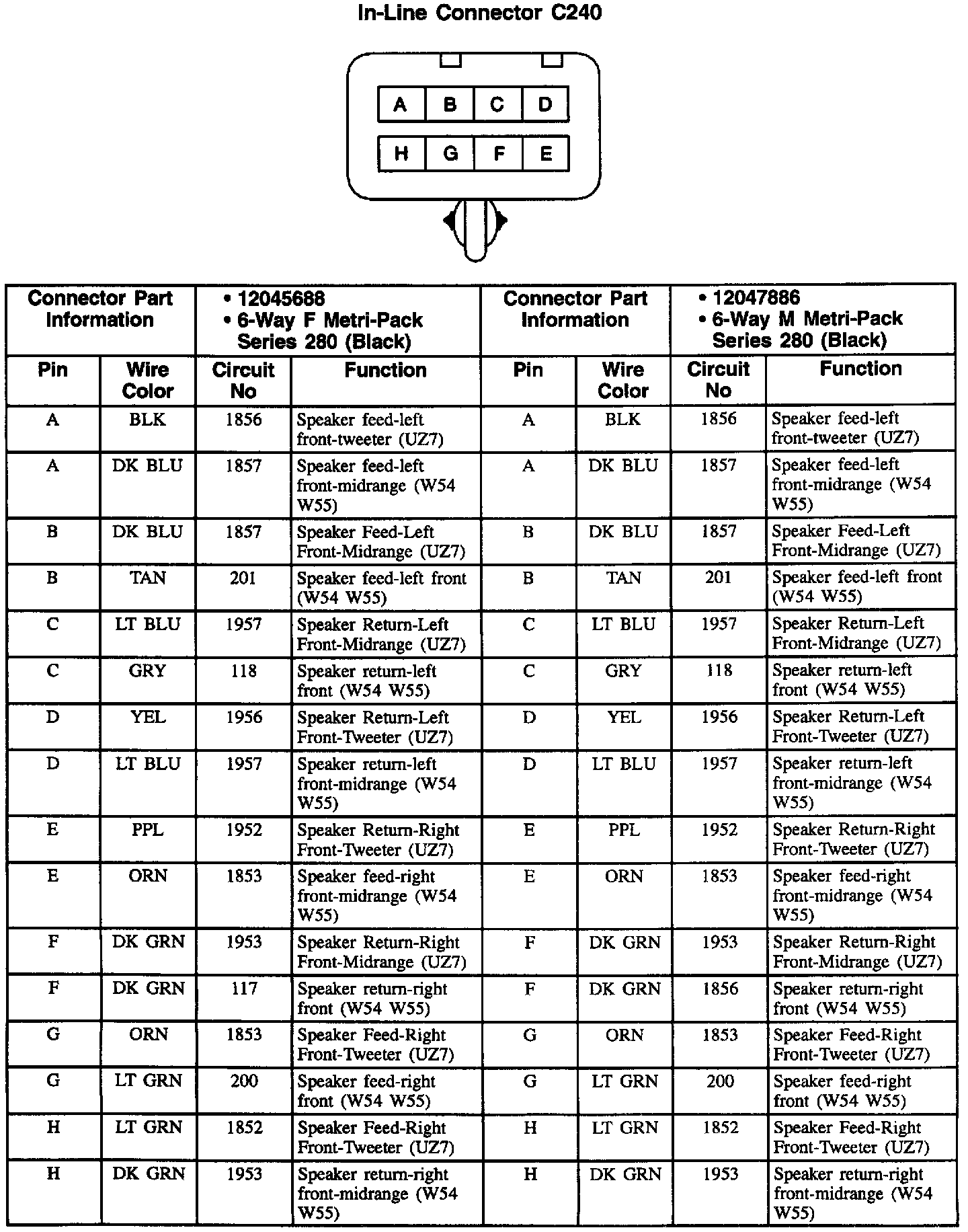

In-Line Connector C240:
