C200D

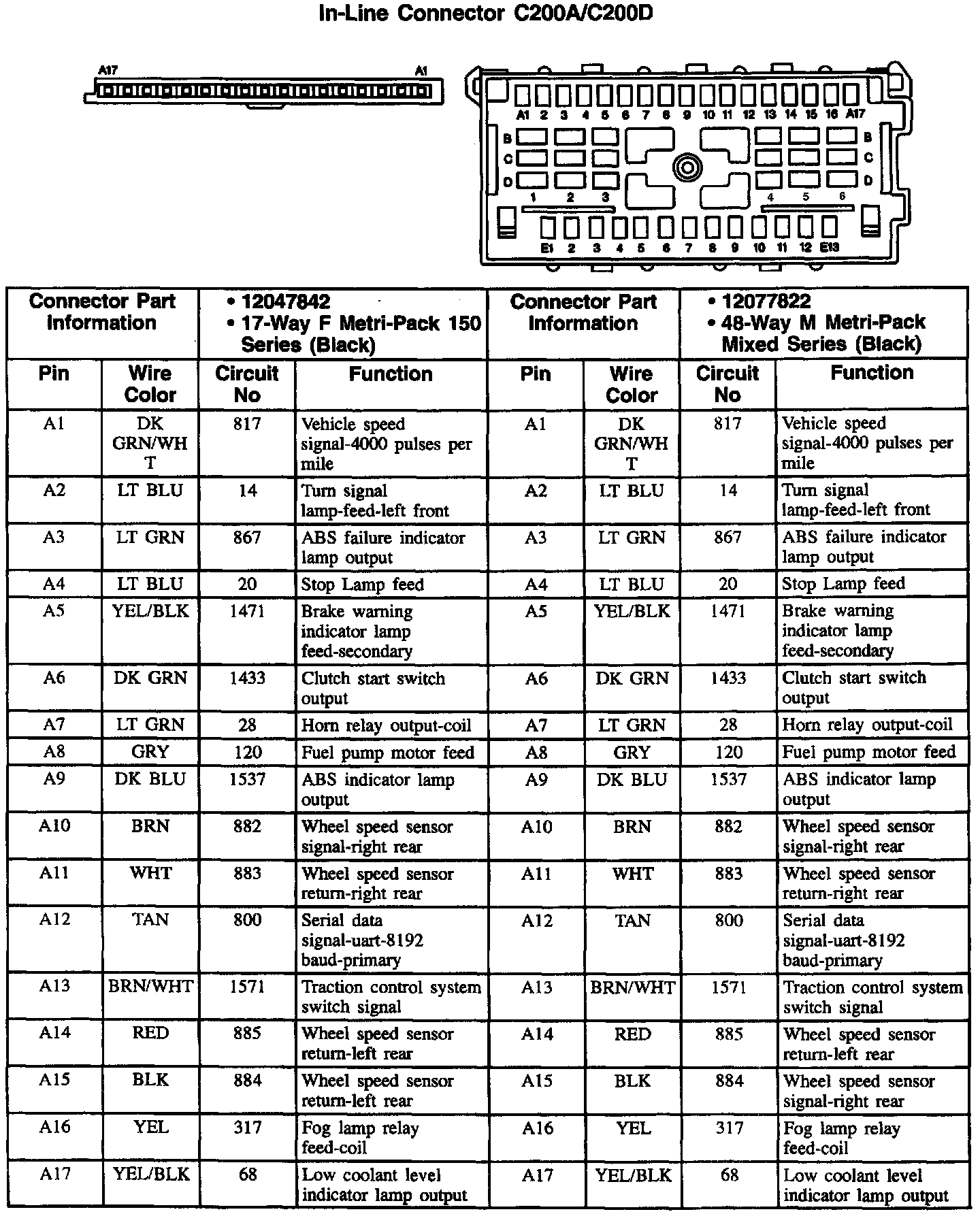

In-Line Connector C200A/C200D:

In-Line Connector C200B/C200D:

In-Line Connector C200B/C200D (Part 1 Of 2):

In-Line Connector C200B/C200D (Part 2 Of 2):

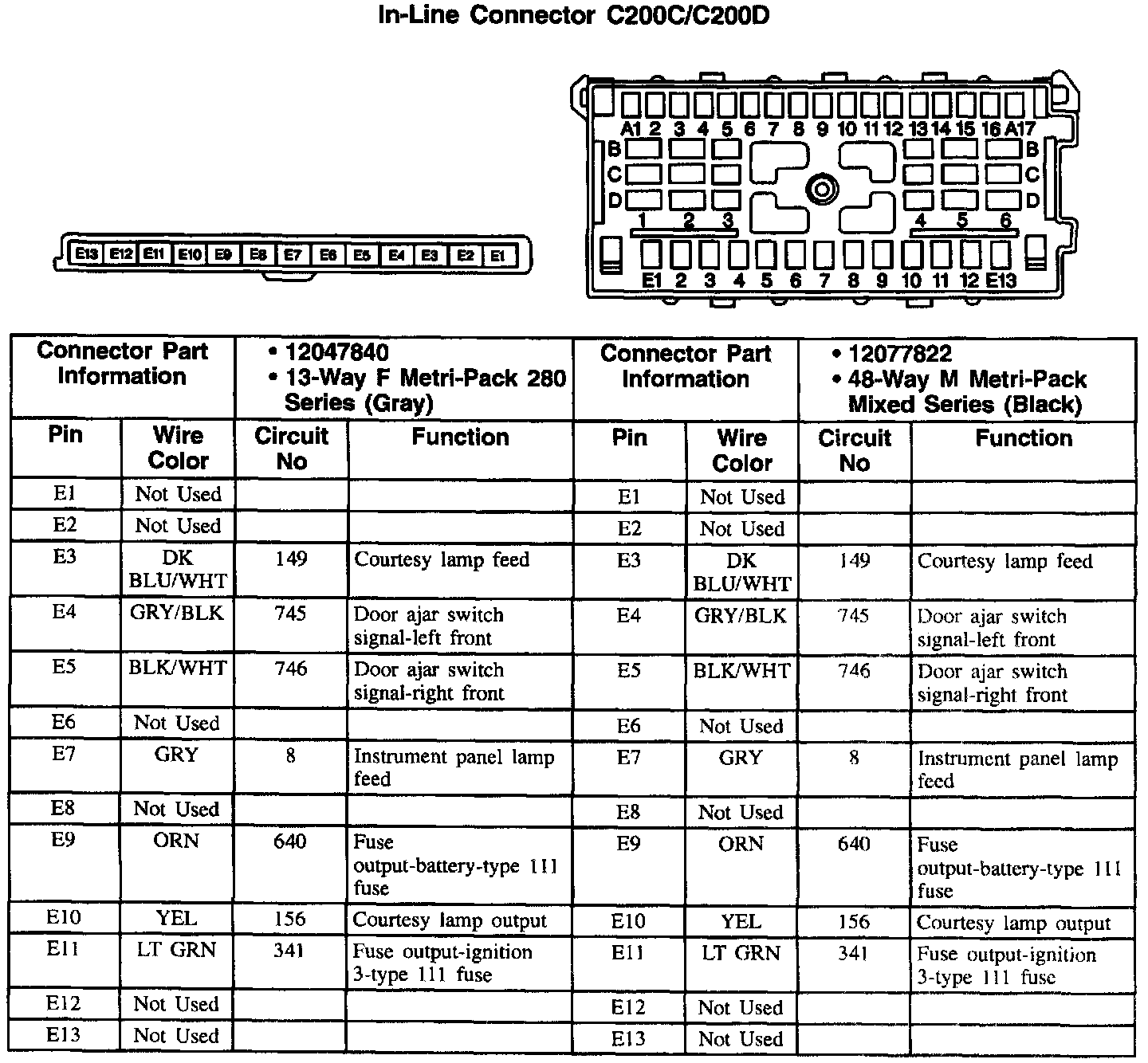

In-Line Connector C200C/C200D:
