C200B
C200B

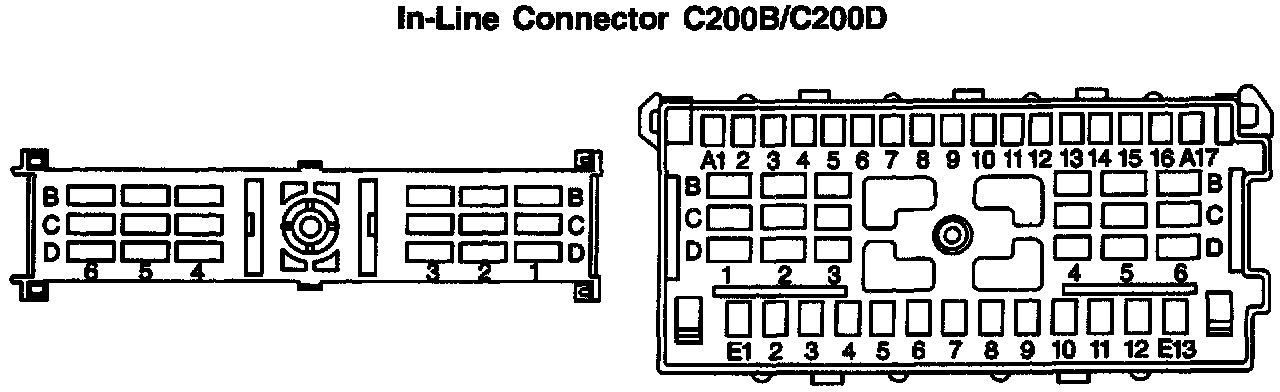

In-Line Connector C200B/C200D:

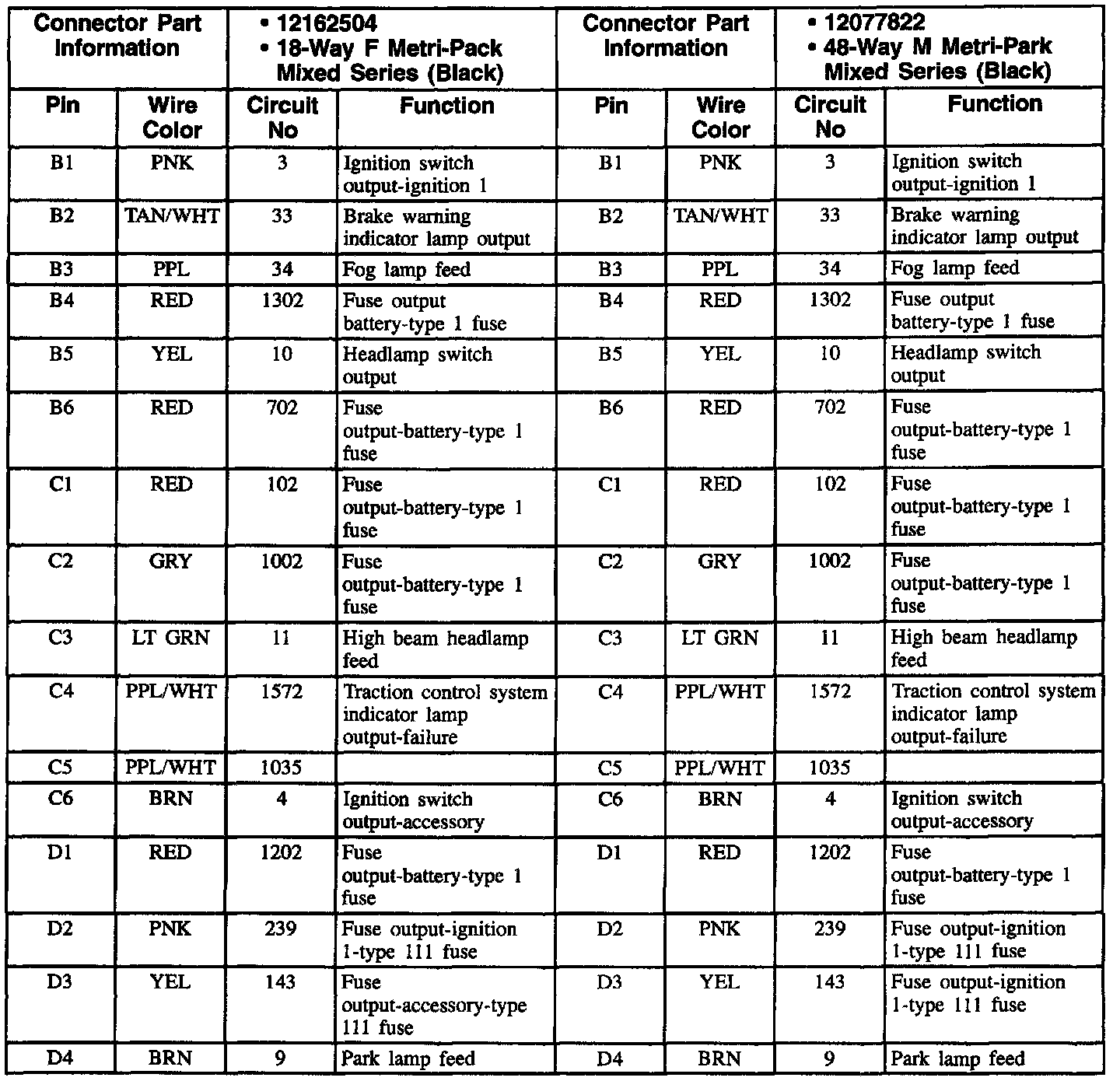

In-Line Connector C200B/C200D (Part 1 Of 2):

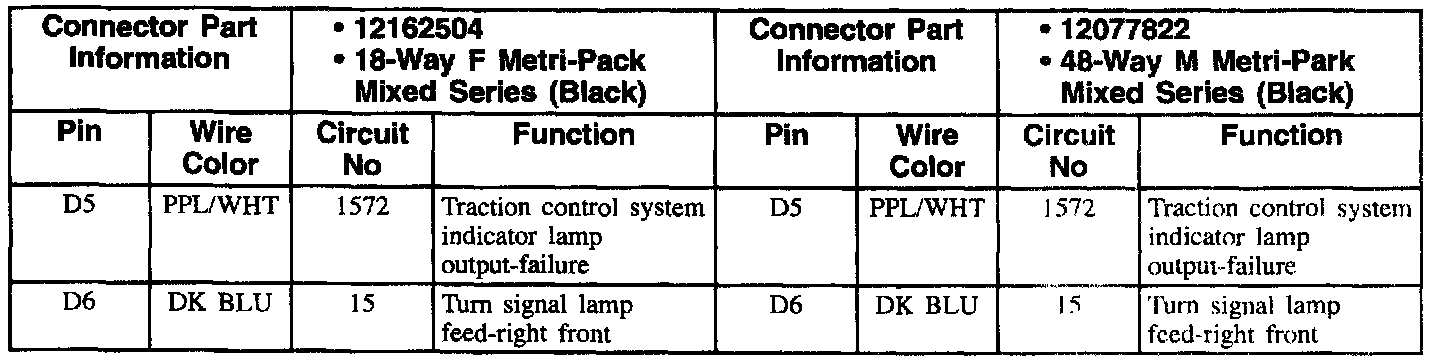

In-Line Connector C200B/C200D (Part 2 Of 2):
