Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C100-C199 >> C108

C108

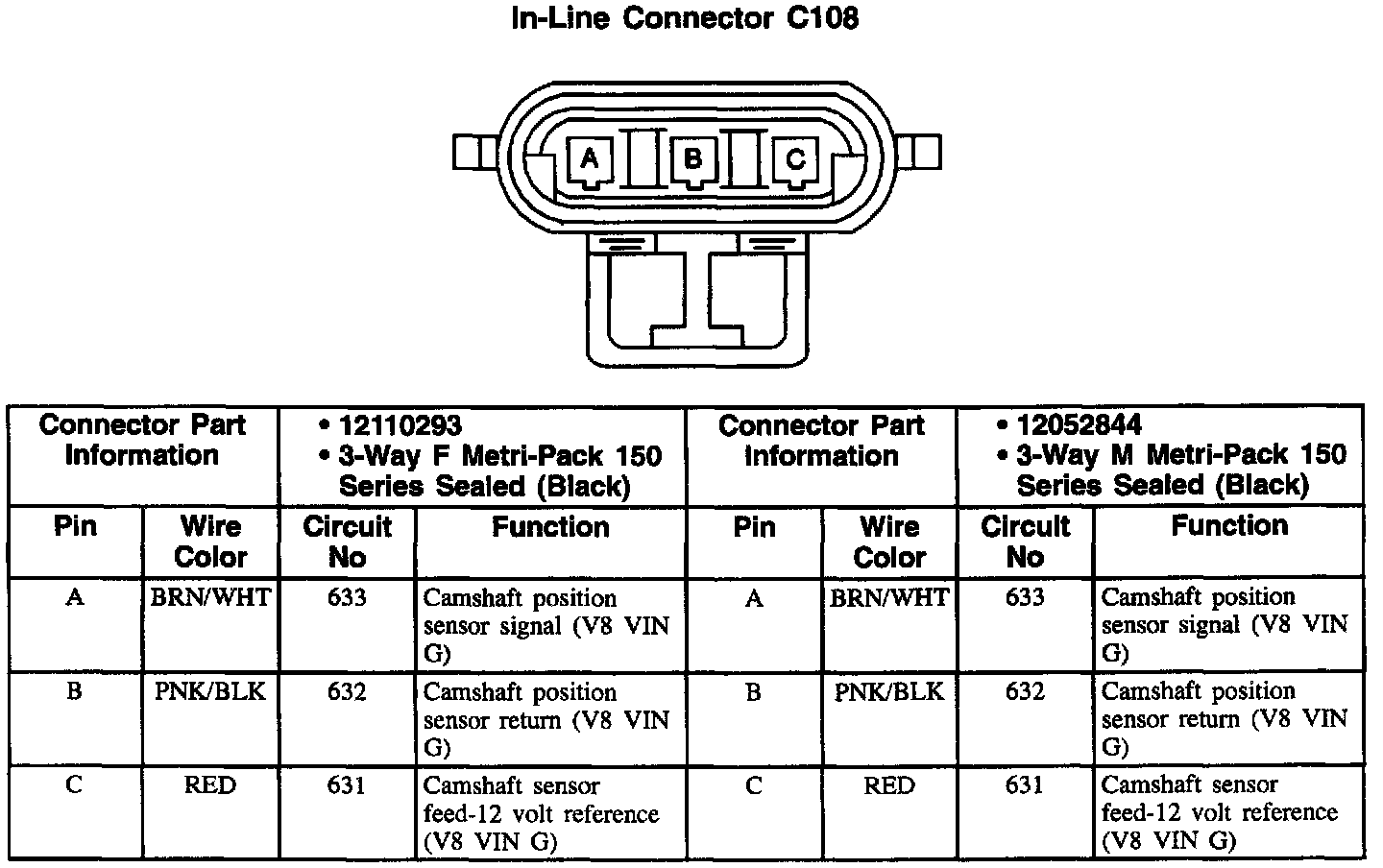

In-Line Connector C108:
