Vacuum Brake Booster Check Valve: Service and Repair

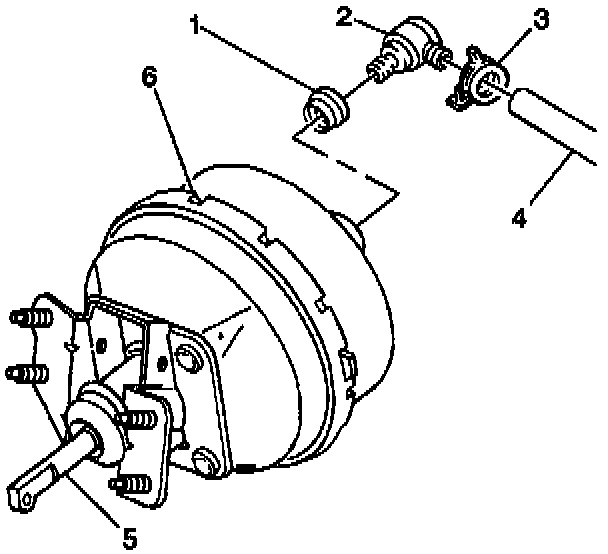

REMOVAL PROCEDURE

Important: The vacuum check valve and the grommet may be inspected and serviced without removing the booster from the vehicle.

1. Disconnect the clamp (3) and the vacuum hose (4) from the vacuum check valve (2).
2. Remove the check valve (2) and the grommet (1).
3. Inspect the grommet and the vacuum hose for the following conditions:
^ Cuts
^ Nicks
^ Excessive wear
Replace the grommet or vacuum hose if damage is evident.
4. Clean all the parts in denatured alcohol.
5. Dry all the parts. Use non-lubricated compressed air.

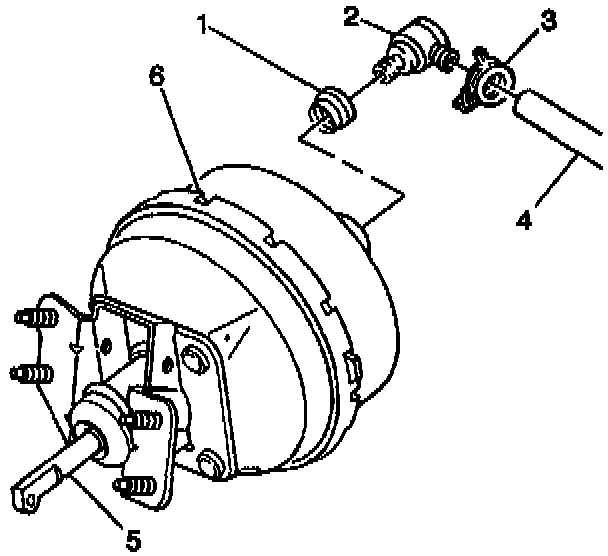

INSTALLATION PROCEDURE
1. Lubricate the inner and outer diameters of the grommet (1). Use a thin layer of silicone grease.
2. Install the grommet and the check valve (2).
3. Connect the vacuum hose (4) and the clamp (3) to the vacuum check valve (2).
