Rear Brake Hose Replacement (Rear Brake Hose)

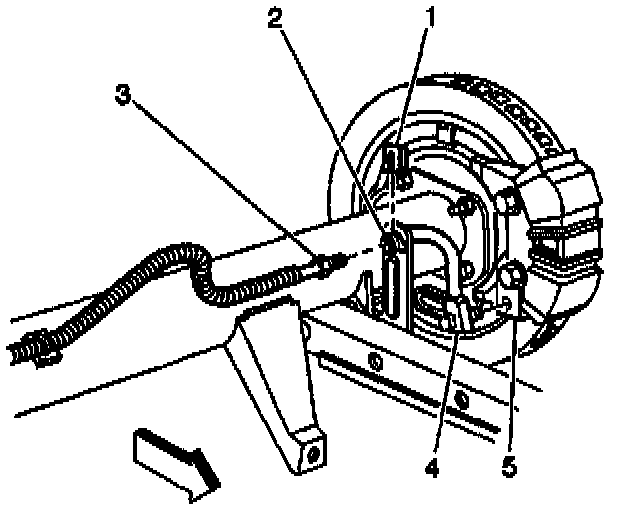

REMOVAL PROCEDURE
1. Remove the wheel and the tire.
2. Clean all dirt and foreign material from the hose and fitting (4).
3. Remove the rear brake hose (2) from the rear brake pipe (3).
^ Use a backup wrench on the hose fitting (2).
^ Do not bend the rear brake hose bracket or the rear brake pipe (3).
4. Remove the rear brake hose retainer (1) from the brake hose bracket and the rear brake hose (2).
5. Remove the following components from the rear brake caliper (5):
^ The brake hose fitting bolt (4)
^ Two brake hose fitting gaskets
^ Discard the brake hose fitting gaskets.
^ The rear brake hose (2)

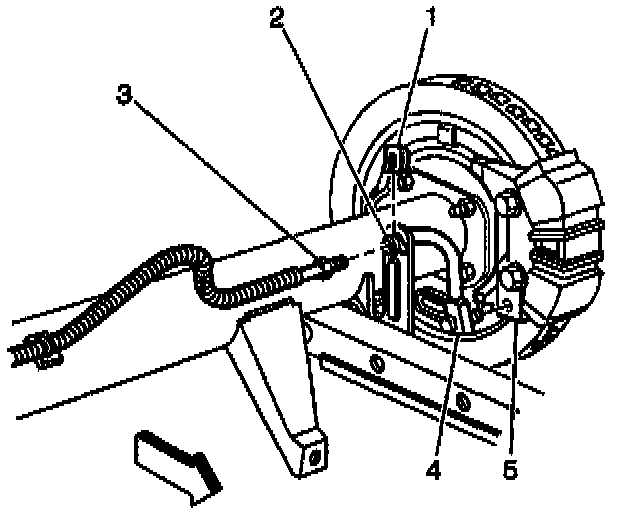

INSTALLATION PROCEDURE
1. Lubricate the bolt fitting threads. Use clean brake fluid.
2. Install the following components to the rear brake caliper (5):
^ The brake hose fitting (4)
^ Two new brake hose fitting gaskets
^ The rear brake hose (2)

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Ensure that the hose fitting flange engages the caliper orientation ledge.

Tighten the rear brake hose fitting (4) to 40 Nm (30 ft. lbs.).

4. Install the rear brake hose retainer (1) to the brake hose bracket and the brake hose (2).
5. Install the rear brake hose (2) to the rear brake pipe (3).
^ Use a backup wrench on the hose fitting (2).
^ Do not bend the brake hose bracket or the brake pipe (3).

Tighten the rear brake pipe (3) to the brake hose (2) to 17 Nm (13 ft. lbs.).

6. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding.
7. Install the wheel and the tire.
