Rear Brake Hose Replacement (Center, W/O Tractn CNTRL, Disc)

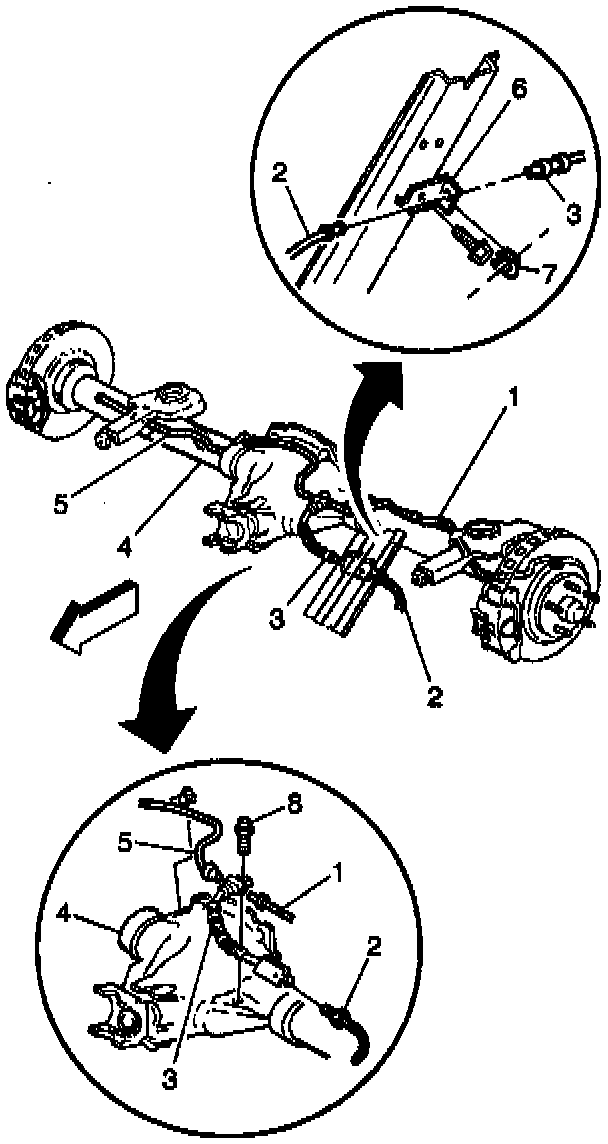

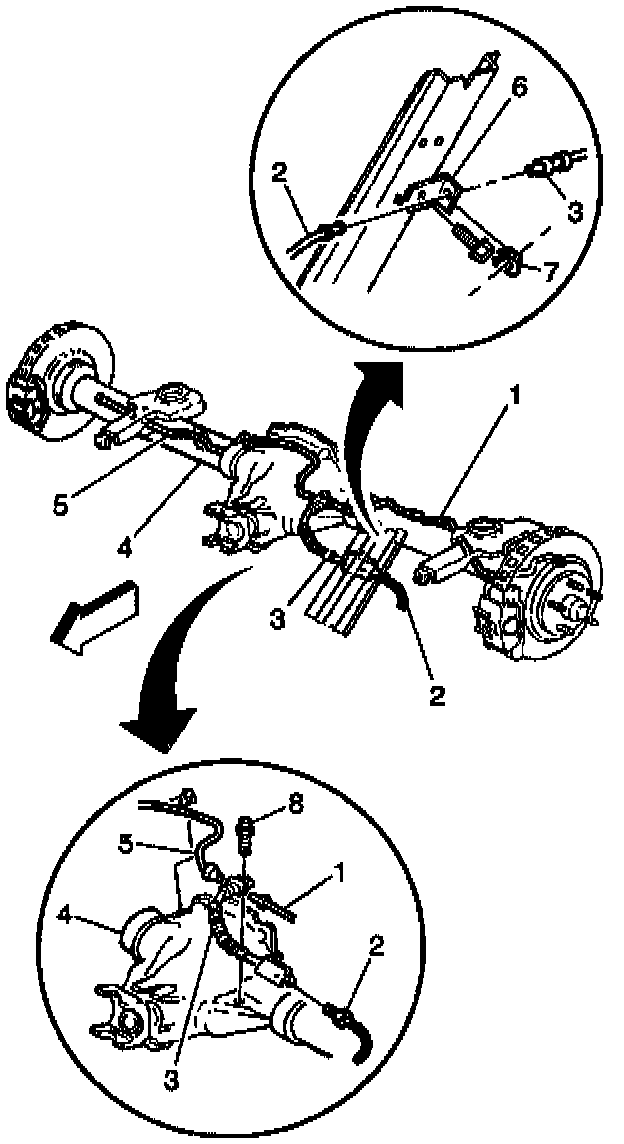

REMOVAL PROCEDURE
1. Raise and support the vehicle.
2. Clean all dirt and foreign material from the brake hose (3) and the brake pipe fittings.
3. Remove the rear brake front pipe (2) from the brake hose (3).
^ Use a backup wrench on the brake hose fitting.
^ Do not bend the brake hose bracket (6) or the brake front pipe (2).
4. Remove the brake hose retainer (7) from the brake hose bracket (6) and the brake hose (3).
5. Remove the rear brake hose (3).
6. Remove the left rear pipe (1) and the right rear pipe (5) from the hose (3). Do not bend the left rear pipe (1) or the right rear pipe (5).
7. Note the position of the brake hose (3) for proper location during installation.
8. Remove the rear brake hose fitting bolt/screw (8) and the brake hose (3) from the rear axle (4).





INSTALLATION PROCEDURE

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Install the brake hose (3) and the brake hose fitting bolt/screw (8) to the rear axle (4).

Tighten the rear brake (center) hose fitting bolt/screw (8) to 21 Nm (15 ft. lbs.).

2. Install the left rear pipe (1) and the right rear pipe (5) to the brake hose (3).

Tighten:
^ Tighten the left rear pipe (1) and the right rear pipe (5) at the rear brake (center) hose (3) to 24 Nm (18 ft. lbs.).
^ Tighten the left rear pipe (1) and the right rear pipe (5) at the left hand brake hose to 17 Nm (13 ft. lbs.).

3. Install the brake hose (3) into the brake hose bracket (6). Ensure that the brake hose (3) is properly seated and not twisted.
4. Install the rear brake hose retainer (7) to the rear brake hose bracket (6) and the brake hose (3).
5. Install the rear brake front pipe (2) to the brake hose (3).
^ Use a backup wrench on the brake hose (3).
^ Do not bend the brake hose bracket (6) or the rear brake front pipe (2).

Tighten the rear brake front pipe (2) to the rear brake (center) hose (3) to 15 Nm (11 ft. lbs.).

6. Bleed the brake hydraulic system. Refer to Hydraulic Brake System Bleeding (ABS who Traction Control)
7. Lower the vehicle.
