Front Brake Hose

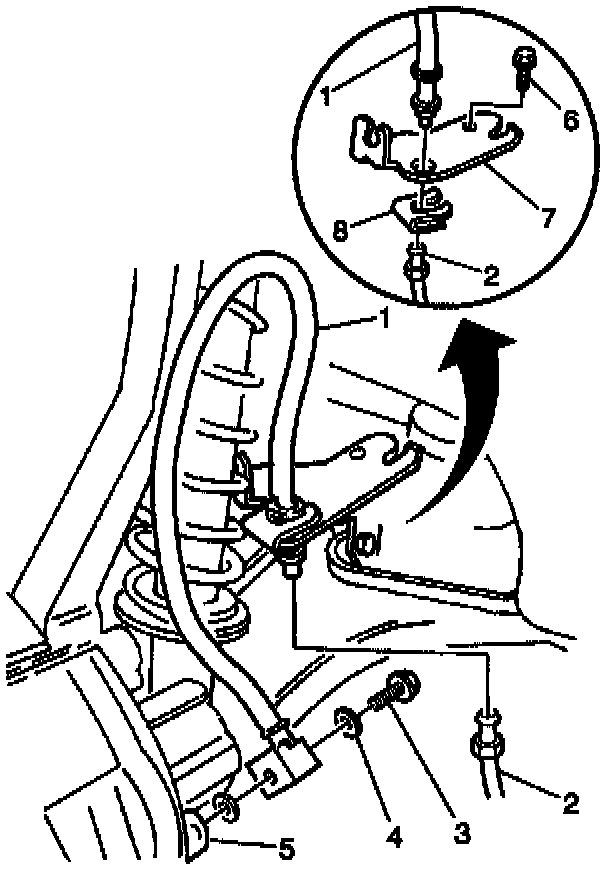

REMOVAL PROCEDURE
1. Remove the tire and wheel.
2. Clean all dirt and foreign material from the front brake hose and the front brake hose fitting (4).
3. Remove the front brake pipe from the front brake hose. Use a backup wrench on the hose fitting. Do not bend the front brake hose bracket (2) or front brake pipe.
4. Remove the brake hose retainer from the hose fitting at the brake hose bracket.
5. Remove the brake hose (4) from the brake hose bracket (2).
6. Remove the following components from the front brake caliper (5):
^ The brake hose fitting (4)
^ The brake hose bolt (3)
^ Two brake hose fitting gaskets Discard the two old brake hose fitting gaskets.

INSTALLATION PROCEDURE
1. Lubricate the brake hose bolt (3) threads with clean brake fluid.
2. Install the following components to the front caliper (5):
^ The brake hose fitting (4)
^ The brake hose bolt (3)
^ Two new brake hose fitting gaskets

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Ensure that the hose fitting flange engages the front caliper orientation ledge.

Tighten the front brake hose bolt (3) to 40 Nm (30 ft. lbs.).

4. Install the brake hose into the brake hose bracket (2). Ensure that there are no kinks in the brake hose.
5. Install the brake hose retainer at the brake hose bracket.
6. Install the front brake pipe to the brake hose.
7. Install the brake hose retainer.
8. Secure the retainer to the brake hose bracket using the screw.
^ Use a backup wrench on the hose fitting. Ensure that the brake hose does not contact any part of the suspension.
^ Inspect the hose in the extreme right and extreme left turn conditions.

Tighten the front brake hose clip bold screw (6) to 13 Nm (115 inch lbs.).

9. Bleed the brake hydraulic system. Refer to Hydraulic Brake System Bleeding.
10. Install the tire and the wheel.
