Home >> Chevrolet >> 1998 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Without Traction Control

Without Traction Control

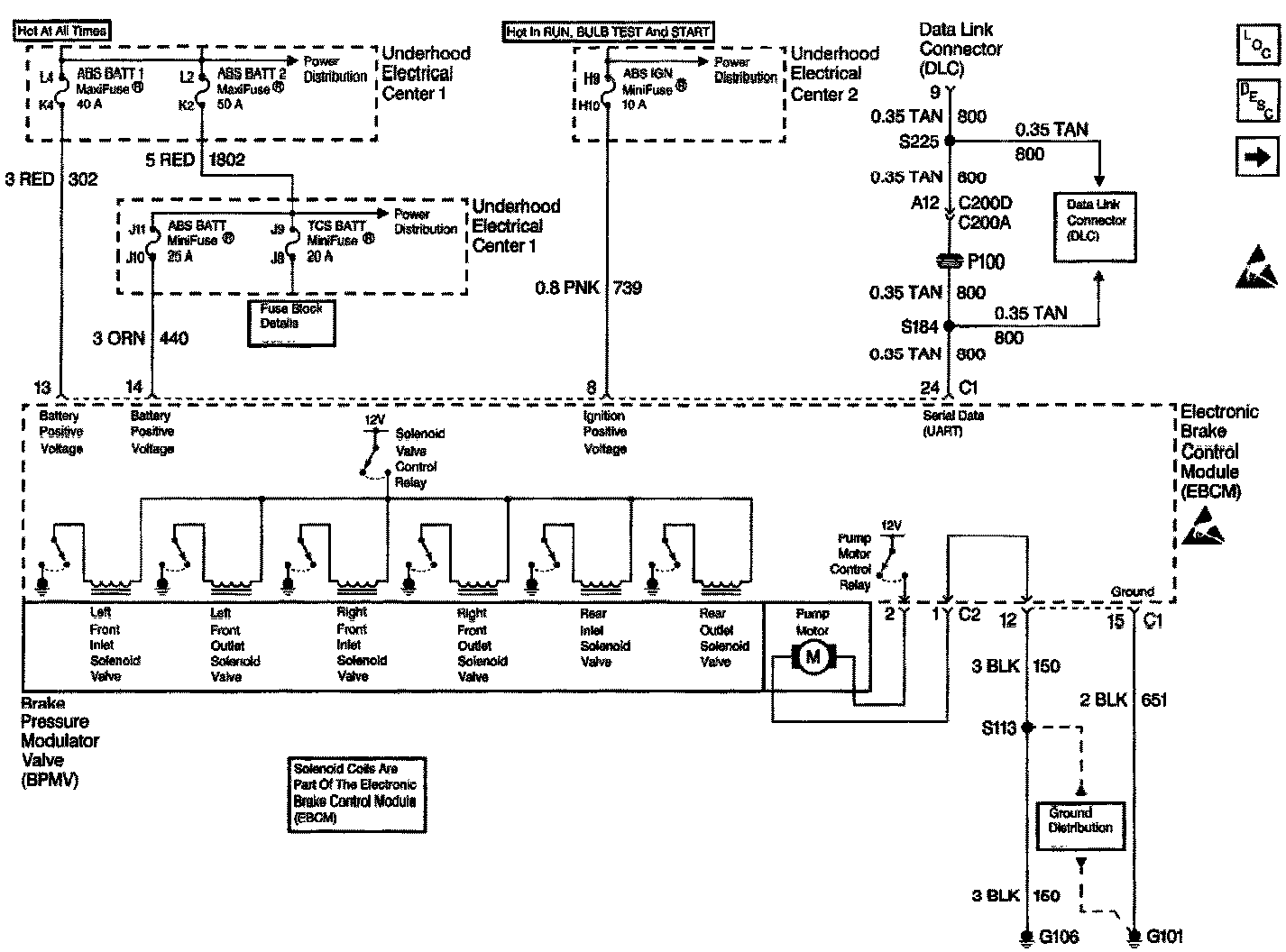

Part 1 Of 3:

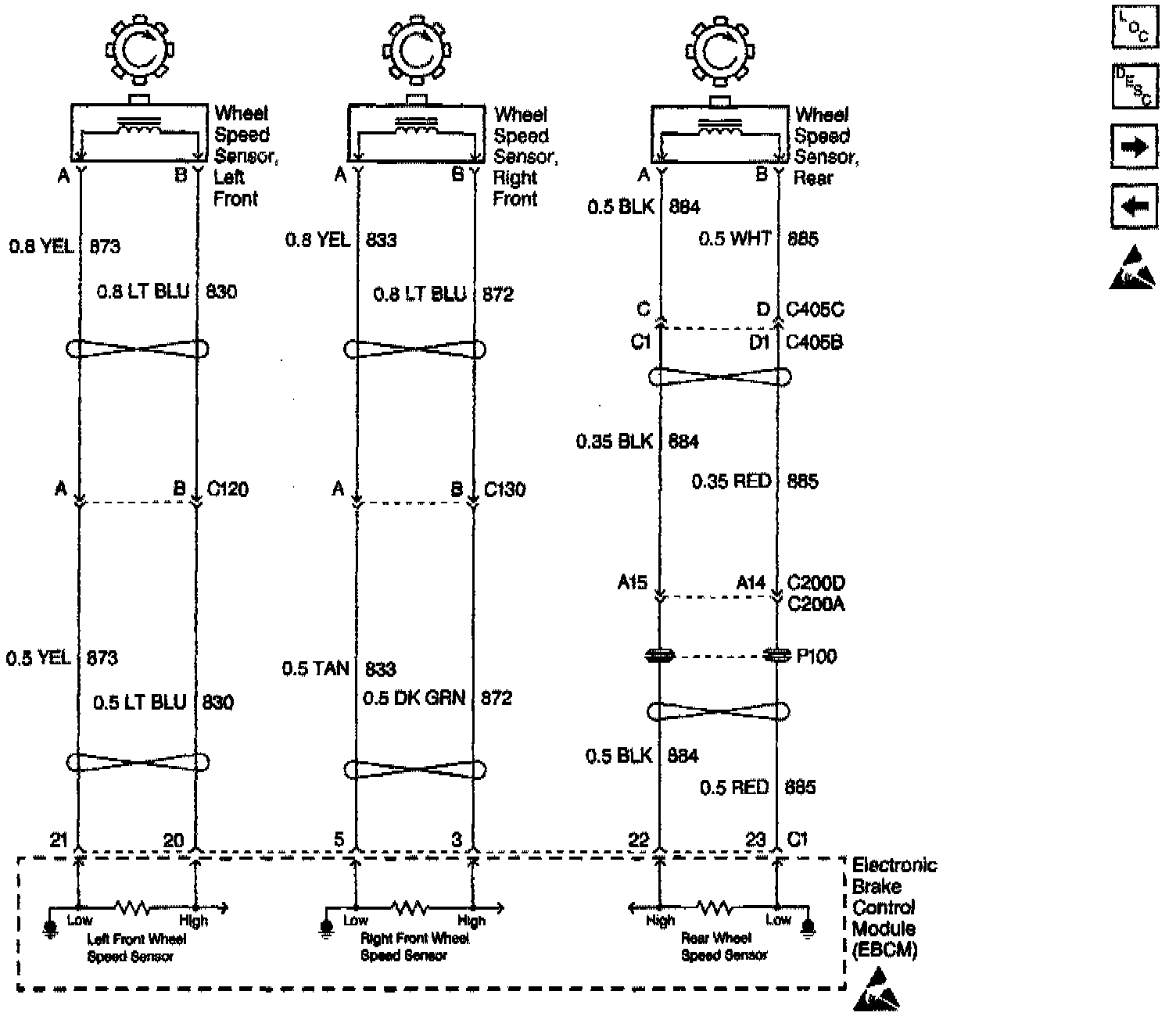

Part 2 Of 3:

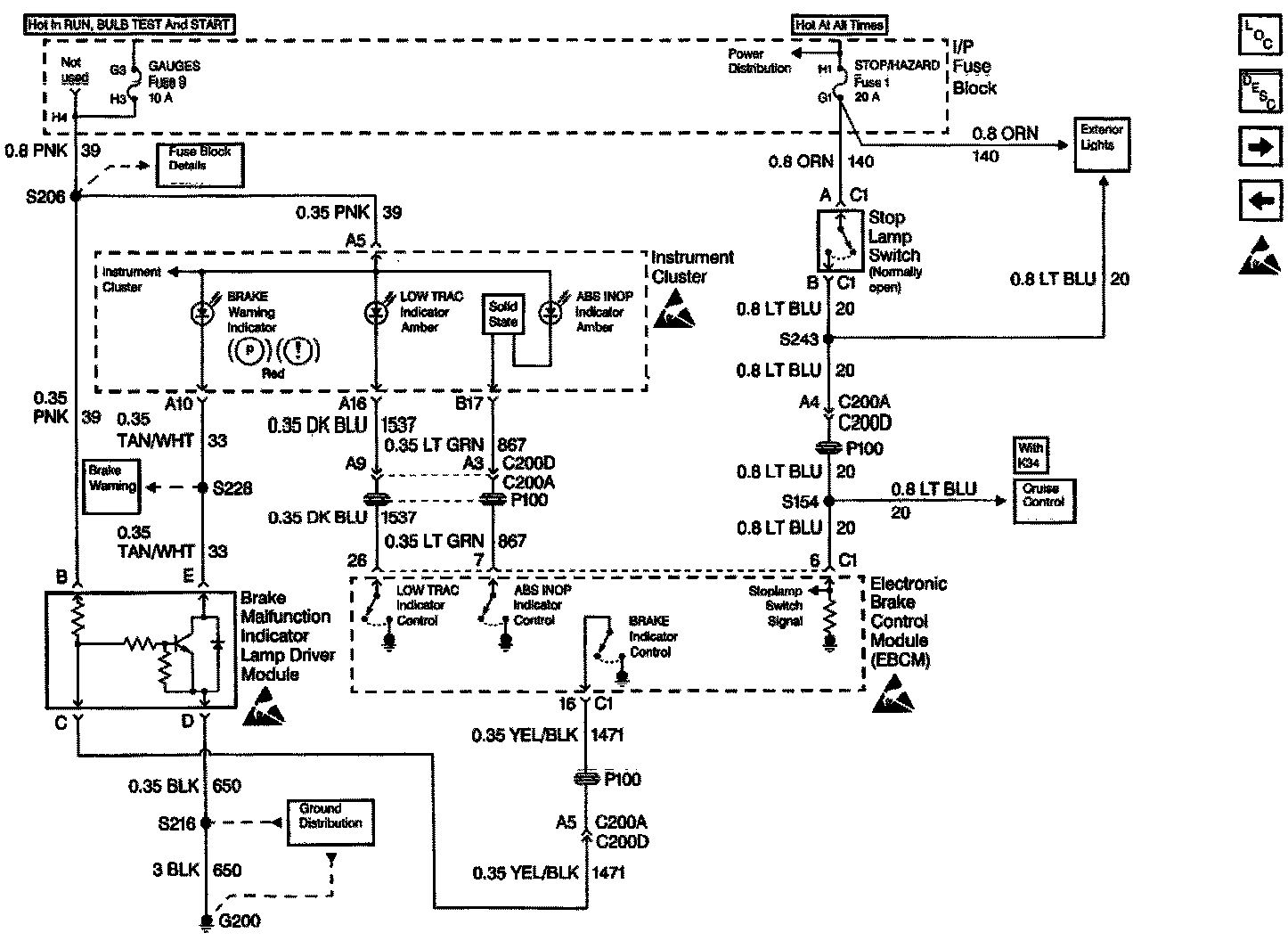

Part 3 Of 3:
