Chevrolet
>>
1998
>>
Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

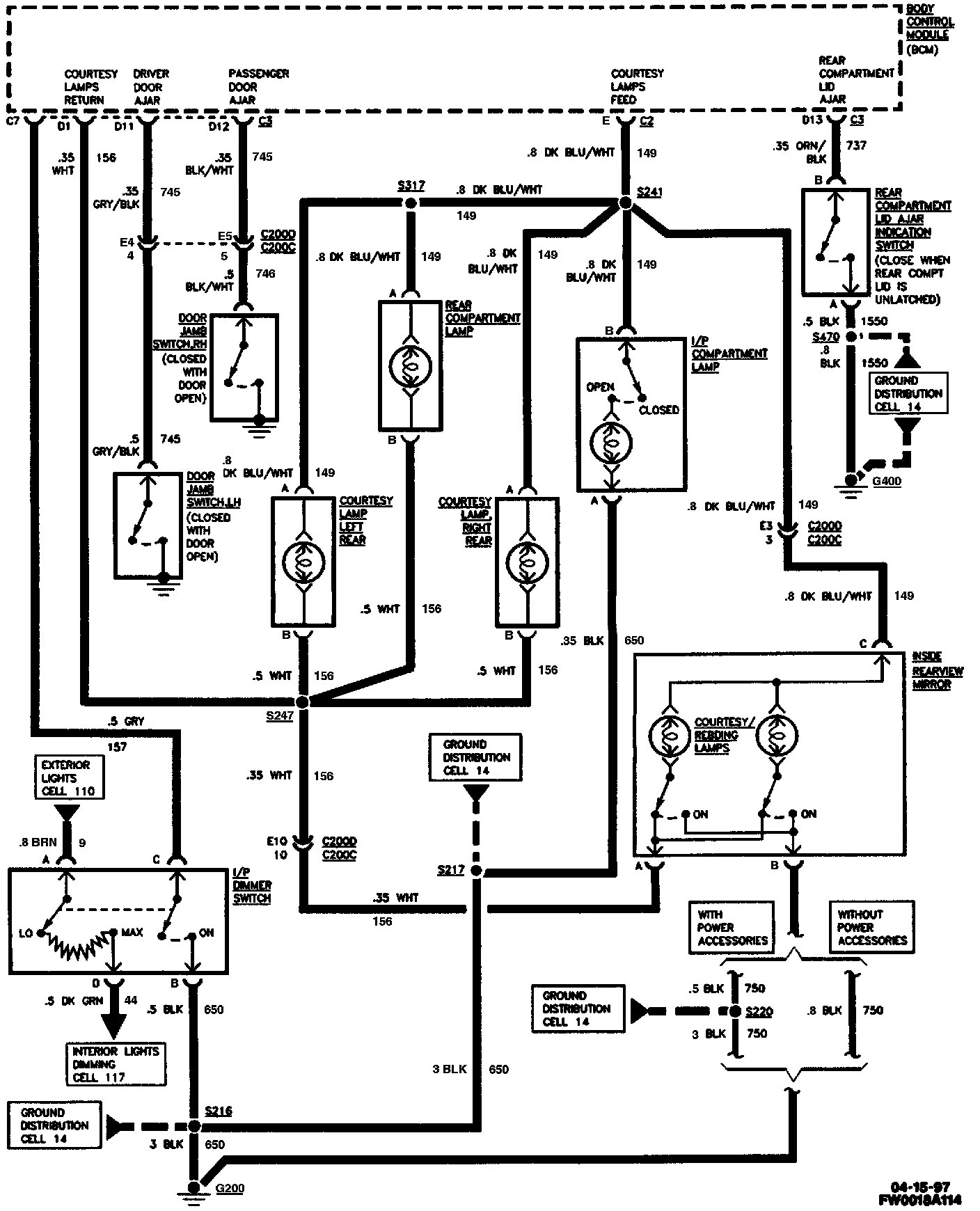

Keyless Entry (Part 1 Of 4):

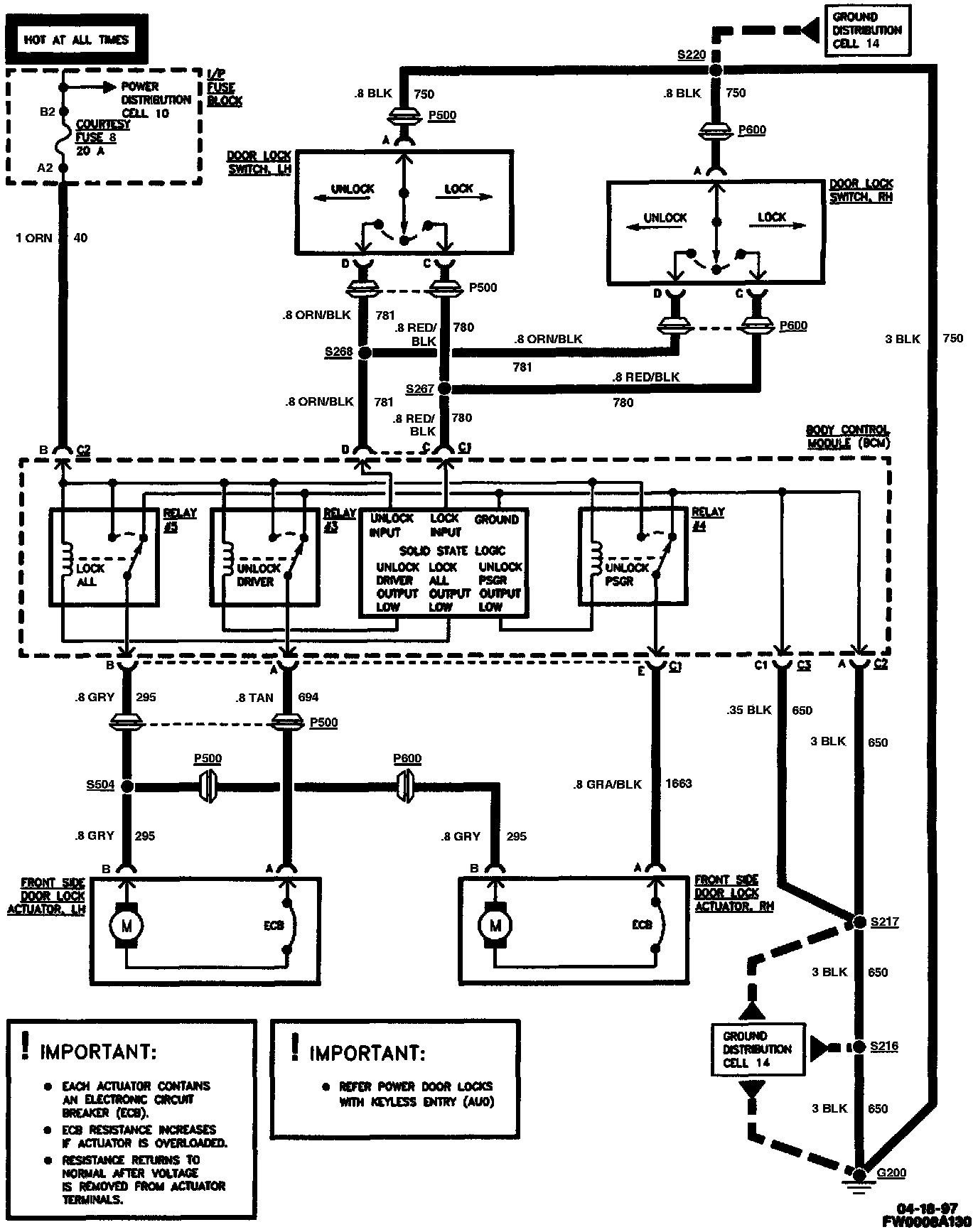

Keyless Entry (Part 2 Of 4):

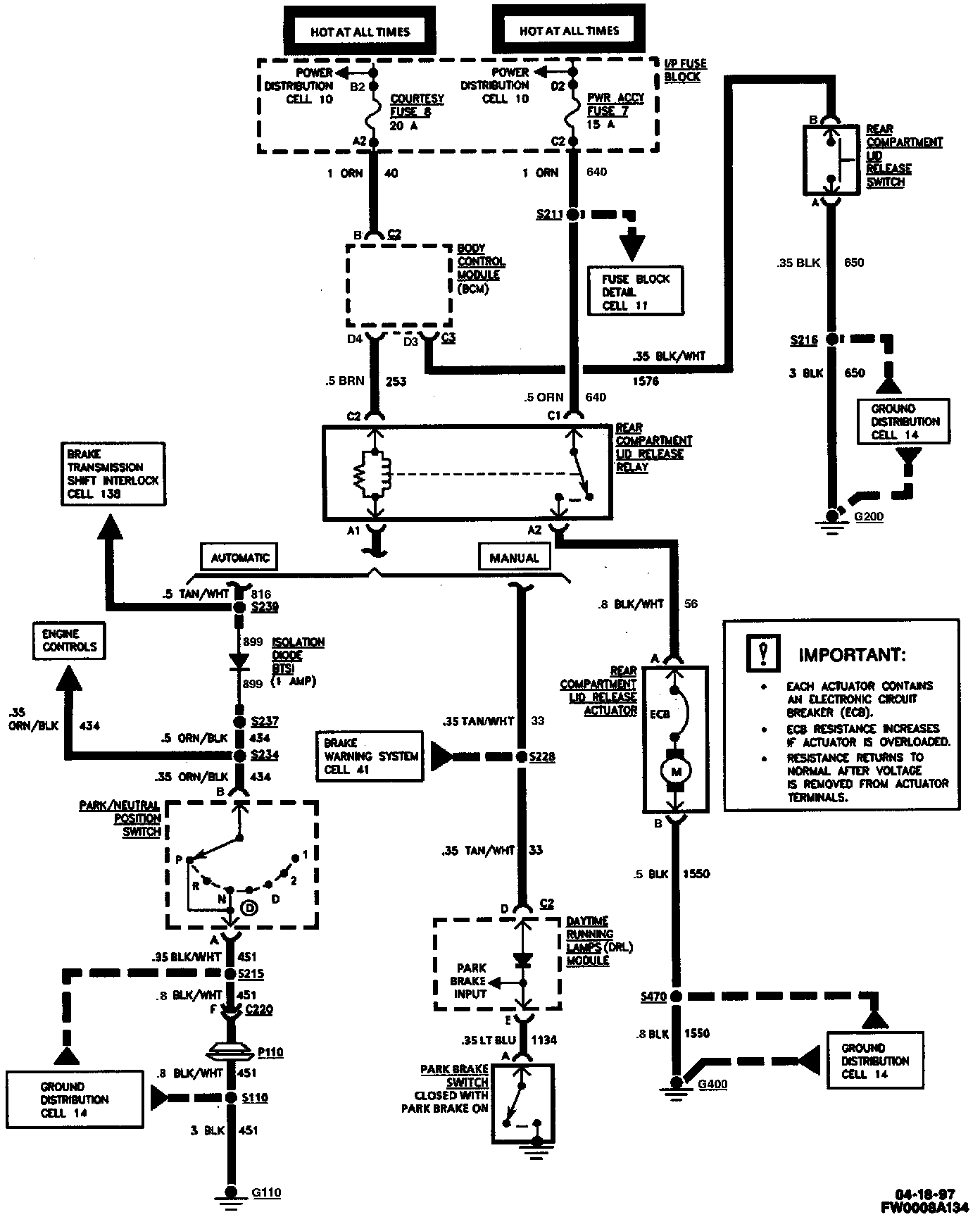

Keyless Entry (Part 3 Of 4):

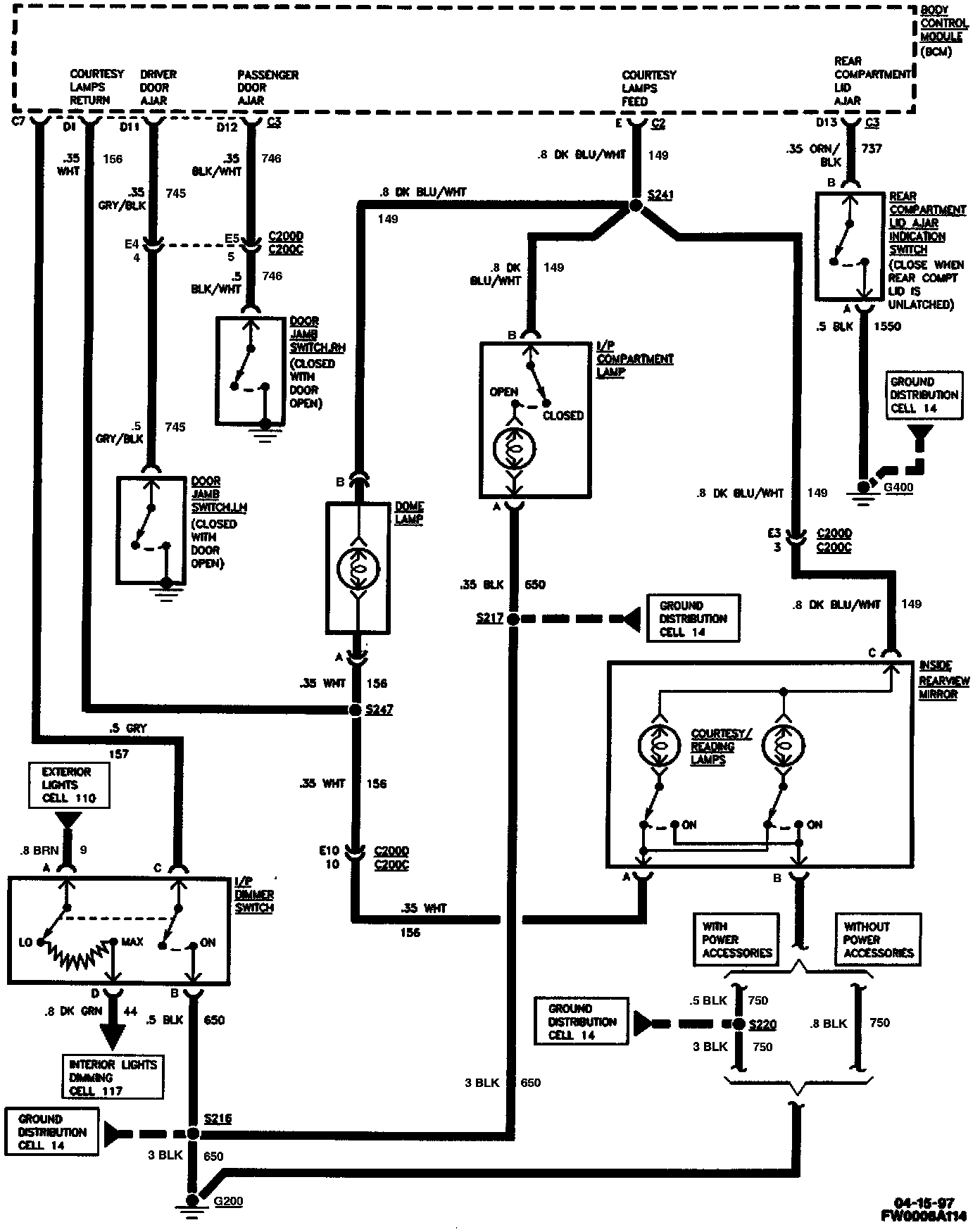

Keyless Entry (Part 4 Of 4):
