Instrument Panel Compartment Latch Replacement

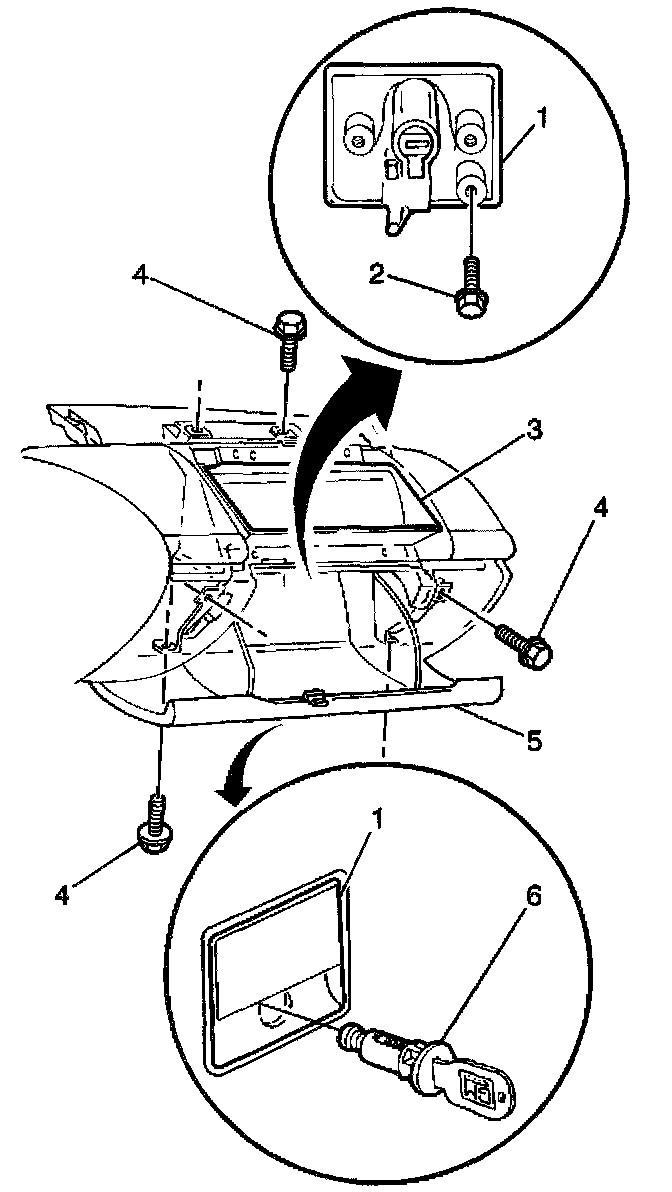

REMOVAL PROCEDURE
1. Open the I/P compartment door (5).
2. Remove the I/P compartment door latch bolts (2) and bracket.
3. Remove the I/P compartment door latch (1).

INSTALLATION PROCEDURE
1. Install the I/P compartment door latch (1).
2. Align and install the I/P compartment door latch bracket and bolts (2).

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Tighten the I/P compartment door latch bolts (2).

Tighten
Tighten the I/P compartment door latch bolts (2) to 1.9 N.m (17 lb in).

4. Close the I/P compartment door (5).
