Drink Holders: Service and Repair

REMOVAL PROCEDURE
1. Remove the front floor console.

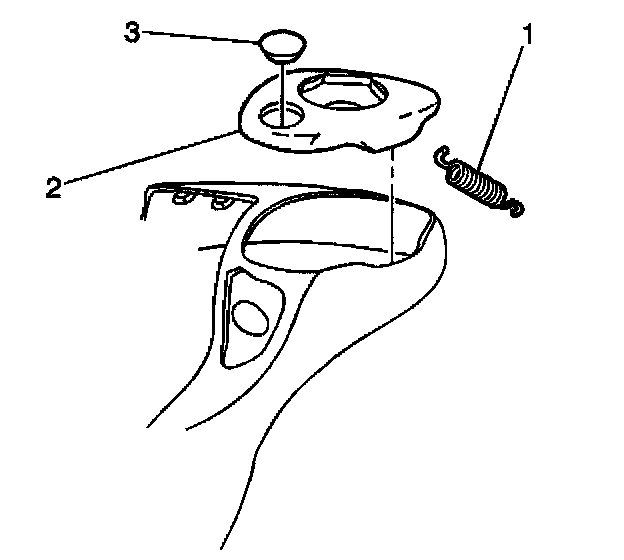

2. Lay the console upside-down on a work surface.
3. Remove the cup holder screw.
4. Remove the cup holder (2).
5. Remove the cup holder spring (1), if necessary.

INSTALLATION PROCEDURE
1. Install the cup holder spring (1), if necessary.
2. Install the cup holder (2).

NOTE: Refer to Fastener Notice in Cautions and Notices

3. Install the cup holder screw.

Tighten
Tighten the cup holder screw to 1.9 N.m (17 lb in).

4. Install the front floor console.
